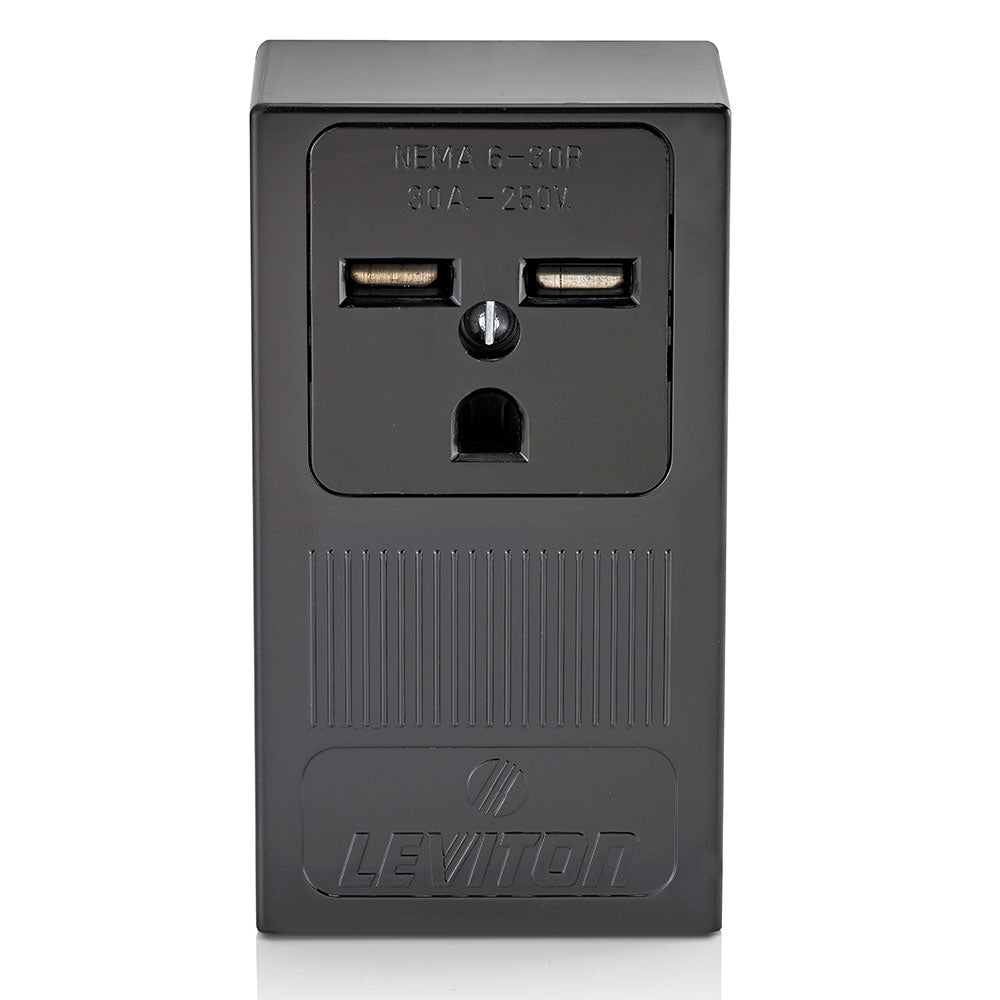

Leviton 5376 | 30 Amp, 250 Volt, NEMA 6-30R, 2P, 3W, Surface Mtg Re...
Description
Description
30 Amp, 250 Volt, NEMA 6-30R, 2P, 3W, Surface Mtg Receptacle, Straight Blade, Industrial Grade, Grounding, , Side Wired, Steel Strap, - Black
Leviton’s line of Extra Heavy-Duty Industrial Grade receptacles are designed and manufactured to withstand the harsh conditions typically associated with industrial environments. Available in a wide variety of configurations, including isolated ground, tamper-resistant, hospital grade, etc., these Industrial Grade devices are the electrical contractor's choice for use in factories, schools, hospitals and commercial office buildings.
Product Features
| Color: | Black |
|---|---|
| NEMA: | 6-30R |
Specifications
Specifications
AC Horsepower Ratings
| At Rated Voltage: | 2 HP |
|---|
Electrical Specifications
| Amperage: | 30 A |
|---|---|
| Current Limiting: | Full Rated Current |
| Dielectric Voltage: | Withstands 2000V per UL498 |
| Grounding: | Grounding |
| Pole: | 2 |
| Temperature Rise: | Max 30C after 50 cycles OL at 150 percent rated current |
| Voltage: | 250 VAC |
| Wire: | 3 |
Environmental Specifications
| Flammability: | Rated V-2 per UL 94 |
|---|---|
| Operating Temperature: | -40°C to 60°C |
Material Specifications
| Body Material: | Thermoplastic |
|---|---|
| Color: | Black |
| Face Material: | Thermoplastic |
| Strap Material: | Galvanized Steel |
Mechanical Specifications
| Product ID: | Ratings are permanently marked on device |
|---|---|
| Terminal Accom.: | Up to 4 AWG |
| Terminal ID: | Brass-Hot, Green-Ground, Silver-Neutral |
Standards and Certifications
| ANSI: | C-73 |
|---|---|
| CSA C22.2 No. 42: | File 152105 |
| NEMA: | WD-6 |
| NOM: | 57 |
| UL498: | File E13399 |
| Warranty: | 10-Year Limited |
