Leviton 5490-W | 4-in-1 Surge Protective Quadruplex Receptacle Outl...
Description
Description

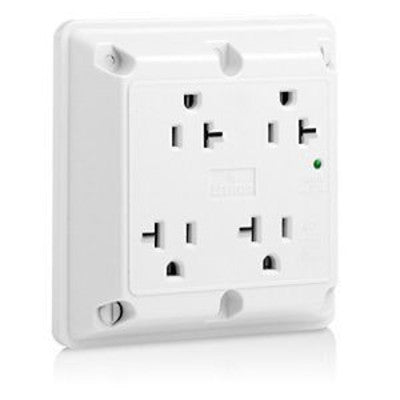

4-in-1 Surge Protective Quadruplex Receptacle Outlet, Heavy-Duty Industrial Specification Grade, 20 Amp, 125 Volt, Side Wire, NEMA 5-20R, 2-Pole, 3-Wire - White
Leviton’s Surge Protection Devices can be used individually or as part of a coordinated application strategy, to protect sensitive electronic equipment, in industrial, commercial and residential locations, from the stress and degradation inflicted by voltage transients. Leviton Surge Protection Devices are compliant with UL 1449 Standards. Leviton’s outstanding Surge Protection Devices divert damaging voltage transients, or surges, away from electronic equipment. Transients are diverted away from sensitive micro circuitry, providing protection against catastrophic failure, costly downtime and data disruptions.
Product Features
| Body Material: | Nylon |
|---|---|
| Brand: | 4-in-1 |
| Color: | White |
| Device Type: | Quadruplex Receptacle |
| Function: | Surge Protective |
| Grade: | Commercial Specification Grade |
| Grounding: | Grounding |
| NEMA: | 5-20R |
| Noise Rejection: | -30dB at 500kHz-300MHz |
| Termination: | Back or Side Wire |
| UL1449 Impulse 6kV/500A L-N: | 330V |
Specifications
Specifications
AC Horsepower Ratings
| At Rated Voltage: | 1 HP |
|---|
Electrical Specifications
| Amperage: | 20 A |
|---|---|
| Current Limiting: | Full Rated Current |
| Dielectric Voltage: | Withstands 2000V per UL498 |
| Grounding: | Grounding |
| Pole: | 2 |
| Temperature Rise: | Max 30C after 250 cycles OL at 200 percent rated current |
| Voltage: | 125 VAC |
| Wire: | 3 |
Environmental Specifications
| Flammability: | Rated V-2 per UL 94 |
|---|---|
| Operating Temperature: | -40°C to 60°C |
Material Specifications
| Body Material: | Nylon |
|---|---|
| Clamp Nuts: | Zinc-Plated Steel |
| Face Material: | Nylon |
| Ground Clips: | Brass-Plated Steel |
| Grounding Screw: | Brass-Plated Steel |
| Line Contacts: | Brass Triple-Wipe |
| Shutter Mechanism: | Delrin Acetal |
| Terminal Screws: | Brass-Plated Steel |
| Yoke: | Zinc-Plated Steel |
Mechanical Specifications
| Product ID: | Ratings are permanently marked on device |
|---|---|
| Screw Terminal Torque: | 14-18 in-lbs |
| Terminal Accom.: | 14-10 AWG |
| Terminal ID: | Brass-Hot, Green-Ground, Silver-Neutral |
| Termination: | Back or Side Wire |
| Torque Range: | 14-16 inch pounds |
Performance Data
| Diagnostics: | Indicator Light |
|---|---|
| Joules Rating: | 720 |
| MCOV: | 150V rms |
| Maximum Surge Current, Per Mode (Per Phase): | 27kA (L-N:18kA, L-G:9kA) |
| Noise Rejection: | -30dB at 500kHz-300MHz |
| Nominal Discharge Current Rating: | 3kA |
| Short Circuit Current Rating: | 5kA |
| UL1449 Impulse 6kV/500A L-N: | 330V |
| VPR: | L-N:500V, L-G:600V, N-G:500V |
Standards and Certifications
| ANSI: | C-73 |
|---|---|
| Agency Certifications: | UL 498, UL 1449 3rd Edition Listed and CSA C22.2 Certified Type 3 |
| NEMA: | WD-6 |
| NOM: | 57 |
| UL Fed Spec WC-596: | File E13399 |
Warranty
| Warranty: | 5-Year Limited |
|---|
