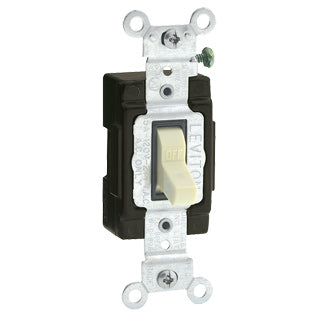

Leviton 5501-LHI | 15 Amp, 120 Volt, Toggle Lighted Handle - Illuminated OFF Single-Pole AC Quiet Switch, Commercial Grade, Grounding, Side Wired, - Ivory
-
Low prices.
Price match guarantee
-
In-House Experts.
We know our products
-
Easy Returns.
Quick & Hassle Free
-
Superior Selection.
Extensive product catalog
Leviton 5501-LHI | 15 Amp, 120 Volt, Toggle Lighted Handle - Illumi...
Description
Description
15 Amp, 120 Volt, Toggle Lighted Handle - Illuminated OFF Single-Pole AC Quiet Switch, Commercial Grade, Grounding, Side Wired, - Ivory
Leviton’s Commercial Specification Grade switches are designed to offer outstanding reliability and top performance in commercial settings. Ideal applications include municipal facilities, government buildings, malls, department stores, hospital and health care facilities, office buildings, schools, colleges, universities, houses of worship and cultural institutions. Leviton offers a large selection of 15 and 20 Amp Commercial switches, available in a wide variety of colors, wiring options and other features.
Product Features
| Color: | Ivory |
|---|---|
| Device Type: | Toggle Switch |
| Feature: | Illuminated - Load OFF |
| Function: | Single-Pole |
| Grade: | Commercial Specification Grade |
Specifications
Specifications
Electrical Specifications
| Amperage: | 15 A |
|---|---|
| Dielectric Voltage: | Withstands 1500V for 1 minute |
| Temperature Rise: | Maximum 30 degrees C rise |
| Voltage: | 120 VAC |
Environmental Specifications
| Flammability: | Rated V-2 per UL 94 |
|---|---|
| Operating Temperature: | -40°C to 65°C |
Material Specifications
| Actuator Material: | Polycarbonate |
|---|---|
| Base Material: | PBT |
| Body Material: | Thermoplastic |
| Color: | Ivory |
| Contacts: | Silver-Cadmium .031 Thick |
| Cover Material: | Nylon |
| Strap Material: | Steel |
| Terminal Screws: | Steel 8-32 |
| Toggle: | Polycarbonate |
Mechanical Specifications
| Product ID: | Stamped on Strap |
|---|---|
| Terminal Accom.: | 14-12 AWG |
| Terminal ID: | Brass-Hot, Green-Ground, Silver-Neutral |
| Termination: | Side Wire |
| Torque Range: | 12-14 inch pounds |
Standards and Certifications
| ANSI: | C-73 |
|---|---|
| CSA C22.2 No. 111: | File #152105 |
| NEMA: | WD-1 & WD-6 |
| NOM: | 57 |
| UL Fed Spec WS896E: | File #E7458 |
| UL Standard: | UL 20 |
