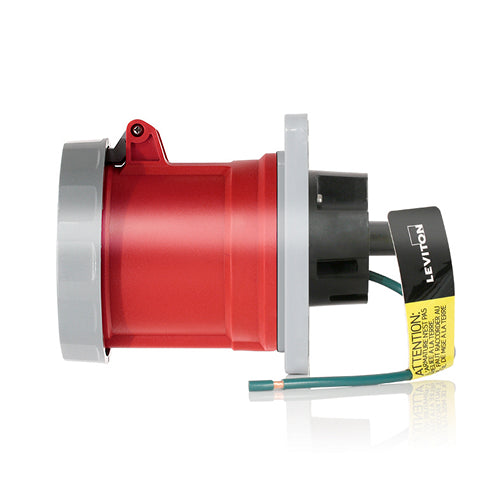

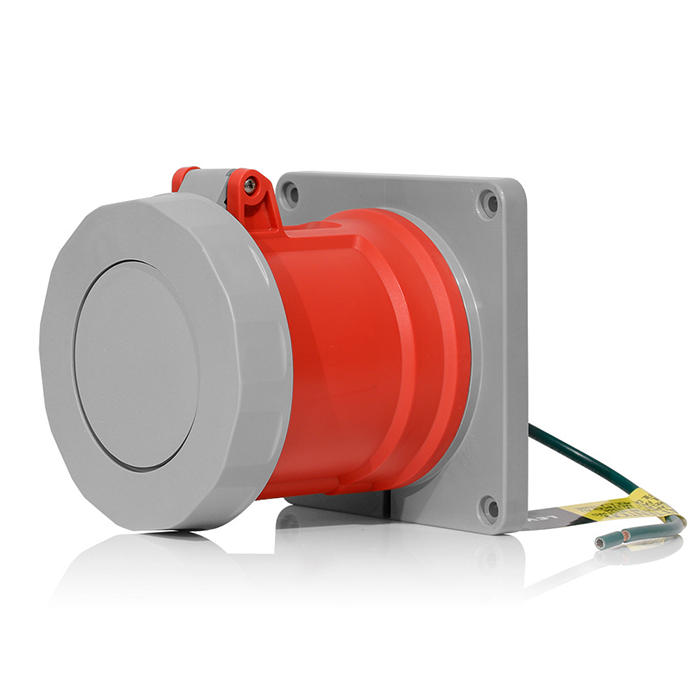

Leviton 560R7WLEV | Lev Series Iec Pin & Sleeve Receptacle
Regular price
$531.48
Unit price
Brand: Leviton Manufacturing Co
|
SKU:
9872114
Regular price
$531.48
Unit price
Description
Description
Leviton 560R7WLEV | Lev Series Iec Pin & Sleeve Receptacle
60 Amp, 277/480 Volt 3-Phase, 4P, 5W, LEV Series North American-Rated IEC 60309-1 & 60309-2 Pin & Sleeve Receptacle, Industrial Grade, IP66/IP67/IP68/IP69K, Watertight - Red LEV Series IEC 60309 Pin & Sleeve Devices are designed to simplify your installation, endure the harshest environments and improve safety and productivity:Leviton Pin & Sleeve devices are UL listed components and suitable for use in prefabricated wiring assemblies when wired in accordance with UL1007
Leviton - 560R7WLEV - Features
- Nickel-plated pins and sleeves are self-cleaning and corrosion-resistant
- Superior watertight ratings including IP69K for washdown/outdoor applications and industry exclusive IP68 for long-term submersion
- NSF certified sanitary design trusted for use in food & beverage facilities
Specifications
Specifications
Leviton - 560R7WLEV - Specifications
| Country of Origin | Mexico |
|---|---|
| UPC Code | 78477901564 |
| Armored/Unarmored | For Use With Unarmored Cable |
| Explosion Proof | No |
| Material | Plastic |
| UNSPSC Code | 39121400 |
| Amperage | 60 A |
| Cable Clamp Screw Torque | 10 in-lb |
| Conductor Range | #8 AWG to #2 AWG |
| Crush Test | 250 lbs for 1 min after -25°C for 6 hrs |
| Phase | 3-Phase |
| Pole | 4 |
| Screw Terminal Torque | 50 in-lb |
| Voltage | 277/480 VAC |
| Color | Red |
