Brand: Leviton Manufacturing Co
|
SKU:
10020212

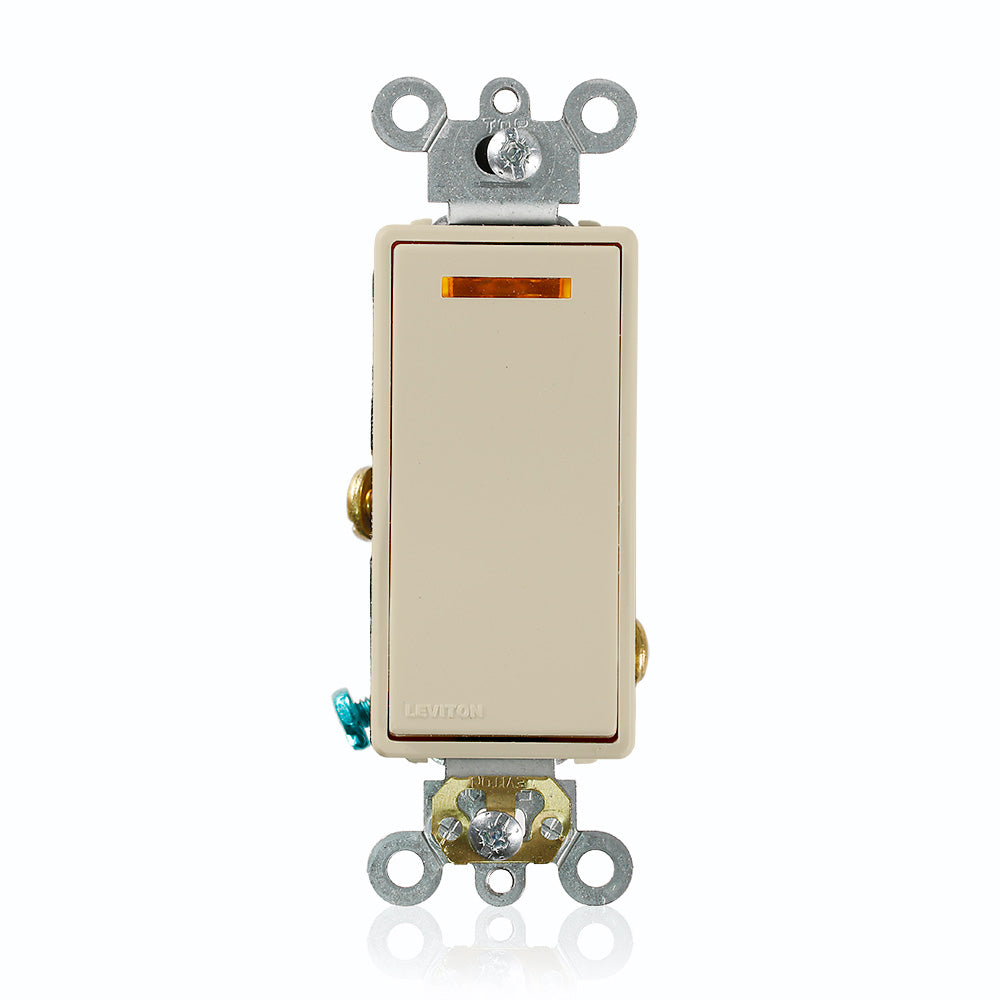

Leviton 5631-2I | 20 Amp, 120 Volt, Decora Plus Rocker Lighted Handle - Illuminated OFF Single-Pole AC Quiet Switch
Regular price
$22.20
Unit price
-
Low prices.
Price match guarantee
-
In-House Experts.
We know our products
-
Easy Returns.
Quick & Hassle Free
-
Superior Selection.
Extensive product catalog
Leviton 5631-2I | 20 Amp, 120 Volt, Decora Plus Rocker Lighted Hand...
Regular price
$22.20
Unit price
Brand: Leviton Manufacturing Co
|
SKU:
10020212
Regular price
$22.20
Unit price
Description
Description
20 Amp, 120 Volt, Decora Plus Rocker Lighted Handle - Illuminated OFF Single-Pole AC Quiet Switch, Commercial Spec Grade, Self Grounding, Back & Side Wired, - Ivory. Decora brand Plus devices combine designer styling with all the benefits of rugged Commercial Grade construction. The robust product offering includes: single pole, double pole, 3 and 4-way switches, momentary and maintained contact switches, as well as pilot light and illuminated switches.
Product Features
| Body Material: | Thermoplastic |
|---|---|
| Brand: | Decora Plus |
| Color: | Ivory |
| Device Type: | Rocker Switch |
| Feature: | Illuminated - Load OFF |
| Function: | Single-Pole |
| Grade: | Commercial Specification Grade |
| Grounding: | Self-Grounding |
| Voltage: | 120 VAC |
Specifications
Specifications
AC Horsepower Ratings
| HP Rating: | 1HP-120V |
|---|---|
| Max. Amperage: | 16 Amp |
Electrical Specifications
| Amperage: | 20 A |
|---|---|
| Dielectric Voltage: | Withstands 1500V for 1 minute |
| Endurance: | 50,000 cycles minimum |
| Grounding: | Self-Grounding |
| Overload UL20 Test: | 100 cycles of OL at 4.8 times rated current |
| Temperature Rise: | Maximum 30 degrees C rise |
| Voltage: | 120 VAC |
Environmental Specifications
| Flammability: | Rated V-2 per UL 94 |
|---|---|
| Operating Temperature: | -40°C to 65°C |
Material Specifications
| Actuator Material: | Thermoplastic |
|---|---|
| Body Material: | Thermoplastic |
| Color: | Ivory |
| Strap Material: | Steel |
Mechanical Specifications
| Product ID: | Stamped on Strap |
|---|---|
| Terminal Accom.: | 14-#10 AWG back wired; #14-#12 AWG side wired |
| Terminal ID: | Brass-Hot Black-Hot White-Neutral Green-Gnd |
| Termination: | Back or Side Wire |
| Torque Range: | 12-14 inch pounds |
Standards and Certifications
| ANSI: | C-73 |
|---|---|
| CSA C22.2 No. 111: | File #152105 |
| NEMA: | WD-1 & WD-6 |
| NOM: | 57 |
| UL Standard: | UL 20 |
| Warranty: | 10-Year Limited |
