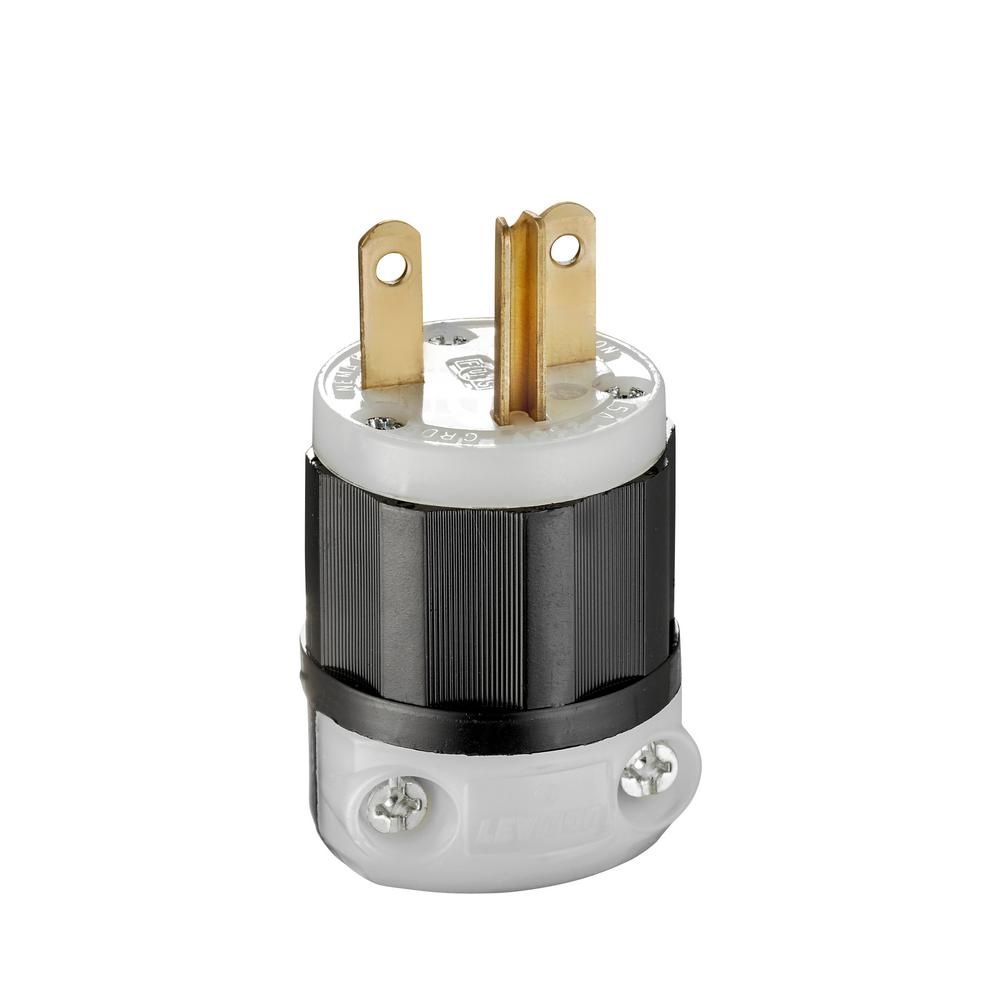

Leviton 5666-C | Straight Blade Plug, 15 Amp, 250 Volt, Industrial Grade - Black & White
Regular price
$23.72
Unit price
Shipping calculated at checkout.
-
Low prices.
Price match guarantee
-
In-House Experts.
We know our products
-
Easy Returns.
Quick & Hassle Free
-
Superior Selection.
Extensive product catalog
Leviton 5666-C | Straight Blade Plug, 15 Amp, 250 Volt, Industrial ...
Regular price
$23.72
Unit price
Brand: Leviton Manufacturing Co
|
SKU:
922836
Regular price
$23.72
Unit price
Shipping calculated at checkout.
Description
Description
15 Amp, 250 Volt, NEMA 6-15P, 2P, 3W, Plug, Straight Blade, Industrial Grade, Grounding - Black/White
Leviton's Black & White line of industrial grade plugs, connectors, flanged inlets, and outlets offer superior performance, long lasting reliability and features that are backed by a lifetime warranty:
- One piece contacts reduce friction and overheating
- Unique cord clamp accepts wide range of cord sizes (.245"-.700")
- Rugged nylon construction resists impact, sunlight, chemicals, and rough use
- Industry exclusive lifetime warranty
- Made proudly in the USA
- Ideal for room air conditioners, unisaws and generators
Product Features
| Brand: | Black and White |
|---|---|
| Color: | Black-White |
| Device Type: | Straight Blade Plug |
| NEMA: | 6-15P |
Specifications
Specifications
Electrical Specifications
| Amperage: | 15 A |
|---|---|
| Current Interrupting: | Certified for current interrupting at full rated current |
| Dielectric Voltage: | Withstands 2000V per UL498 |
| Grounding: | Grounding |
| Pole: | 2 |
| Temperature Rise: | Max 30C after 250 cycles OL at 200 percent rated current |
| Voltage: | 250 VAC |
| Wire: | 3 |
Environmental Specifications
| Environment: | Dry |
|---|---|
| Flammability: | Rated HB or better UL94 |
| Operating Temperature: | -40°C to 60°C |
Material Specifications
| Assembly Screws: | Steel, Zinc Plated |
|---|---|
| Back Cover: | Thermoplastic |
| Blades/Contacts: | Solid Brass |
| Body Material: | Impact Modified Nylon |
| Clamp Insert: | Nylon |
| Color: | Black-White |
| Cord-Clamp: | Nylon |
| Terminal Screws: | Brass |
| Wire Module: | Nylon |
Mechanical Specifications
| Cord Range: | 0.230 to 0.685 |
|---|---|
| Product ID: | Ratings and NEMA I.D. permanently marked on device |
| Terminal Accom.: | 18-10 AWG |
| Terminal ID: | Brass-Hot, Green-Ground, Silver-Neutral |
| Torque Range: | 12-14 in-lbs |
Standards and Certifications
| ANSI: | C-73 |
|---|---|
| CSA C22.2 No. 42: | File LR-406 |
| NEMA: | WD-6 |
| NOM: | 57 |
| UL 498: | File E13399 |
| UL Fed Spec WC-596: | File E13393 |
| Warranty: | Limited Lifetime Warranty Warranty |
