Brand: Leviton Manufacturing Co
|
SKU:
955850

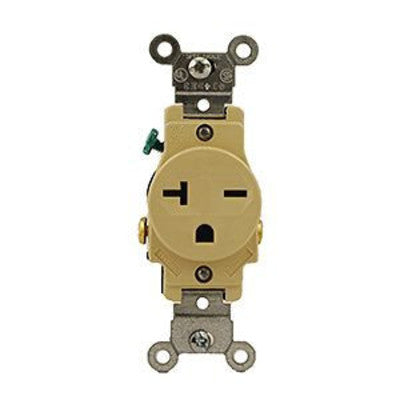

Leviton 5821-I | Single Receptacle Outlet, Commercial Specification Grade, Smooth Face, 20 Amp, 250 Volt, Side Wire, NEMA 6-20R, 2-Pole, 3-Wire - Ivory
Regular price
$6.76
Unit price
Shipping calculated at checkout.
-
Low prices.
Price match guarantee
-
In-House Experts.
We know our products
-
Easy Returns.
Quick & Hassle Free
-
Superior Selection.
Extensive product catalog
Leviton 5821-I | Single Receptacle Outlet, Commercial Specification...
Regular price
$6.76
Unit price
Brand: Leviton Manufacturing Co
|
SKU:
955850
Regular price
$6.76
Unit price
Shipping calculated at checkout.
Description
Description
Single Receptacle Outlet, Commercial Specification Grade, Smooth Face, 20 Amp, 250 Volt, Side Wire, NEMA 6-20R, 2-Pole, 3-Wire - Ivory
Key Features
- Manufactured to Withstand the Demands of Commercial and Institutional Applications
- Heavy Duty Brass Power Contacts for Maximum Conductivity and Plug Retention
- Shallow Design for Maximum Wiring Room in Box
- Made in USA
Product Features
| Amperage: | 20 A |
|---|---|
| Body Material: | Nylon |
| Color: | Ivory |
| Device Type: | Single Receptacle Outlet |
| Face Material: | Nylon |
| Feature: | Smooth Face |
| Grade: | Commercial Specification Grade |
| NEMA: | 6-20R |
| Pole: | 2 |
| Standards and Certifications: | UL/CSA |
| Strap Material: | Steel |
| Termination: | Side Wire |
| Voltage: | 250 VAC |
| Warranty: | 10-Year Limited |
| Wire: | 3 |
Specifications
Specifications
AC Horsepower Ratings
| At Rated Voltage: | 2 HP |
|---|
Electrical Specifications
| Amperage: | 20 A |
|---|---|
| Current Limiting: | Full Rated Current |
| Dielectric Voltage: | Withstands 2000V per UL498 |
| Pole: | 2 |
| Voltage: | 250 VAC |
| Wire: | 3 |
Environmental Specifications
| Flammability: | Rated V-2 per UL 94 |
|---|---|
| Operating Temperature: | -40°C to 60°C |
Material Specifications
| Body Material: | Nylon |
|---|---|
| Face Material: | Nylon |
| Grounding Screw: | Brass 8-32 |
| Line Contacts: | Brass Double Wipe .031 Thick |
| Terminal Screws: | Brass 8-32 |
| Yoke: | Zinc-Plated Steel |
Mechanical Specifications
| Product ID: | Ratings are permanently marked on device |
|---|---|
| Screw Terminal Torque: | 14-18 in-lbs |
| Terminal Accom.: | 14-10 AWG |
| Terminal ID: | Brass-Hot, Green-Ground, White-Neutral |
| Termination: | Side Wire |
Standards and Certifications
| ANSI: | C-73 |
|---|---|
| CSA C22.2 No. 42: | File 152105 |
| NEMA: | WD-1 & WD-6 |
| NOM: | 57 |
| UL Fed Spec WC-596: | File E13399 |
| UL498: | File E13399 |
