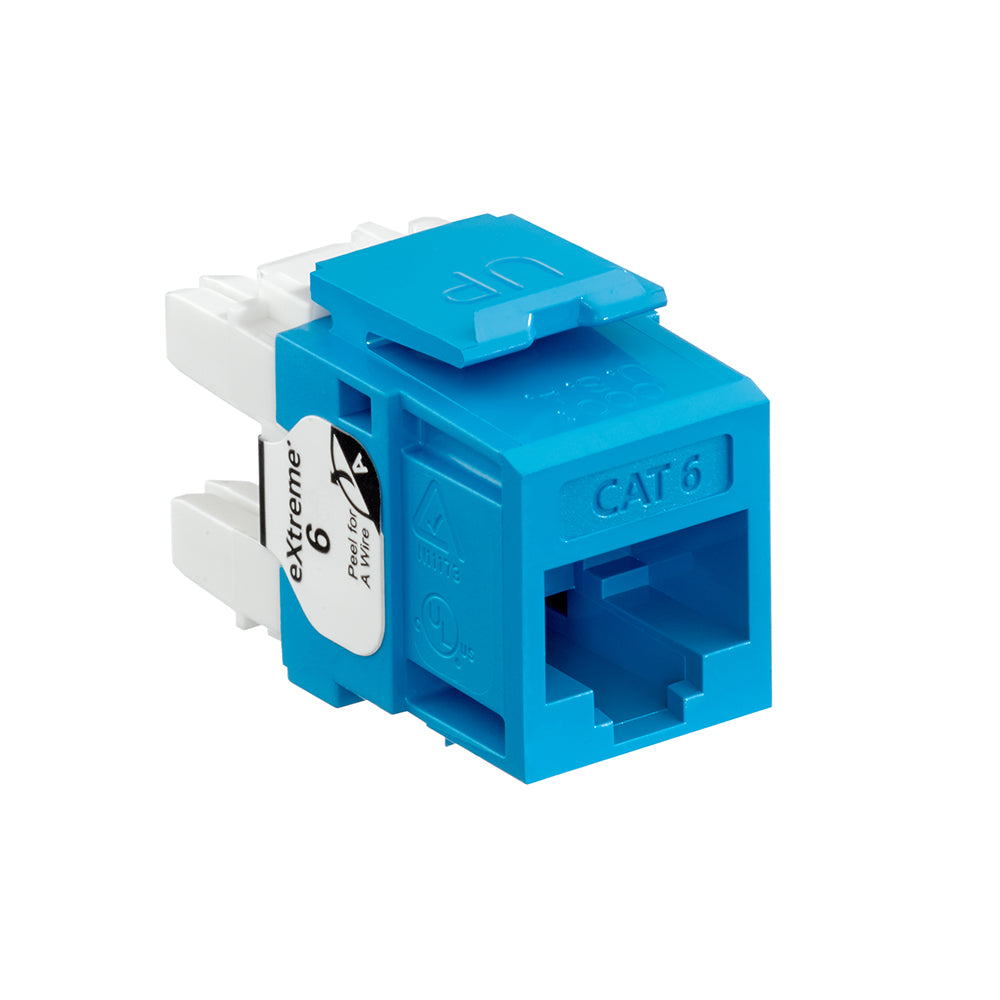

Leviton 61110-RL6 | eXtreme Cat 6 QuickPort Jack, Blue
Regular price
$12.16
Unit price
Brand: Leviton Manufacturing Co
|
SKU:
262466
Regular price
$12.16
Unit price
Description
Description
The eXtreme Category 6 jack is designed to be used with all QuickPort compatible products. The jack includes patented Retention Force Technology which promotes consistent performance over the life of the system. It features unique pair separation towers allowing for quicker and easier terminations. The jack is built on a 180-degree configuration with the punch field in the back, allowing for rear termination.
Product Features
| Body Color: | Blue |
|---|---|
| Brand: | eXtreme |
| Cable Type: | 8-Conductor UTP Copper Cat 5, 5e and 6 |
| Category Rating: | Cat 6 |
| Color: | Blue |
| Connector Feature: | Channel/Component Rated |
| Contact Base Material: | Phosphor Bronze |
| Contact Sub-Surface Material: | 100 microinches thick Nickel-Plated |
| Contact Surface Material: | 50 microinches thick Gold-Plated |
| Flammability: | Rated V-0 per UL 94 |
| Module Style: | Connector |
| Module Type: | Category 6 |
| Packaging: | Single Pack 1/bag |
| Position / Conductor: | 8P8C |
| Shielding: | UTP |
| Standards and Certifications: | TIA/EIA cULus Listed |
| Termination Type: | 110 Punchdown |
| Warranty: | 1 Year Limited |
Specifications
Specifications
Material Specifications
| Body Color: | Blue |
|---|---|
| Body Material: | High-Impact Fire-Retardant Plastic |
| Contact Base Material: | Phosphor Bronze |
| Contact Sub-Surface Material: | 100 microinches thick Nickel-Plated |
| Contact Surface Material: | 50 microinches thick Gold-Plated |
Mechanical Specifications
| Cable Type: | 8-Conductor UTP Copper Cat 5, 5e and 6 |
|---|---|
| Connector Feature: | Channel/Component Rated |
| Position / Conductor: | 8P8C |
| Product ID: | Permanently laser-engraved |
| Style Name: | eXtreme |
| Termination Type: | 110 Punchdown |
| Wiring Standard: | T568A T568B |
Performance Specifications
| Module Type: | Category 6 |
|---|
Standards and Certifications
| CSA: | Certified |
|---|---|
| FCC: | Part 68 Compliant |
| NEC: | Article 800 Compliant |
| TIA/EIA: | TIA-568-B |
| UL: | cULus Listed |
