Brand: Leviton Manufacturing Co
|
SKU:
1049643

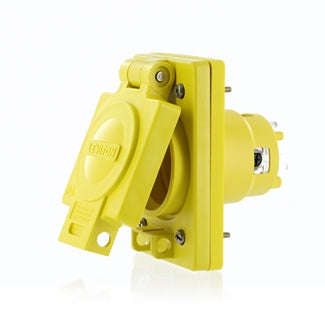

Leviton 68W48 | 30 Amp, 250 Volt, NEMA L6-30 , 2P, 3W, Single Locking Inlet with IP66 Rated Cover
Regular price
$211.50
Unit price
Shipping calculated at checkout.
-
Low prices.
Price match guarantee
-
In-House Experts.
We know our products
-
Easy Returns.
Quick & Hassle Free
-
Superior Selection.
Extensive product catalog
Leviton 68W48 | 30 Amp, 250 Volt, NEMA L6-30 , 2P, 3W, Single Locki...
Regular price
$211.50
Unit price
Brand: Leviton Manufacturing Co
|
SKU:
1049643
Regular price
$211.50
Unit price
Shipping calculated at checkout.
Description
Description
30 Amp, 250 Volt, NEMA L6-30 , 2P, 3W, Single Locking Inlet with IP66 Rated Cover, Industrial Grade, Grounding, Corrosion Resistant, Wetguard - YELLOW.
Product Features
| Brand: | Wet guard |
|---|---|
| Color: | Yellow |
| Device Type: | Locking Inlet |
| NEMA: | L6-30P |
Specifications
Specifications
Electrical Specifications
| Amperage: | 30 A |
|---|---|
| Current Limiting: | Full Rated Current |
| Dielectric Voltage: | Withstands 2000V per UL498 |
| Grounding: | Grounding |
| Pole: | 2 |
| Temperature Rise: | Max 30C after 250 cycles OL at 200 percent rated current |
| Voltage: | 250 VAC |
| Wire: | 3 |
Environmental Specifications
| Enclosure Rating: | NEMA 4, 4X, 12 IEC IP66 |
|---|---|
| Environment: | Wet |
| Flammability: | Rated V-2 per UL 94 (wiring module) |
| Operating Temperature: | -40°C to 60°C |
Material Specifications
| Blades/Contacts, Terminal Clamps: | Electroless Nickel-coated Brass |
|---|---|
| Cover Gasket: | Santorini TPV |
| Cover/Lid: | Valox PBT |
| Mounting & Assembly Screws: | Stainless steel, non-magnetic |
| Terminal Screws: | Electroless Nickel-coated Brass |
| Torsion Spring Mechanism (Flip Lids): | Stainless Steel |
| Wiring Module: | Nylon |
| Wiring Module Mounting Cup: | Valox PBT |
Mechanical Specifications
| Product ID: | Ratings and NEMA I.D. permanently marked on device |
|---|---|
| Terminal Accom.: | #12 AWG to #8 AWG |
Standards and Certifications
| ANSI: | C-73 |
|---|---|
| CSA: | C22.2 No. 42 |
| NEMA: | WD-6 |
| NOM: | 57 |
| UL: | 498 |
| Warranty: | Lifetime Limited |
