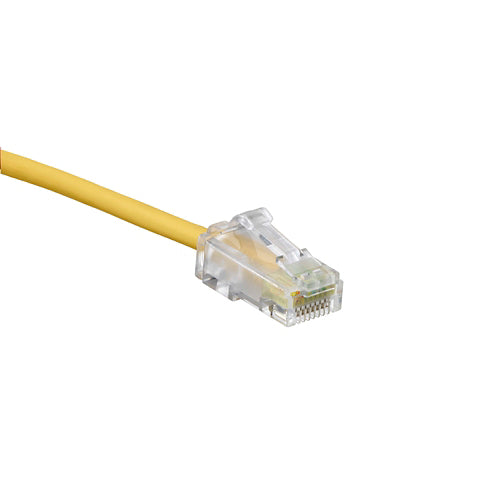

Leviton 6H460-07Y | Cat 6 Small Diameter High-Flex Patch Cord, 7 Ft (2.1 M), Yellow

Cat 6 Small Diameter High-Flex Patch Cords are designed to be used in 1-Gigabit applications and all frequencies from 1 to 250 MHz. Patch cords offer flexible, high-density patching. Cables support high-speed data applications. They reduce patch cord density in a 24-port patch panel by 38 percent when compared to typical Cat 6 patch cords.

Leviton - 6H460-07Y - Features

• Power over Ethernet (PoE and PoE+) compatible
• Accommodate use in high-density switches, routers, and other electronics
• Bend radius is a narrow 0.60 Inch, versus 1.0 Inch for typical CAT 6 patch cords
• Designed to provide connectivity solution for 1 Gigabit applications
• Channel length - Supports 96 m channels that include 90 m permanent links
• Channel length - Supports 93 m channels with 10 m of patch cords included in the channel
• Patch cords shall be 28-gauge, unshielded, twisted pair, stranded conductor construction with a standard 8-position modular plug on both ends
• Plug contacts shall be plated with minimum of 50 um of gold
• Available in white, yellow, gray, black, red, green, and blue
• Available in stock lengths of 6 inches (0.15m) and 1-20 feet (0.30 - 6.0m) in 1-foot (0.3m) increments
• Snagless plug design with integrated strain-relief
• Dual-rated cable jacket (CM/LSZH)
• Accepts clip-on colored boot markers for network identifications
• Compatible with Leviton Secure RJ system
• Supports Power over Ethernet (PoE) applications defined by IEEE 802.3bt PoE Type 1 (15.4 Watts) formerly 802.3af, Type 2 (30 Watts) formerly 802.3at, Type 3 (60 Watts), Type 4 (90 Watts), Cisco UPoE (60 Watts), UPoE+ (90 Watts), and Power over HDBaseT™ PoH (95 Watts)

---

Leviton - 6H460-07Y - Specifications

Category	Category 6
Color	Yellow
Type	Patch Cords
Connector Type	Plug Modules To Jack Modules
Lengths	7 Ft. | 2.13 M
Shielded	S/Utp - Screened/Unshielded Twisted Pair
UNSPSC Code	43223303

---
