Leviton 7310-B | 20 Amp, 125/250 Volt, Non-NEMA, 3P, 3W, Flush Moun...
Description
Description

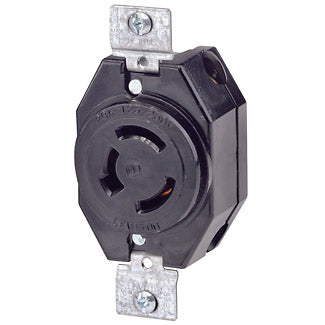

20 Amp, 125/250 Volt, Non-NEMA, 3P, 3W, Flush Mounting Locking Receptacle, Industrial Grade, Non-Grounding - BLACK
Leviton’s line of Extra Heavy-Duty Industrial Grade locking receptacles are designed and manufactured to withstand the harsh conditions typically associated with industrial environments. Available in a wide variety of configurations, including isolated ground, tamper-resistant, hospital grade, etc., these Industrial Grade devices are the electrical contractor's choice for use in factories, schools, hospitals and commercial office buildings.
Product Features
| Color: | Black |
|---|
Specifications
Specifications
Electrical Specifications
| Amperage: | 20 A |
|---|---|
| Current Limiting: | Full Rated Current |
| Dielectric Voltage: | Withstands 2000V per UL498 |
| Grounding: | Non-Grounding |
| Pole: | 3 |
| Temperature Rise: | Max 30C after 250 cycles OL at 200 percent rated current |
| Voltage: | 125/250 VAC |
| Wire: | 3 |
Environmental Specifications
| Environment: | Dry |
|---|---|
| Flammability: | Rated V-2 per UL 94 |
| Operating Temperature: | -40°C to 60°C |
Material Specifications
| Base Material: | Nylon |
|---|---|
| Color: | Black |
| Face Material: | Nylon |
| Grounding Screw: | Brass 8-32 |
| Line Contacts: | Brass .040 Thick |
| Strap Material: | Nickel-Plated Brass |
| Terminal Screws: | Brass 10-32 |
| Yoke: | Nickel-Plated Brass .050 Thick |
Mechanical Specifications
| Product ID: | Ratings and NEMA I.D. permanently marked on device |
|---|---|
| Screw Terminal Torque: | 14-18 in-lbs |
| Terminal Accom.: | 18-10 AWG |
| Terminal ID: | Brass-Hot, Green-Ground, Silver-Neutral |
| Termination: | Back & Side |
Standards and Certifications
| ANSI: | C-73 |
|---|---|
| CSA C22.2 No. 42: | File LR-406 |
| NEMA: | WD-6 |
| NOM: | 57 |
| UL498: | File E13399 |
| Warranty: | Limited Lifetime Warranty Warranty |
