Brand: Leviton Manufacturing Co
|
SKU:
1049644

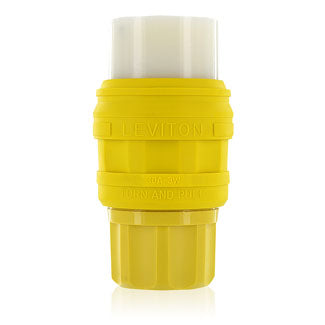

Leviton 78W48-C | 30 Amp, 250 Volt, NEMA L6-30, 2P, 3W, Locking Connector for Single Inlet, Industrial Grade, Grounding, Wetguard - YELLOW
Regular price
$134.70
Unit price
Shipping calculated at checkout.
-
Low prices.
Price match guarantee
-
In-House Experts.
We know our products
-
Easy Returns.
Quick & Hassle Free
-
Superior Selection.
Extensive product catalog
Leviton 78W48-C | 30 Amp, 250 Volt, NEMA L6-30, 2P, 3W, Locking Con...
Regular price
$134.70
Unit price
Brand: Leviton Manufacturing Co
|
SKU:
1049644
Regular price
$134.70
Unit price
Shipping calculated at checkout.
Description
Description
30 Amp, 250 Volt, NEMA L6-30, 2P, 3W, Locking Connector for Single Inlet, Industrial Grade, Grounding, Wetguard - YELLOW
Product Features
| Brand: | Wet guard |
|---|---|
| Color: | Yellow |
| Device Type: | Locking Connector |
| NEMA: | L6-30R |
Specifications
Specifications
Electrical Specifications
| Amperage: | 30 A |
|---|---|
| Current Limiting: | Full Rated Current |
| Dielectric Voltage: | Withstands 2000V per UL498 |
| Grounding: | Grounding |
| Pole: | 2 |
| Temperature Rise: | Max 30C after 250 cycles OL at 200 percent rated current |
| Voltage: | 250 VAC |
| Wire: | 3 |
Environmental Specifications
| Enclosure Rating: | NEMA 4, 4X, 12 IEC IP66 |
|---|---|
| Environment: | Wet |
| Flammability: | Rated V-2 per UL 94 (wiring module) |
| Operating Temperature: | -40°C to 60°C |
Material Specifications
| Assembly Screws: | Stainless Steel, Non-Magnetic |
|---|---|
| Blades/Contacts, Terminal Clamps: | Electroless Nickel-coated Brass |
| Body Material: | Nylon |
| Bushing: | Santorini TPV |
| Compression Nut: | Nylon |
| Husk: | Santorini TPV |
| Strain Relief Clamp: | Nylon |
| Terminal Screws: | Electroless Nickel-coated Brass |
| Wiring Module: | Nylon |
Mechanical Specifications
| Cord Grip Range (in): | .625-1.125 |
|---|---|
| Product ID: | Ratings and NEMA I.D. permanently marked on device |
| Terminal Accom.: | #12 AWG to #8 AWG |
Standards and Certifications
| ANSI: | C-73 |
|---|---|
| CSA: | C22.2 No. 42 |
| NEMA: | WD-6 |
| NOM: | 57 |
| UL: | 498 |
