Brand: Leviton Manufacturing Co
|
SKU:
7CH-8256-VB

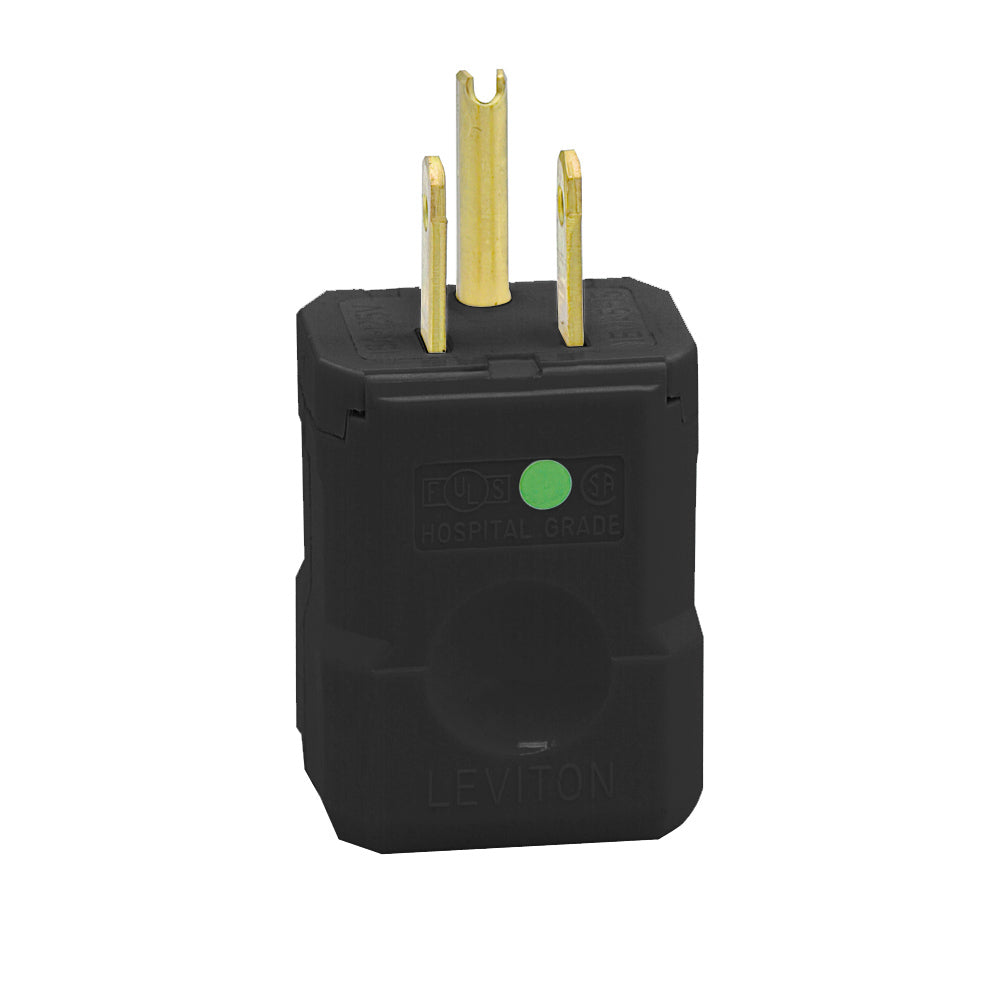

Leviton 8256-VB | 15 Amp, 125 Volt, NEMA 5-15P, 2P, 3W, Plug, Straight Blade, Hospital Grade, Grounding, Python - Black
Regular price
$13.06
Unit price
Shipping calculated at checkout.
-
Low prices.
Price match guarantee
-
In-House Experts.
We know our products
-
Easy Returns.
Quick & Hassle Free
-
Superior Selection.
Extensive product catalog
Leviton 8256-VB | 15 Amp, 125 Volt, NEMA 5-15P, 2P, 3W, Plug, Strai...
Regular price
$13.06
Unit price
Brand: Leviton Manufacturing Co
|
SKU:
7CH-8256-VB
Regular price
$13.06
Unit price
Shipping calculated at checkout.
Description
Description
When it comes to the demanding nature of today’s commercial and industrial electrical environments, ruggedness and ease of installation are the features you look for first in any line of plugs and connectors. Leviton's Python straight-blade plugs and connectors hold up under the most exacting requirements, the toughest conditions, the roughest handling. Python’s exceptional design features meet your needs for a quick, easy-to-wire plug and connector system, a must in today’s faced-paced world where lost minutes on a job can translate into lost profits.
Product Features
| Brand: | Python |
|---|---|
| Color: | Black |
| Device Type: | Straight Blade Plug |
| Grade: | Hospital |
| NEMA: | 5-15P |
Specifications
Specifications
Electrical Specifications
| Amperage: | 15 A |
|---|---|
| Current Interrupting: | Certified for current interrupting at full rated current |
| Dielectric Voltage: | Withstands 2000V per UL498 |
| Grounding: | Grounding |
| Pole: | 2 |
| Temperature Rise: | Max 30C after 250 cycles OL at 200 percent rated current |
| Voltage: | 125 VAC |
| Wire: | 3 |
Environmental Specifications
| Environment: | Dry |
|---|---|
| Flammability: | Rated V-2 per UL 94 |
| Operating Temperature: | -40°C to 60°C |
Material Specifications
| Assembly Screws: | Steel, Zinc Plated |
|---|---|
| Back Cover: | Thermoplastic |
| Blades/Contacts: | Solid Brass |
| Body Material: | Super Tough Nylon |
| Clamp Insert: | Nylon |
| Color: | Black |
| Cord-Clamp: | Nylon |
| Terminal Screws: | Brass |
| Wire Module: | Nylon |
Mechanical Specifications
| Cord Range: | .245 - .700 |
|---|---|
| Product ID: | Ratings and NEMA I.D. permanently marked on device |
| Terminal Accom.: | 18-10 AWG |
| Terminal ID: | Brass-Hot, Green-Ground, White-Neutral |
Standards and Certifications
| ANSI: | C-73 |
|---|---|
| CSA C22.2 No. 42: | File LR-406 |
| NEMA: | WD-6 |
| NOM: | 57 |
| UL 498: | File E13399 |
| UL Fed Spec WC-596: | File E13393 |
| Warranty: | 2-Year Limited |
