Brand: Leviton Manufacturing Co
|
SKU:
955644

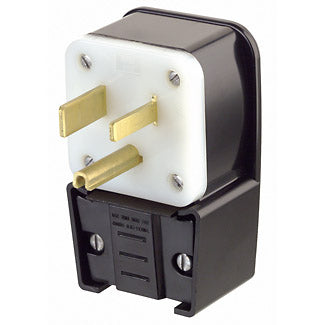

Leviton 9650-P | 50 Amp, 250 Volt, NEMA 6-50P, 2P, 3W, Plug, Straight Blade, Industrial Grade, Grounding, Angle - Black
Regular price
$95.65
Unit price
Shipping calculated at checkout.
-
Low prices.
Price match guarantee
-
In-House Experts.
We know our products
-
Easy Returns.
Quick & Hassle Free
-
Superior Selection.
Extensive product catalog
Leviton 9650-P | 50 Amp, 250 Volt, NEMA 6-50P, 2P, 3W, Plug, Straig...
Regular price
$95.65
Unit price
Brand: Leviton Manufacturing Co
|
SKU:
955644
Regular price
$95.65
Unit price
Shipping calculated at checkout.
Description
Description
50 Amp, 250 Volt, NEMA 6-50P, 2P, 3W, Plug, Straight Blade, Industrial Grade, Grounding, Angle - Black
Leviton's Heavy Duty Industrial Power plugs and connectors offer superior performance, long-lasting reliability and features that are backed by a 10-year warranty. Available in many NEMA configurations, you'll be sure to find the right device for your needs.
Product Features
| Color: | Black |
|---|---|
| Device Type: | Power Device |
| Feature: | Angled |
| NEMA: | 6-50P |
| Warranty: | 2-Year Limited, 2-Year Limited |
Specifications
Specifications
AC Horsepower Ratings
| At Rated Voltage: | 3 HP |
|---|
Electrical Specifications
| Amperage: | 50 A |
|---|---|
| Current Limiting: | Full Rated Current |
| Dielectric Voltage: | Withstands 2000V per UL498 |
| Grounding: | Grounding |
| Pole: | 2 |
| Temperature Rise: | Max 30C after 50 cycles OL at 150 percent rated current |
| Voltage: | 250 VAC |
| Wire: | 3 |
Environmental Specifications
| Operating Temperature: | -40°C to 60°C |
|---|
Material Specifications
| Assembly Screws: | Steel, Zinc Plated |
|---|---|
| Blades/Contacts: | Solid Brass |
| Body Material: | Super Tough Nylon |
| Color: | Black |
Mechanical Specifications
| Cord Range: | 0.625 to 1.375 |
|---|---|
| Product ID: | Ratings are permanently marked on device |
| Terminal Accom.: | Up to 4 AWG |
| Terminal ID: | Brass-Hot, Green-Ground, Silver-Neutral |
| Torque Range: | 16-20 in-lbs |
| Wire Gauge: | 10-4 AWG |
Standards and Certifications
| ANSI: | C-73 |
|---|---|
| CSA C22.2 No. 42: | File 152105 |
| NEMA: | WD-6 |
| NOM: | 57 |
| UL498: | File E13399 |
| Warranty: | 2-Year Limited, 2-Year Limited |
