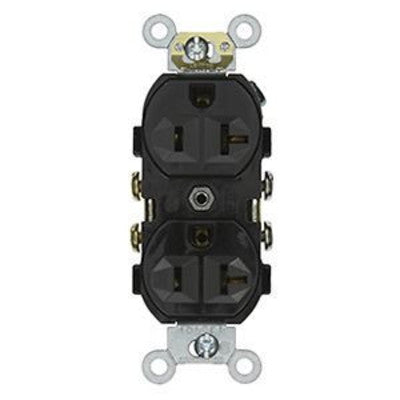

Leviton CR20-E | Duplex Receptacle Outlet, Commercial Specification Grade, Indented Face, 20 Amp, 125 Volt, NEMA 5-20R, 2-Pole, 3-Wire, Self-Grounding - Black
-
Low prices.
Price match guarantee
-
In-House Experts.
We know our products
-
Easy Returns.
Quick & Hassle Free
-
Superior Selection.
Extensive product catalog
Leviton CR20-E | Duplex Receptacle Outlet, Commercial Specification...
Description
Description
Duplex Receptacle Outlet, Commercial Specification Grade, Indented Face, 20 Amp, 125 Volt, Side Wire, NEMA 5-20R, 2-Pole, 3-Wire, Self-Grounding - Black
Leviton’s line of Heavy-Duty Specification Grade receptacles are designed and manufactured to withstand the most demanding environments. Available in a wide variety of configurations, including isolated ground, tamper-resistant, etc., these Commercial Grade devices are the electrical contractor's choice for use in hotels, schools, hospitals and commercial office buildings.
Key Features
- Commercial Specification Grade
- Single-piece wraparound galvanized steel strap
- Brass ground contacts
- Heavy-duty copper alloy electrical contacts
Product Features
| Color: | Black |
|---|---|
| Device Type: | Duplex Receptacle Outlet |
| Feature 4: | Indented Face |
| Grade: | Commercial Specification Grade |
| NEMA: | 5-20R |
Specifications
Specifications
AC Horsepower Ratings
| At Rated Voltage: | 1 HP |
|---|
Electrical Specifications
| Amperage: | 20 A |
|---|---|
| Current Limiting: | Full Rated Current |
| Dielectric Voltage: | Withstands 2000V per UL498 |
| Grounding: | Self-Grounding |
| Pole: | 2 |
| Temperature Rise: | Max 30C after 100 cycles OL at 150 percent rated current |
| Voltage: | 125 VAC |
| Wire: | 3 |
Environmental Specifications
| Flammability: | Rated V-2 per UL94 |
|---|---|
| Operating Temperature: | -40°C to 60°C |
Material Specifications
| Body Material: | Thermoplastic |
|---|---|
| Face Material: | Thermoplastic |
| Ground Clips: | Brass |
| Grounding Screw: | Steel 8-32 |
| Line Contacts: | Brass .031 Thick |
| Strap Material: | Zinc-Plated Steel |
| Terminal Screws: | Steel 8-32 |
Mechanical Specifications
| Product ID: | Ratings are permanently marked on device |
|---|---|
| Screw Terminal Torque: | 14-18 in-lbs |
| Terminal Accom.: | 14-10 AWG |
| Terminal ID: | Brass-Hot, Green-Ground, Silver-Neutral |
| Termination: | Side Wire |
Standards and Certifications
| ANSI: | C-73 |
|---|---|
| CSA C22.2 No. 42: | File 152105 |
| NEMA: | WD-1 & WD-6 |
| NOM: | 57 |
| UL498: | File E13399 |
| Warranty: | 10-Year Limited |
