Leviton CS6365C | 50Amp, 125/250V AC, Non-NEMA, 3P, 4W, Black &...
Description
Description

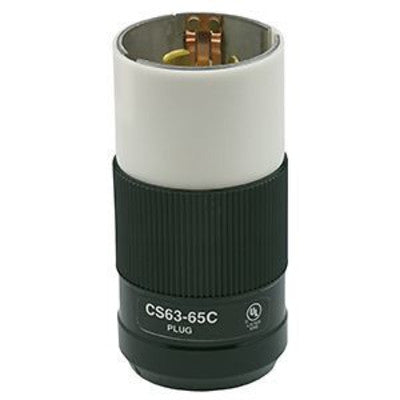

50Amp, 125/250V AC, Non-NEMA, 3P, 4W, Black & White Locking Plug, Industrial Grade, Grounding, California-Style(CS) – BLACK-WHITE
Leviton's Black & White 50 Amp, Non-NEMA line of industrial grade locking blade devices feature rugged construction that resists impact, sunlight, chemicals and rough use. All contacts and blades are solid one-piece construction for superior conductivity. Corrosion resistant versions feature nickel plated contacts and blades, plus stainless steel shrouds and screws. The ergonomic, fluted-body design with radial gripping edge is ideal for gripping and pulling. The unique cord clamp accepts a wide range of cord sizes, providing a secure grip without damaging the cord. And, they are backed by a limited lifetime warranty.
Product Features
| Brand: | Black and White |
|---|---|
| Color: | Black-White |
| Device Type: | Locking Plug |
| NEMA: | Non-NEMA |
Specifications
Specifications
Electrical Specifications
| Amperage: | 50 A |
|---|---|
| Current Interrupting: | Certified for current interrupting at full rated current |
| Dielectric Voltage Withstand: | 2000V minimum per UL 498 |
| Grounding: | Grounding |
| Maximum Working Voltage: | 125/250V as rated |
| Pole: | 3 |
| Temperature Rise: | Max 30ºC temp rise at full-rated current after 150 cycles of OL at 150% rated DC current |
| Voltage: | 125/250 VAC |
| Wire: | 4 |
Environmental Specifications
| Environment: | Dry |
|---|---|
| Flammability: | UL94V-2 |
| Operating Temperature: | -40°C to 75°C |
Material Specifications
| Assembly Screws: | Brass |
|---|---|
| Cable Clamp Screw: | Philips Head, SS 304 |
| Color: | Black-White |
| Dust Shield: | Santoprene TPE |
| Face Module: | Nylon |
| Ground Post: | Brass |
| Ground Shunt: | Bronze |
| Housing Material: | Nylon |
| Plug Blade: | 0.1000inch thick Brass |
| Plug Blade Shroud: | SS 302/304 |
| Standard Cable Clamp: | Nylon |
| Terminal Block: | 0.062inch thick Copper |
| Terminal Set Screw: | SS 302/304 |
| Wiring Chamber: | Nylon |
Mechanical Specifications
| Cord Range: | .680 - 1.125 |
|---|---|
| Product ID: | Ratings and Catalogue No. molded into face and stamped into shroud |
| Terminal Accom.: | #10 min to #4max AWG Solid or Stranded Wire |
| Terminal ID: | X, W, Y, Z and Green for ground |
| Torque Range: | allen wrench to 35 inch-lbs |
Standards and Certifications
| CSA C22.2 No. 42: | File 152105 |
|---|---|
| NOM: | 57 |
| RoHS: | Compliant |
| UL 498: | File E13399 |
| Warranty: | Limited Lifetime Warranty |
