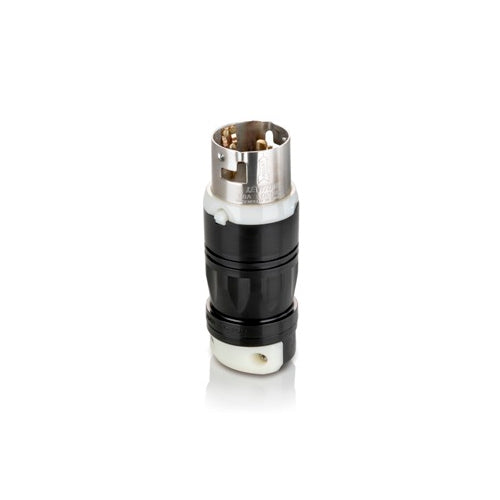

Leviton CS816-5C | 50 Amp, 480 Volt, Black & White Locking Plug, Industrial Grade

Leviton’s Black & White 50 Amp, Non-NEMA line of industrial grade locking blade devices feature rugged construction that resists impact, sunlight, chemicals and rough use. All contacts and blades are solid one-piece construction for superior conductivi{ty. Corrosion resistant versions feature nickel plated contacts and blades, plus stainless steel shrouds and screws. The ergonomic, fluted-body design with radial gripping edge is ideal for gripping and pulling. The unique cord clamp accepts a wide ran{ge of cord sizes, providing a secure grip without damaging the cord. And, they are backed by a limited lifetime warranty.

Leviton - CS816-5C - Features

• Corrosion resistant versions feature nickel plated contacts and blades, plus stainless steel shrouds and screws. The ergonomic, fluted-body design with radial gripping edge is ideal for gripping and pulling. The unique cord clamp accepts a wide ran
• ge of cord sizes, providing a secure grip without damaging the cord. And, they are backed by a limited lifetime warranty.

---

Leviton - CS816-5C - Specifications

UNSPSC Code	39120000
Environment	Dry
Flammability	UL94 V-2
Operating Temperature	-40°C to 75°C
Assembly Screws	Brass
Cable Clamp Screw	Philips Head, SS 304
Color	Black-White
Compression Nut, Strain Relief	Nylon
Connector Contact - Spring	0.041-inch thick Brass
Contact - Binding Plate	0.100-inch thick Brass
Contact Rivet	Brass
Dust Shield	Santoprene TPE
Face Module	Nylon
Grommet/Gasket	Santoprene TPE
Ground Post	Brass
Ground Shunt	Bronze
Housing	Nylon

---

Leviton - CS816-5C - Documents and Downloads

Leviton CS816-5C Brochure

Download and View
