Leviton CS8269 | 50Amp, 250V AC, Non-NEMA, 2P, 3W, Black & Whit...
Description
Description

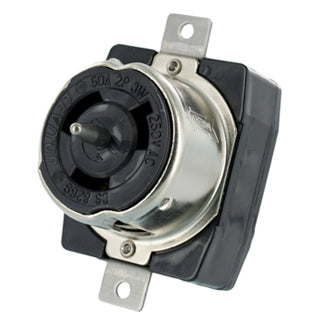

50Amp, 250V AC, Non-NEMA, 2P, 3W, Black & White Locking Flush Mount Receptacle, Industrial Grade, Grounding, California-Style(CS) – BLACK
Leviton Black & White 50Amp Non-NEMA Locking devices are designed for faster wiring and longer life. Made from tough, impact-resistant nylon housings and metal shrouds, these plugs, connectors, receptacles and flanged inlets are designed for rugged environments like construction sites, commercial shipyards and convention centers.
Product Features
| Brand: | Black and White |
|---|---|
| Color: | Black |
| Device Type: | Locking Receptacle |
| NEMA: | Non-NEMA |
Specifications
Specifications
Electrical Specifications
| Amperage: | 50 A |
|---|---|
| Current Interrupting: | Certified for current interrupting at full rated current |
| Dielectric Voltage Withstand: | 2000V minimum per UL 498 |
| Grounding: | Grounding |
| Maximum Working Voltage: | 250V as rated |
| Pole: | 2 |
| Temperature Rise: | Max 30ºC temp rise at full-rated current after 150 cycles of OL at 150% rated DC current |
| Voltage: | 250 VAC |
| Wire: | 3 |
Environmental Specifications
| Environment: | Dry |
|---|---|
| Flammability: | Rated HB or better UL94 |
| Operating Temperature: | -40°C to 75°C |
Material Specifications
| Assembly Rivets: | SS 302/304 |
|---|---|
| Back Cover: | Reinforced Nylon |
| Body & Contract Carrier: | Reinforced Nylon |
| Body Material: | Impact Modified Nylon |
| Box Terminal: | 0.062inch thick Copper |
| Center Pin: | SS 302/304 |
| Color: | Black |
| Connector Contact - Binding Plate: | 0.100inch thick Brass |
| Connector Contact - Spring: | 0.041inch thick Brass |
| Contact Rivet: | Brass |
| Face Module: | Reinforced Nylon |
| Mounting Screws: | SS 302/304 |
| Mounting Strap: | Single piece SS 302/304 |
| Shroud: | .062inch thick Nickel Plated Steel |
| Terminal Set Screw: | SS 302/304 |
Mechanical Specifications
| Product ID: | Ratings and Catalogue No. molded into face |
|---|---|
| Terminal Accom.: | #10min to #6max AWG Solid or Stranded Wire (Stranded Wire for Ground only) |
| Terminal ID: | X, W, Y, Z and Green for ground |
Standards and Certifications
| CSA C22.2 No. 42: | File 152105 |
|---|---|
| NOM: | 57 |
| RoHS: | Compliant |
| UL 498: | File E13399 |
| Warranty: | Limited Lifetime Warranty |
