Brand: Leviton Manufacturing Co
|
SKU:
10048775
Leviton EVBL2-P18 | Evr-Green Mini Level 2 Electric Vehicle Charging Station Pedestal System, 20 A, 208-240 VAC
Regular price
$882.24
Unit price
Shipping calculated at checkout.
-
Low prices.
Price match guarantee
-
In-House Experts.
We know our products
-
Easy Returns.
Quick & Hassle Free
-
Superior Selection.
Extensive product catalog
Leviton EVBL2-P18 | Evr-Green Mini Level 2 Electric Vehicle Chargin...
Regular price
$882.24
Unit price
Brand: Leviton Manufacturing Co
|
SKU:
10048775
Regular price
$882.24
Unit price
Shipping calculated at checkout.
Description
Description
Evr-Green Mini Level 2 Electric Vehicle Charging Station Pedestal System, 20 A, 208-240 VAC, 4.8kW Output, 18’ Charging Cable, Cord-Connected (Plug-In), Requires a 30 Amp, 250 Volt, NEMA 6-30R, 2P, 3W Receptacle for Operation. Whether you are the driver of an electric vehicle, a commercial business owner, a utility company, or a landlord, Leviton has the charging station for you. Evr-Green Level 2 Chargers enable fast charging of any SAE J1772 compatible electric vehicle in a compact, affordable, and easy-to-use solution.
Specifications
Specifications
Electrical Specifications
| Amperage: | 20 A |
|---|---|
| Breaker: | 30 A 2-Pole |

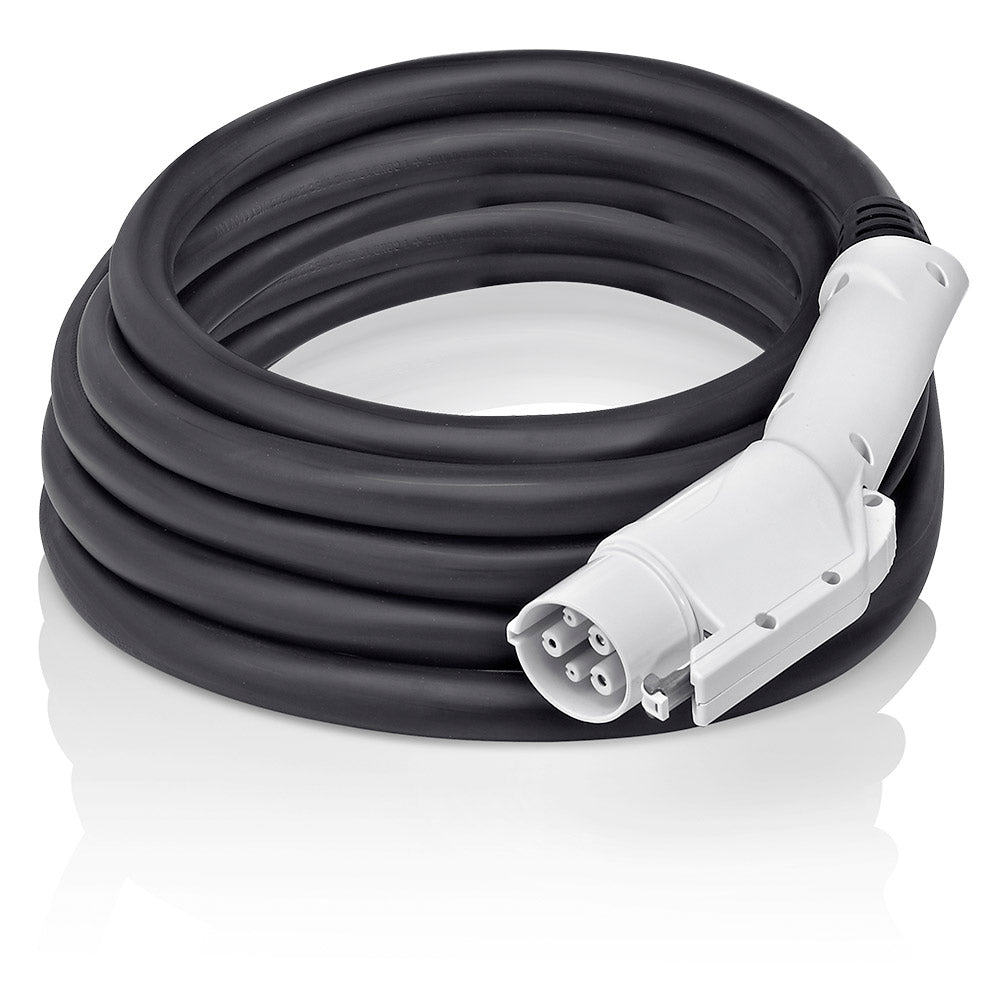

| Charge Connector: | SAEJ1722 Charge Connector on 18' Cable |
| Circuit: | 30 A dedicated circuit |
| Output Power: | 4.8 kW (30 A 240 V) |
| Voltage: | 208/240 VAC |
Environmental Specifications
| Enclosure: | Thermoplastic Polyester |
|---|---|
| Operating Humidity: | 5-90% non-condensing |
| Operating Temperature: | -40 °F to 122 °F |
| Storage Temperature: | -40 °F to 176 °F |
Material Specifications
| Charge Connector Cord: | UL Type EV |
|---|---|
| Enclosure: | Thermoplastic Polyester |
Standards and Certifications
| FCC Part 15: | Federal Communications Commission Part 15 Radio Frequency Devices Class B Residential Use |
|---|---|
| NEC Article 625: | Electric Vehicle Charging System Equipment |
| NOM: | NOM-ANCE |
| SAE J1772: | Electric Vehicle Conductive Charge Coupler Standard |
| UL 1998: | Standard for Software in Programmable Components |
| UL 2231: | Standard for Personnel Protection Systems for Electric Vehicle (EV) Supply Circuits |
| UL 2231-2: | Meets Electromagnetic Compatibility (EMC) Requirements |
| UL 2251: | Standard for Plugs, Receptacles and Charge Couplers for Electric Vehicles |
| UL 2594: | Outline of Investigation for Electric Vehicle Supply Equipment |
| UL 62: | Standard for Flexible Cords and Cables |
| UL 991: | Standard for Tests for Safety-Related Controls Employing Solid-State Devices |
