Brand: Leviton Manufacturing Co
|
SKU:
10048781

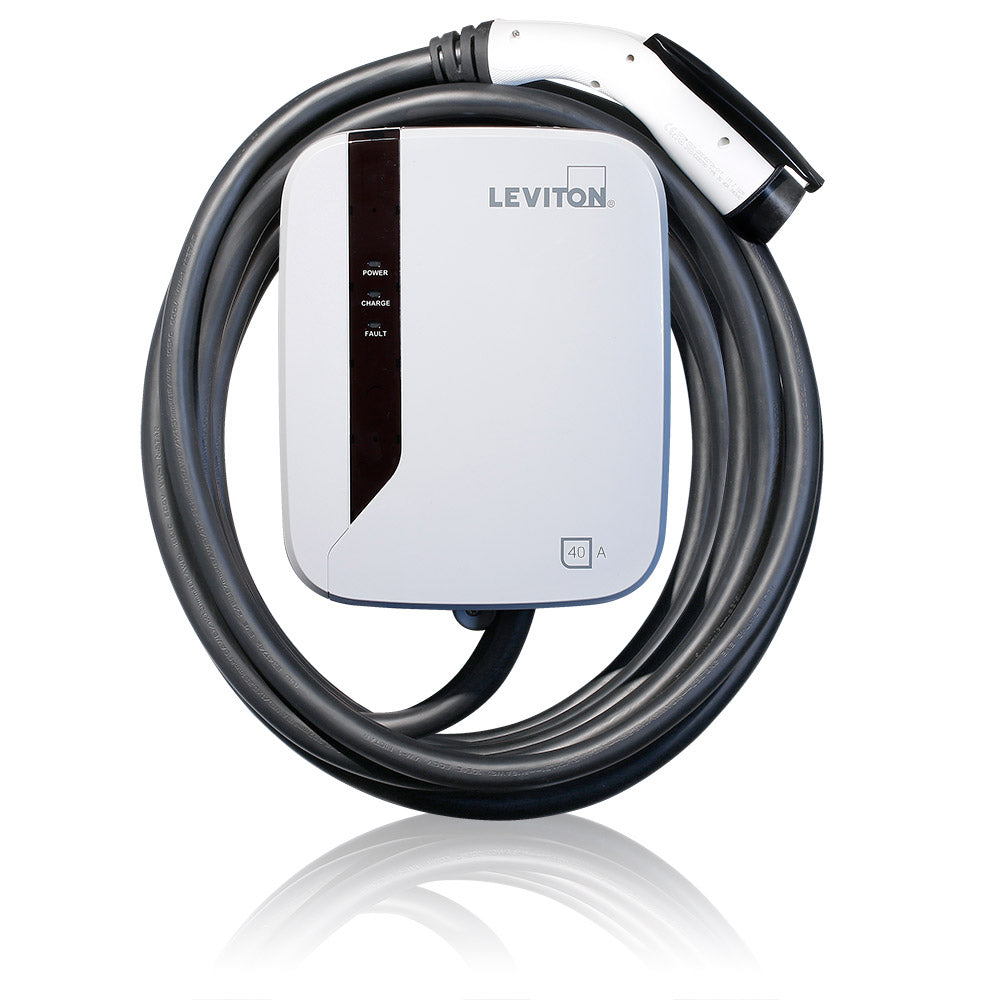

Leviton EVR40-B2C | Evr-Green Level 2 Electric Vehicle Charging Station, 40 A
Regular price
$1,849.15
Unit price
Shipping calculated at checkout.
-
Low prices.
Price match guarantee
-
In-House Experts.
We know our products
-
Easy Returns.
Quick & Hassle Free
-
Superior Selection.
Extensive product catalog
Leviton EVR40-B2C | Evr-Green Level 2 Electric Vehicle Charging Sta...
Regular price
$1,849.15
Unit price
Brand: Leviton Manufacturing Co
|
SKU:
10048781
Regular price
$1,849.15
Unit price
Shipping calculated at checkout.
Description
Description
Whether you are the driver of an electric vehicle, a commercial business owner, a utility company, or a landlord, Leviton has the charging station for you. Evr-Green Level 2 Chargers enable fast charging of any SAE J1772 compatible electric vehicle in a compact, affordable, and easy-to-use solution.
Product Features
| Cover Locking Mechanism: | Tor Screw to Prevent Unauthorized Access, No Padlock Option |
|---|
Specifications
Specifications
Electrical Specifications
| Amperage: | 40 A |
|---|---|
| Breaker: | 50 A |
| Charge Connector Cord: | #6 AWG SAE J1772 Charge Connector, UL Type EV |
| Number of Phase / Wire: | L1, L2 and Ground, Bottom Feed |
| Operating Temperature: | -30°C to 50°C |
| Output Power: | 9.6 kW (40 A @ 240 V), 8.3 kW (40 A @ 208 V) |
| Phantom Power: | < 7.5 W |
| Short Circuit Current Rating: | 20 mA CCID per UL 2231 |
| Voltage: | 208/240 VAC |
Environmental Specifications
| Altitude: | Up to 6,500 ft. (2,000 m) |
|---|---|
| Charging Cable Operating Temperature: | -40°F to +122°F (-40°C to +50°C) |
| Cooling: | Natural Cooling |
| Operating Humidity: | < 95% Relative Humidity, Non-Condensing |
Material Specifications
| Enclosure Material: | Plastic (PC+PBT) |
|---|---|
| Enclosure Rating: | NEMA Type 3R |
| Status Indicator: | Power Present, Charging, Fault |
Mechanical Specifications
| Cable Length: | 25 ft. (7.62 m) |
|---|
Standards and Certifications
| Standards and Certifications: | SAE J1772; UL 991; SAE J2953; NEC Article 625; UL 2594; CSA C22.2; No. 107.1; UL 2231-1; FCC; UL 2231-2; UL, cull; UL 1998 |
|---|
