Brand: Leviton Manufacturing Co
|
SKU:
955574

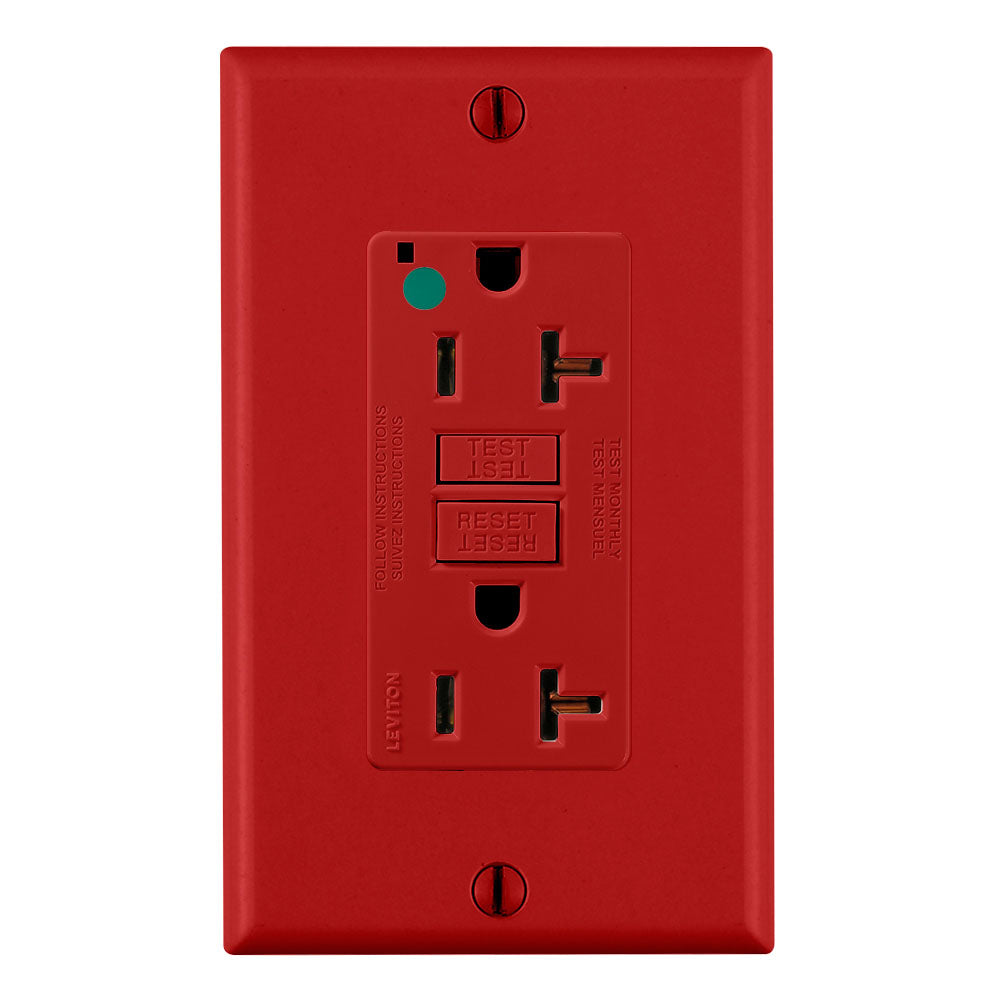

Leviton GFNT2-HGR | Self-Test SmartlockPro GFCI Duplex Receptacle Outlet, Extra Heavy-Duty Hospital Grade, Power Indication, Self-Grounding - Red
Regular price
$49.11
Unit price
Shipping calculated at checkout.
-
Low prices.
Price match guarantee
-
In-House Experts.
We know our products
-
Easy Returns.
Quick & Hassle Free
-
Superior Selection.
Extensive product catalog
Leviton GFNT2-HGR | Self-Test SmartlockPro GFCI Duplex Receptacle O...
Regular price
$49.11
Unit price
Brand: Leviton Manufacturing Co
|
SKU:
955574
Regular price
$49.11
Unit price
Shipping calculated at checkout.
Description
Description
Self-Test SmartlockPro GFCI Duplex Receptacle Outlet, Extra Heavy-Duty Hospital Grade, Wallplate Included, Power Indication, 20 Amp, 125 Volt, Back and Side Wire, NEMA 5-20R, 2-Pole, 3-Wire, Self-Grounding - Red
Product Features
| Brand: | SmartlockPro |
|---|---|
| Color: | Red |
| Device Type: | Duplex Receptacle Outlet |
| Feature: | Wallplate Included, Power Indication, Self-Test |
| Function: | GFCI |
| Grade: | Extra Heavy-Duty Hospital Grade |
| NEMA: | 5-20R |
Specifications
Specifications
AC Horsepower Ratings
| At Rated Voltage: | 1 HP |
|---|
Electrical Specifications
| Amperage: | 20 A |
|---|---|
| Grounding: | Self-Grounding |
| Pole: | 2 |
| Short Circuit Current Rating: | 10kA |
| Voltage: | 125 VAC |
| Wire: | 3 |
Environmental Specifications
| Flammability: | Rated V-0 per UL 94 |
|---|---|
| Operating Temperature: | -35C to +66C |
Material Specifications
| Body Material: | Polycarbonate |
|---|---|
| Face Material: | PBT |
| Ground Clips: | Brass |
| Grounding Screw: | Plated Steel |
| Line Contacts: | Brass |
| Strap Material: | Galvanized Steel |
| Terminal Clamp: | Brass |
| Terminal Screws: | Plated Steel |
Mechanical Specifications
| Product ID: | Ratings are permenantly marked on device |
|---|---|
| Screw Terminal Torque: | 14-18 in-lbs |
| Terminal Accom.: | 14-10 AWG solid or stranded |
| Terminal ID: | Brass-Hot, Green-Ground, Silver-Neutral |
| Termination: | Back and Side Wire |
Standards and Certifications
| ANSI: | C-73 |
|---|---|
| Applicable Standards: | UL 943, UL 498, CSA C22.2 No. 42 & 144, FedSpec W-C-596 |
| Certification/Listing: | UL, CSA, NOM-ANCE |
| NEMA: | WD-1 & WD-6 |
Warranty
| Warranty: | 2-Year Limited |
|---|
