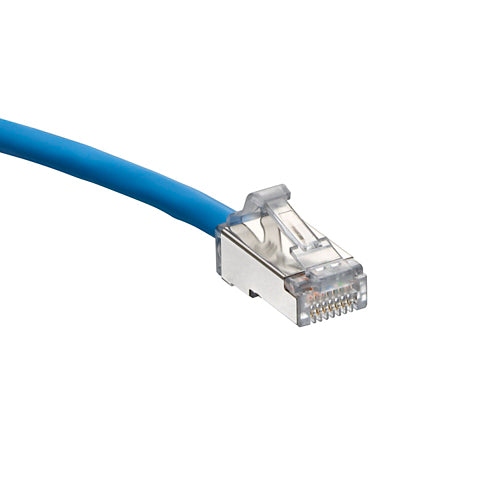

Leviton H6A10-01L | Cat 6A Small Diameter High-Flex Patch Cord, 1 Ft (0.3 M), Blue

Cat 6A Small Diameter High-Flex Patch Cords are designed to be used in 10 Gigabit applications for all frequencies from 1 to 500 MHz. Patch cords offer flexible, high-density patching. Cables support high-speed data applications. They reduce patch cord density in a 24-port patch panel by 25 percent when compared to typical Cat 6A patch cords.

Leviton - H6A10-01L - Features

• Available in white, yellow, gray, black, red, green and blue
• Available in lengths from 1-50 feet
• Power over Ethernet compatible
• Accommodate use in high-density switches, routers, and other electronics
• Bend radius is a narrow 0.74 inches, versus 1.0 inch for typical Cat 6A patch cords
• Under PoE at 90 watts, maximum bundle size is 12 cables with a separation of 1.5 inches from outer edge to outer edge of cable bundles for 28 AWG cables installed in air and a maximum ambient temperature of 45 ºC (113 ºF), as defined in TIA TSB-184-A

---

Leviton - H6A10-01L - Specifications

Category	Category 6A
Color	Blue
Type	Patch Cords
Connector Type	Rj45 To Rj45
Lengths	1 Ft. | 0.3 M
Shielded	S/Ftp - Screened/Foiled Twisted Pair
UNSPSC Code	43223303

---

Leviton - H6A10-01L - Documents and Downloads

Leviton H6A10-01L Data Sheet

Download and View
