Brand: Leviton Manufacturing Co
|
SKU:
MM03-LVT6ASD-08

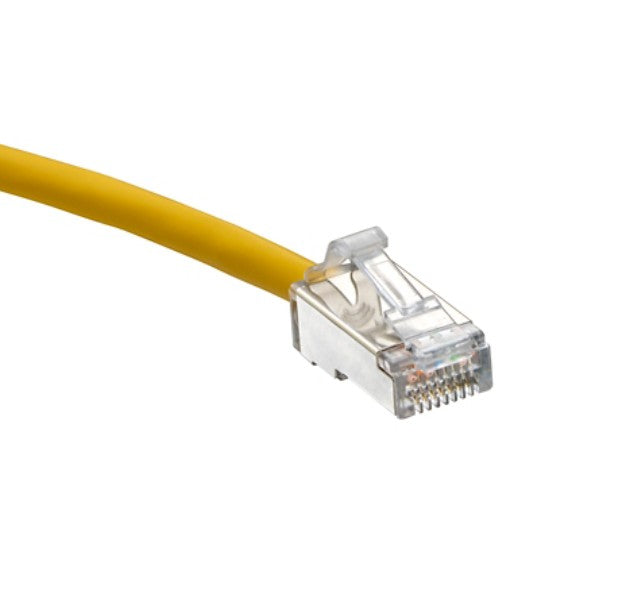

Leviton H6A10-3Y | Cat 6A Small Diameter High-Flex Patch Cord, 3 ft (0.91 m), Yellow
Regular price
$16.15
Unit price
Shipping calculated at checkout.
-
Low prices.
Price match guarantee
-
In-House Experts.
We know our products
-
Easy Returns.
Quick & Hassle Free
-
Superior Selection.
Extensive product catalog
Leviton H6A10-3Y | Cat 6A Small Diameter High-Flex Patch Cord, 3 ft...
Regular price
$16.15
Unit price
Brand: Leviton Manufacturing Co
|
SKU:
MM03-LVT6ASD-08
Regular price
$16.15
Unit price
Shipping calculated at checkout.
Description
Description
Leviton H6A10-3Y | Cat 6A Small Diameter High-Flex Patch Cord, 3 ft (0.91 m), Yellow
Cat 6A Small Diameter High-Flex Patch Cords are designed to be used in 10 Gigabit applications for all frequencies from 1 to 500 MHz. Patch cords offer flexible, high-density patching. Cables support high-speed data applications. They reduce patch cord density in a 24-port patch panel by 25 percent when compared to typical Cat 6A patch cords.
Leviton - H6A10-3Y - Features
- Available in white, yellow, gray, black, red, green and blue
- Available in lengths from 1-50 feet
- Power over Ethernet compatible
- Accommodate use in high-density switches, routers, and other electronics
- Bend radius is a narrow 0.74 inches, versus 1.0 inch for typical Cat 6A patch cords
- Under PoE at 90 watts, maximum bundle size is 12 cables with a separation of 1.5 inches from outer edge to outer edge of cable bundles for 28 AWG cables installed in air and a maximum ambient temperature of 45 ºC (113 ºF), as defined in TIA TSB-184-A
Specifications
Specifications
Leviton - H6A10-3Y - Specifications
| Dimensions: | 1-50 foot lengths (0.3-15 m) |
|---|---|
| Materials: | 28 AWG, stranded U/FTP, standard modular non-keyed, 8-position, 8-conductor plug, 94V-0 rated |
| Cable Outer Diameter: | 0.185 inches (4.7 mm) |
| Bend Radius: | 0.74 inches (18.8 mm) |
| Temp. (Storage): | -20 °C to +70 °C (-4 °F to +158 °F) |
| Temp. (Installation): | 0 °C to +50 °C (+32 °F to +122 °F) |
| Temp. (Operating): | -20 °C to +60 °C (-4 °F to +140 °F) |
| Humidity (Max): | 93% relative humidity, non-condensing |
| UL voltage rating: | 300 V |
| Category | Category 6a |
| Connector Type | Rj45 To Rj45 |
| Color | Yellow |
| Lengths | 3 Ft. | 0.91 M |
| Type | Patch Cords |
| Shielded | S/ftp - Screened/foiled Twisted Pair |
| Unspsc Code | 43223303 |
