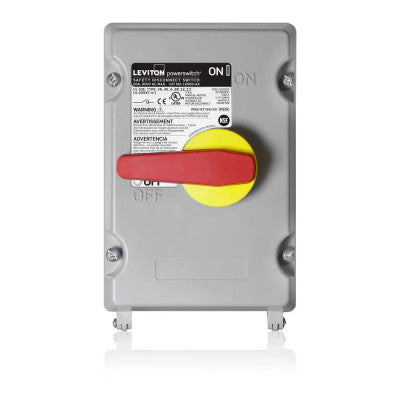

Leviton LDS60-AX | 60 Amp Non-Fused PowerSwitch Disconnect Switch, 600 Volt, Non-Metallic Enclosure
Regular price
$445.02
Unit price
Shipping calculated at checkout.
-
Low prices.
Price match guarantee
-
In-House Experts.
We know our products
-
Easy Returns.
Quick & Hassle Free
-
Superior Selection.
Extensive product catalog
Leviton LDS60-AX | 60 Amp Non-Fused PowerSwitch Disconnect Switch, ...
Regular price
$445.02
Unit price
Brand: Leviton Manufacturing Co
|
SKU:
9781726
Regular price
$445.02
Unit price
Shipping calculated at checkout.
Description
Description
60 Amp Non-Fused PowerSwitch Disconnect Switch, 600 Volt, Non-Metallic Enclosure
Specifications
Specifications
Standards and Certifications
| Amperage: | 60 A |
|---|---|
| CE: | CE Marked |
| Current Interrupting: | Certified for full-rated current and voltage |
| Dielectric Voltage: | 1000 V plus twice rated voltage for 1 minute |
| Endurance: | 6,000 operating cycles at rated current and voltage |
| IEC: | 60529 |
| ISO: | 20653 |
| Ingress Protection: | NEMA/UL 50E Type 3R, 4, 4X, 6, 6P, 12, 13 IEC IP66, IP67, IP68, IP69 IP69K |
| NEMA: | 250 |
| NOM: | NOM-ANCE |
| NSF: | 14159-1, Hygenic Requirement for the Design of Meat & Poultry Processing Equipment |
| Short Circuit Current Rating: | 100 kA; Fuse Type J; Fuse Size 100A |
| Voltage: | 600 VAC |
| cULus: | cULus UL60947-4-1A (Suitable as Motor Disconnect) |
Electrical Specifications
| Amperage: | 60 A |
|---|---|
| Current Interrupting: | Certified for full-rated current and voltage |
| Dielectric Voltage: | 1000 V plus twice rated voltage for 1 minute |
| Endurance: | 6,000 operating cycles at rated current and voltage |
| Operating Temperature: | -40°C to 75°C |
| Short Circuit Current Rating: | 100 kA; Fuse Type J; Fuse Size 100A |
| UV Resistance: | Exposed materials are UV stabilized |
| Voltage: | 600 VAC |
Environmental Specifications
| Enclosure Material: | PBT+PC |
|---|---|
| Enclosure Screws: | Stainless Steel |
| Gasket: | Silicone Rubber |
| Handle Material: | PBT+PC with TPE Overmold |
| Mounting Feet: | PBT+PC |
| Operating Temperature: | -40°C to 75°C |
| UV Resistance: | Exposed materials are UV stabilized |
Material Specifications
| Enclosure Material: | PBT+PC |
|---|---|
| Enclosure Screws: | Stainless Steel |
| Gasket: | Silicone Rubber |
| Handle Material: | PBT+PC with TPE Overmold |
| Mounting Feet: | PBT+PC |
| Product ID: | Ratings are permanently marked on device |
| Terminal Accom.: | 14 - 4 AWG |
| Terminal ID: | In accordance with UL and international conventions |
Mechanical Specifications
| CE: | CE Marked |
|---|---|
| IEC: | 60529 |
| ISO: | 20653 |
| NEMA: | 250 |
| NOM: | NOM-ANCE |
| NSF: | 14159-1, Hygenic Requirement for the Design of Meat & Poultry Processing Equipment |
| Product ID: | Ratings are permanently marked on device |
| Terminal Accom.: | 14 - 4 AWG |
| Terminal ID: | In accordance with UL and international conventions |
| cULus: | cULus UL60947-4-1A (Suitable as Motor Disconnect) |
Warranty
| Warranty: | 3-Year Limited |
|---|
