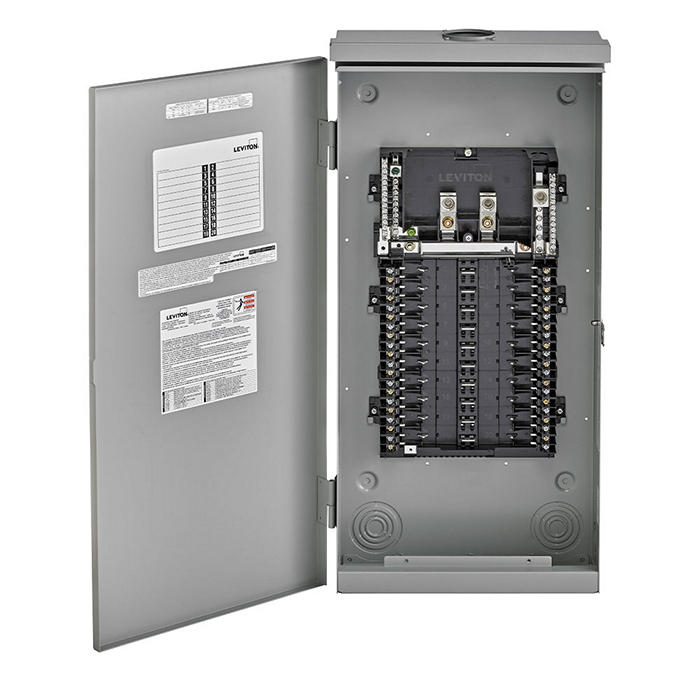

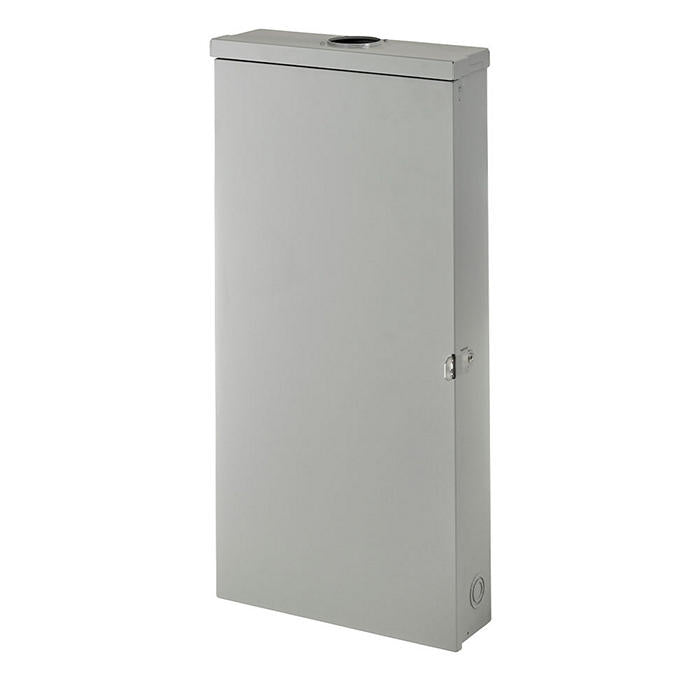

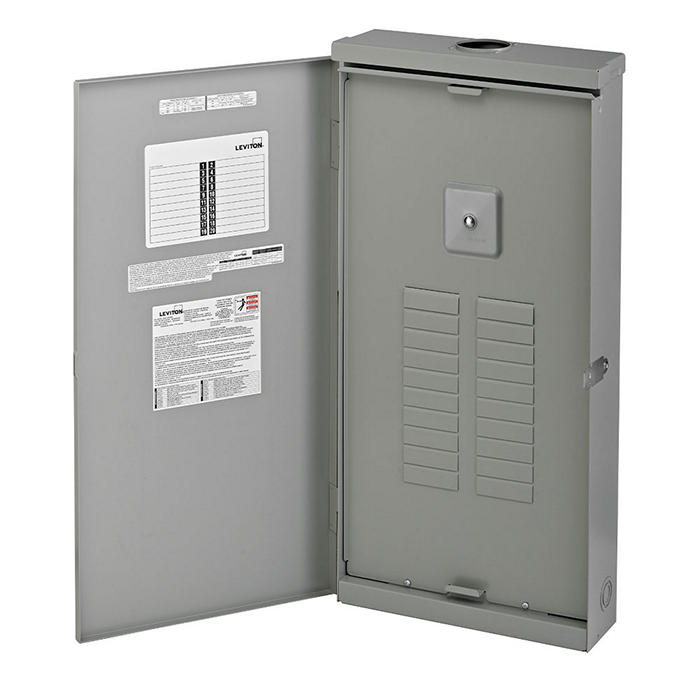

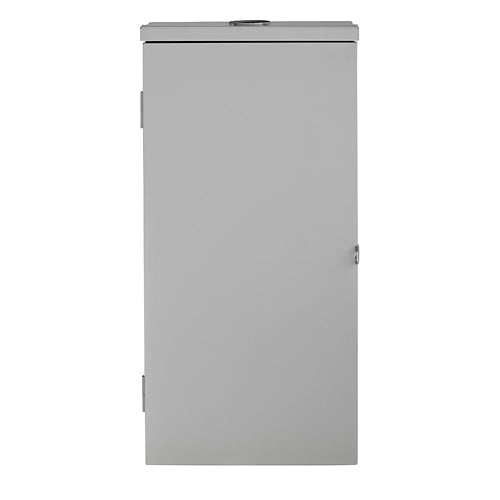

Leviton LP212-3L | 20 Space Outdoor Load Center With Main Lugs
Regular price
$218.35
Unit price
Brand: Leviton Manufacturing Co
|
SKU:
982875
Regular price
$218.35
Unit price
Description
Description
Leviton LP212-3L | 20 Space Outdoor Load Center With Main Lugs
Leviton - LP212-3L - Specifications
| UNSPSC Code | 52161600 |
| Amperage | 225 A |
| Short Circuit Current Rating | 10kA |
| Spaces / Circuits | 20 / 20 |
| Type of Load Center | Main Lug |
| Voltage | 120/240 VAC |
| NEMA Enclosure Type | NEMA 3R Outdoor |
| Operating Temperature | 0°C to 40°C |
| Busbar Material | Copper, Bright Tin-Plated |
| Busbar Rating | 225A |
| Dimensions | 30" H x 15" W x 4.4" D |
| Enclosure Material | Galvanized Steel, Gray Baked Enamel |
| Ground Connection | 4 AWG - 2/0 AWG Cu/Al |
| Supply Connections | 3 AWG - 300 MCM Cu/Al |
| Weight | 40 lbs |
| Color | Gray |
| Warranty | 10-Year Limited |
