Brand: Leviton Manufacturing Co | SKU: 982871

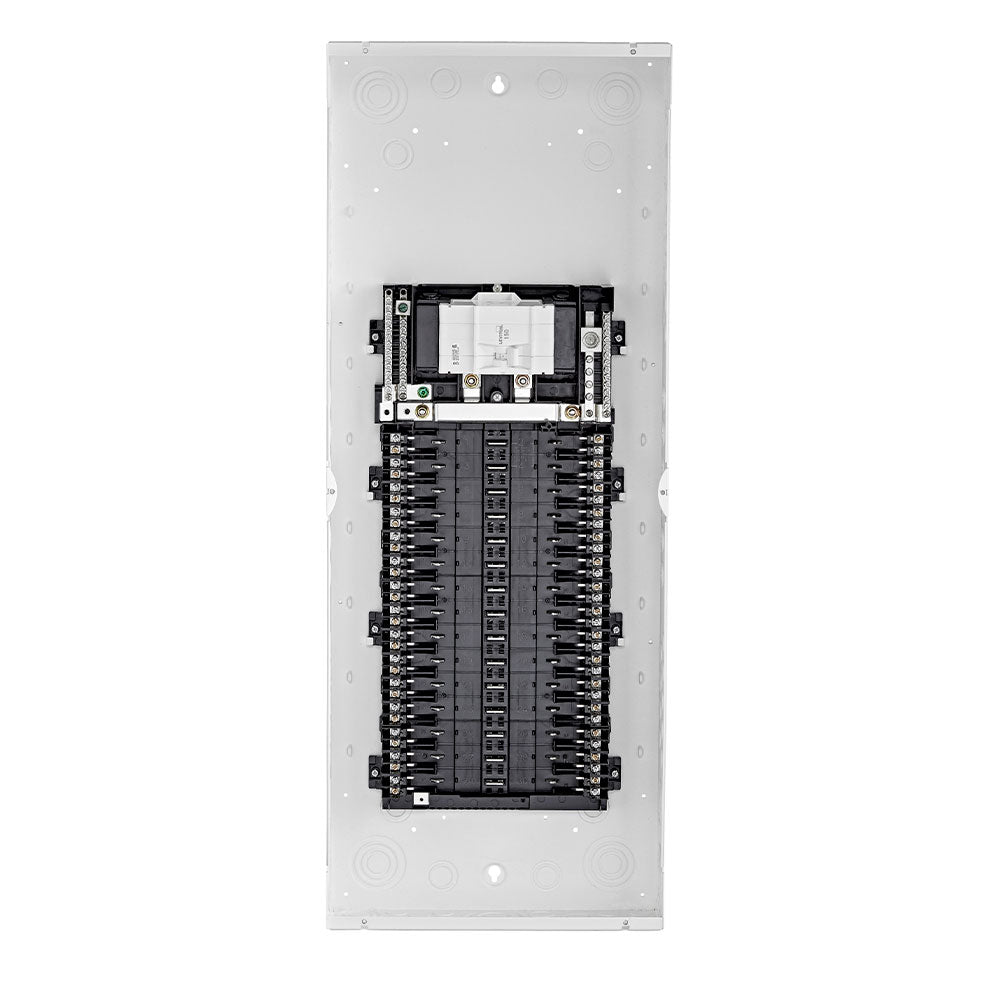

Leviton LP315-MB | 30 Space Indoor Load Center with 150A Main Circuit Breaker

$229.29

Shipping calculated at checkout.

Low prices.

Price match guarantee
In-House Experts.

We know our products
Easy Returns.

Quick & Hassle Free
Superior Selection.

Extensive product catalog

Description

Indoor Load Center with 150A Main Circuit Breaker Factory Installed, 30 Spaces, NEMA 1 Rated. Includes Enclosure and Interior Only. Door Sold Separately.

EASY - Leviton's revolutionary design allows the entire Load Center to be wired at rough-in without any circuit breakers present
SUPERIOR CONDUCTIVITY - All Leviton Load Centers come standard equipped with tin plated copper bussing
ORGANIZED - Notches stamped into the enclosure for cable ties promote secure and neat wiring
MODERN DESIGN - Features a white, powder coated finish for a sleek, modern appearance

Product Features

Color:	White
Warranty:	10-Year Limited

Specifications

Electrical Specifications

Amperage:	150 A
Short Circuit Current Rating:	22 KA
Spaces / Circuits:	30 / 30
Type of Load Center:	Main Breaker
Voltage:	120/240 VAC

Mechanical Specifications

Busbar Material:	Copper, Bright Tin-Plated
Dimensions:	37" H x 14.25" W x 4" D
Enclosure Material:	Galvanized Steel, White Powder Coat
Ground Connection:	4 AWG - 2/0 AWG Cu/Al
Supply Connections:	3 AWG - 300 MCM Cu/Al
Weight:	31 lbs.

Environmental Specifications

NEMA Enclosure Type:	NEMA 1 Indoor
Operating Temperature:	-40°C to 85°C

Standards and Certifications

UL 50:	Yes
UL 50E:	Yes
UL 67:	Yes
UL 869A:	Yes

Documents and Downloads
