Leviton M8300-W | Lev-Lok Duplex Receptacle Outlet, Extra Heavy-Dut...
Description
Description

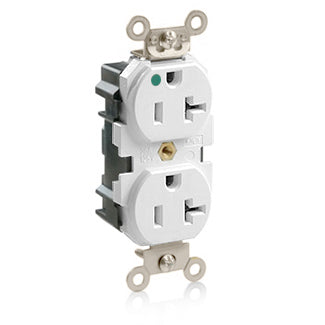

Lev-Lok Duplex Receptacle Outlet, Extra Heavy-Duty Hospital Grade, Smooth Face, 20 Amp, 125 Volt, Modular, NEMA 5-20R, 2-Pole, 3-Wire, Self-Grounding - White
Mating Lev-Lok Wiring Module Required for Use
The Lev-Lok Modular Wiring Device System is engineered for fast and easy installation. These devices employ a simple twist and lock wiring module that ensures a safe, reliable connection while at the same time providing for extremely fast and easy installation. Lev-Lok brand wiring devices address the reliability and performance concerns of specification engineers without sacrificing the contractor's need for fast, easy installation.
Product Features
| Brand: | Lev-Lok |
|---|---|
| Color: | White |
| Device Type: | Duplex Receptacle Outlet |
| Feature: | Smooth Face |
| Grade: | Extra Heavy-Duty Hospital Grade |
| Grounding: | Self-Grounding |
| NEMA: | 5-20R |
| Standards and Certifications: | C-UL-US |
| Strap Material: | Nickel Plated Brass |
Specifications
Specifications
AC Horsepower Ratings
| Horsepower Rating: | 1 HP |
|---|
Electrical Specifications
| Amperage: | 20 A |
|---|---|
| Current Interrupting: | Certified for current interrupting at full rated current |
| Current Limiting: | Full Rated Current |
| Dielectric Voltage: | Withstands 2000V per UL498 |
| Grounding: | Self-Grounding |
| Maximum Working Voltage: | 125V as rated |
| Pole: | 2 |
| Temperature Rise: | Max 30C after 250 cycles OL at 200 percent rated current |
| Voltage: | 125 VAC |
| Wire: | 3 |
Environmental Specifications
| Operating Temperature: | -40°C to 60°C |
|---|
Material Specifications
| Base Material: | Nylon |
|---|---|
| Bushing: | Solid Brass |
| Cover Material: | Nylon |
| Ground Clips: | Nickel-Plated Brass |
| Line Contacts: | 0.040” Thick Solid Brass |
| Locking Pins: | Solid Brass |
| Mounting Screws: | Triple Combination Head, Steel |
| Mounting Strap: | Single Piece Nickel-Plated Brass with integral ground contact |
| Yoke: | Nickel-Plated Brass |
Mechanical Specifications
| Product ID: | Ratings are permanently marked on device |
|---|---|
| Termination: | Modular |
Standards and Certifications
| ANCE NOM: | 57 |
|---|---|
| ANSI: | C-73 |
| CSA C22.2 No. 42: | File 152105 |
| NEMA: | WD-1 & WD-6 |
| NOM Certified: | 57 |
| UL Fed Spec WC-596: | File E13399 |
| UL498HG: | File E13399 |
| Warranty: | 10-Year Limited |
| cULus: | Listed |
