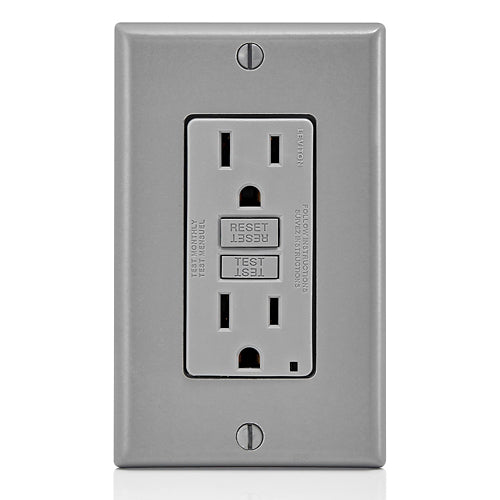

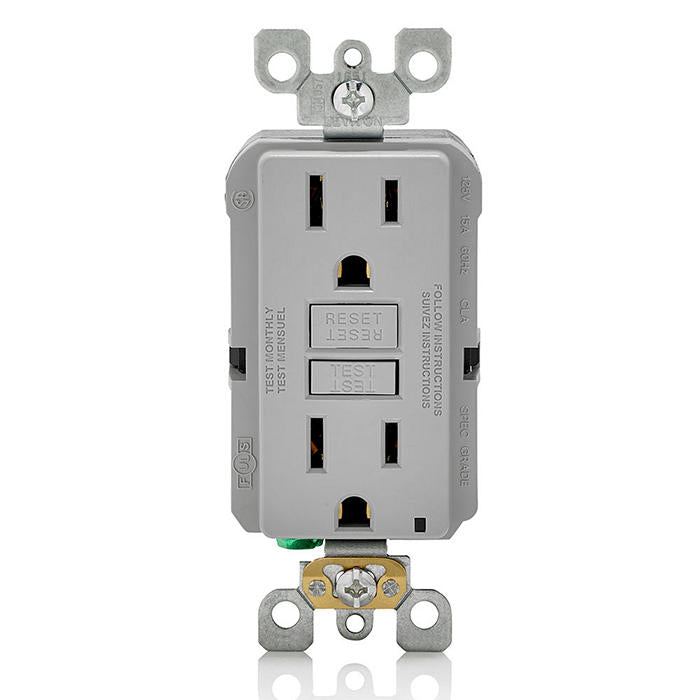

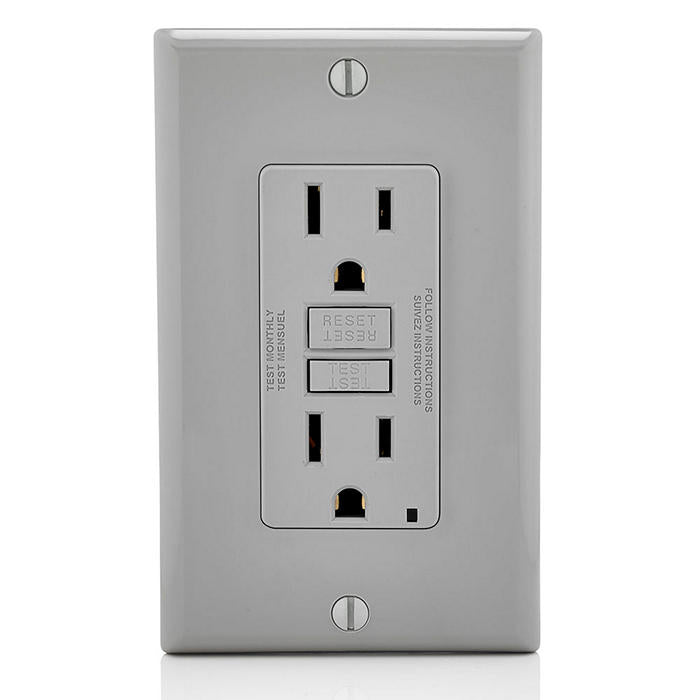

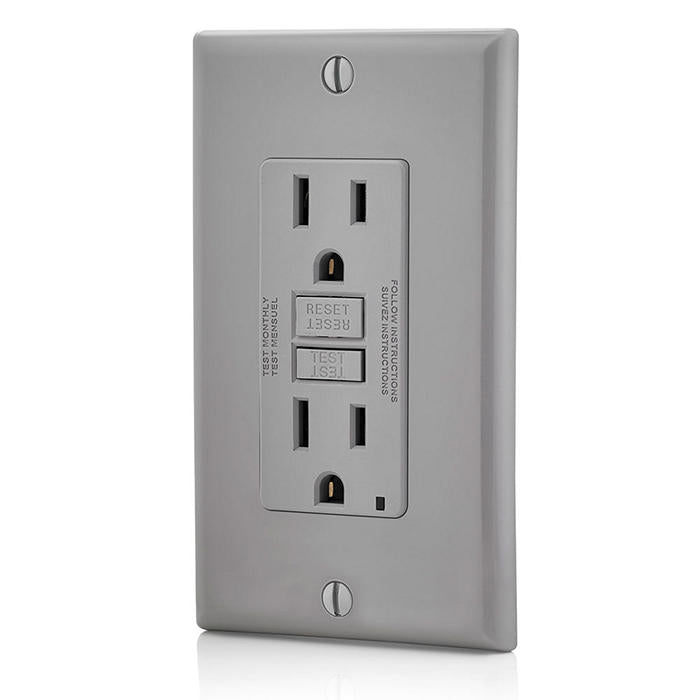

Leviton Manufacturing GFNT1-GY | 15 AMP, Self Test, Non Tamper-Resistant GFCI Outlet with LED Indicator Light
-
Low prices.
Price match guarantee
-
In-House Experts.
We know our products
-
Easy Returns.
Quick & Hassle Free
-
Superior Selection.
Extensive product catalog
Description
Description
15 Amp, 125 Volt Receptacle/Outlet, 20 Amp Feed-Through, Self-test SmartlockPro Slim GFCI, monochromatic, back and side wired, nylon wallplate/faceplate and self grounding clip included - Gray
Leviton Manufacturing - GFNT1-GY - Features
- Provides continuous ground fault protection – detects and trips on actual ground fault even when self-test is being conducted
- On initial power up, tests the GFCI within 3 seconds
- Auto-monitoring exceeds the UL requirement
- Auto adapts and shifts to more frequent testing if potential problem is detected
- Status Indicator Light provides simple, intuitive feedback on power and protection status as well as indication of line/load reversal
- Patented Lockout Action prevents reset if GFCI is damaged and cannot respond to a ground fault
- Electronics are designed to minimize any false triggers
- Reduced depth makes it easier to install in any electrical box, even shallow ones
- Terminals allow for easy wiring options – back and side wire capable
- External back wire clamps provide visual indication of proper wire seating
- Withstands high torque and resists wire pullout
- Standard brass self-grounding clip
Specifications
Specifications
Leviton Manufacturing - GFNT1-GY - Specifications
| Body Material | Polycarbonate |
|---|---|
| Clamps | Brass |
| Face Material | Thermoplastic |
| Grounding Screw | Plated Steel |
| Line Contacts | Brass Double Wipe .031 Thick |
| Notes | w/ Wallplate |
| Product ID | Ratings are permanently marked on device |
| Terminal Accom. | 14-10 AWG |
| Terminal ID | Brass-Hot, Green-Ground, Silver-Neutral |
| Terminal Screws | Plated Steel |
| Yoke | Zinc-Plated Steel |
| Amperage | 15 A |
| At Rated Voltage | 1 HP |
| Brand | SmartlockPro |
| Color | Gray |
| Feature | Self-Test |
| Grade | Residential/Commercial Specification Grade |
| Grounding | Self-Grounding |
| NEMA | 5-15R |
| Pole | 2 |
