Brand: Leviton Manufacturing Co
|
SKU:
967048
Leviton Manufacturing GFTR1-W | 15 Amp, Self Test, Tamper-Resistant Slim GFCI Outlet with LED Indicator Light
Regular price
$23.72
Unit price
Shipping calculated at checkout.
-
Low prices.
Price match guarantee
-
In-House Experts.
We know our products
-
Easy Returns.
Quick & Hassle Free
-
Superior Selection.
Extensive product catalog
Leviton Manufacturing GFTR1-W | 15 Amp, Self Test, Tamper-Resistant...
Regular price
$23.72
Unit price
Brand: Leviton Manufacturing Co
|
SKU:
967048
Regular price
$23.72
Unit price
Shipping calculated at checkout.
Description
Description

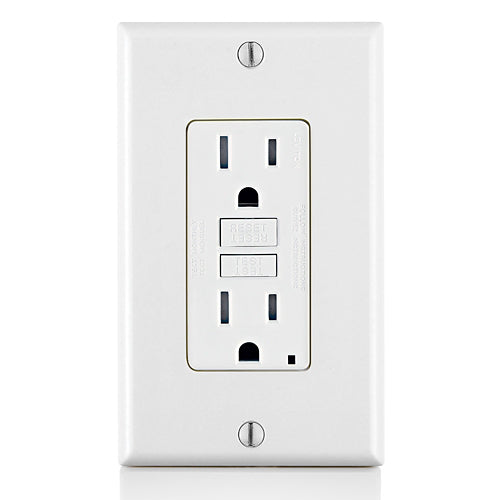

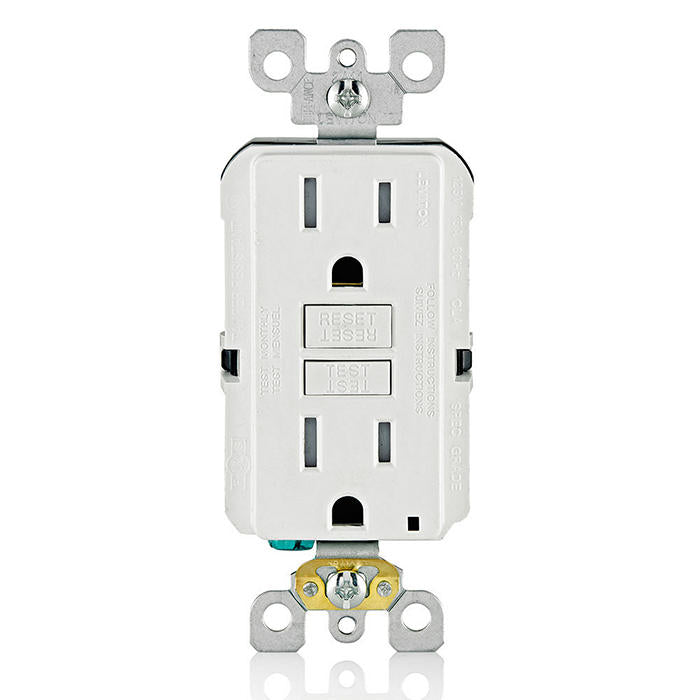

Leviton Manufacturing GFTR1-W | 15 Amp, Self Test, Tamper-Resistant Slim GFCI Outlet with LED Indicator Light
15 Amp, 125 Volt Receptacle/Outlet, 20 Amp Feed-Through, Tamper-Resistant, Self-test SmartlockPro GFCI, Monochromatic, back and side wired, nylon wallplate/faceplate, screws and self-grounding clip included - White
Leviton Manufacturing - GFTR1-W - Features
- Provides continuous ground fault protection – detects and trips on actual ground fault even when self-test is being conducted
- On initial power up, tests the GFCI within 3 seconds
- Auto-monitoring exceeds the UL requirement
- Auto adapts and shifts to more frequent testing if potential problem is detected
- Status Indicator Light provides simple, intuitive feedback on power and protection status as well as indication of line/load reversal
- Patented Lockout Action prevents reset if GFCI is damaged and cannot respond to a ground fault
- Electronics are designed to minimize any false triggers
- Reduced depth makes it easier to install in any electrical box, even shallow ones
Specifications
Specifications
Leviton Manufacturing - GFTR1-W - Specifications
| At Rated Voltage | 1 HP |
|---|---|
| Short Circuit Current Rating | 10KA |
| Body Material | Polycarbonate |
| Face Material | Thermoplastic |
| Grounding Screw | Plated Steel |
| Screw Terminal Torque | 14-18 in-lbs |
| Type | Standard |
| Voltage | 125 VAC |
| Body Material | Polycarbonate |
| Clamps | Brass |
| Face Material | Thermoplastic |
| Grounding Screw | Plated Steel |
| UNSPSC Code | 39121400 |
