Brand: Leviton Manufacturing Co
|
SKU:
9781731

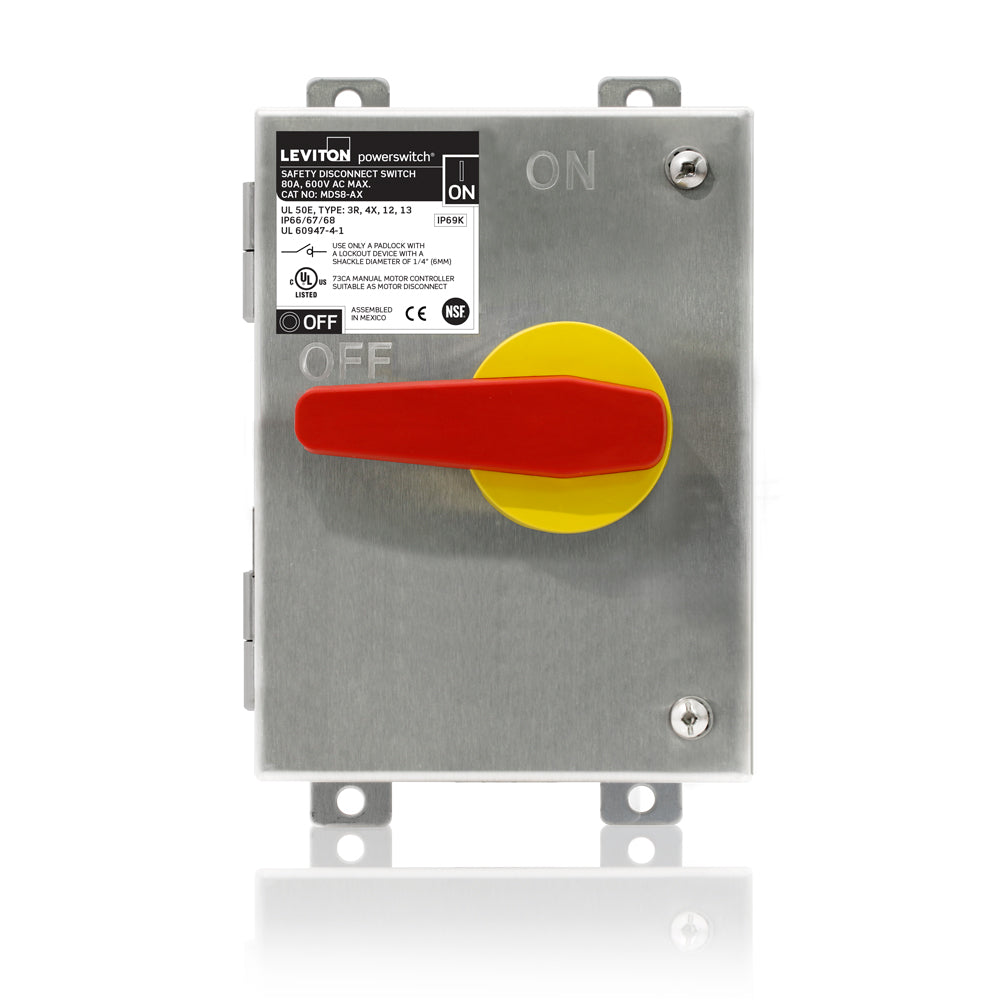

Leviton MDS8-AX | 80 Amp Non-Fused PowerSwitch Stainless Steel Disconnect Switch, 600 Volt, Type 304 Non-Magnetic Stainless Steel Enclosure
Regular price
$1,037.88
Unit price
Shipping calculated at checkout.
-
Low prices.
Price match guarantee
-
In-House Experts.
We know our products
-
Easy Returns.
Quick & Hassle Free
-
Superior Selection.
Extensive product catalog
Leviton MDS8-AX | 80 Amp Non-Fused PowerSwitch Stainless Steel Disc...
Regular price
$1,037.88
Unit price
Brand: Leviton Manufacturing Co
|
SKU:
9781731
Regular price
$1,037.88
Unit price
Shipping calculated at checkout.
Description
Description
80 Amp Non-Fused PowerSwitch Stainless Steel Disconnect Switch, 600 Volt, Type 304 Non-Magnetic Stainless Steel Enclosure
Specifications
Specifications
Standards and Certifications
| Amperage: | 80 A |
|---|---|
| CE: | CE Marked - Low Voltage Directive (LVD) 2014/35/EU |
| Current Interrupting: | Certified for full-rated current and voltage |
| Dielectric Voltage: | 1000 V plus twice rated voltage for 1 minute |
| Endurance: | 6,000 cycles inductive motor type load |
| IEC: | 60529 |
| ISO: | 20653 |
| Ingress Protection: | NEMA /UL 50E Type 3R, 4X, 12, 13 • IP66, IP67, and IP68 • IP69K (per ISO 20653) |
| NEMA: | 250 |
| NOM: | NOM-ANCE |
| NSF: | 14159-1 Hygenic Requirement for the Design of Meat & Poultry Processing Equipment |
| Short Circuit Current Rating: | 100KA |
| Voltage: | 600 VAC |
| cULus: | Listed to UL 60947-4-1 (supersedes UL 508) and CSA-C22.2 no. 60947-4-1 |
Electrical Specifications
| Amperage: | 80 A |
|---|---|
| Current Interrupting: | Certified for full-rated current and voltage |
| Dielectric Voltage: | 1000 V plus twice rated voltage for 1 minute |
| Endurance: | 6,000 cycles inductive motor type load |
| Operating Temperature: | -40°C to 75°C |
| Short Circuit Current Rating: | 100KA |
| UV Resistance: | Exposed materials are UV stabilized |
| Voltage: | 600 VAC |
Environmental Specifications
| Enclosure Material: | 16 Gauge Type 304 Stainless Steel |
|---|---|
| Enclosure Screws: | Stainless Steel |
| Gasket: | Polyurethane Formed-In-Place-Foam Gasket (FIPFG), UL 50E Approved |
| Handle Material: | Base: PBT Overmold: TPE |
| Mounting Feet: | 14 Gauge Type 304 Stainless Steel |
| Operating Temperature: | -40°C to 75°C |
| UV Resistance: | Exposed materials are UV stabilized |
Material Specifications
| Enclosure Material: | 16 Gauge Type 304 Stainless Steel |
|---|---|
| Enclosure Screws: | Stainless Steel |
| Gasket: | Polyurethane Formed-In-Place-Foam Gasket (FIPFG), UL 50E Approved |
| Handle Material: | Base: PBT Overmold: TPE |
| Mounting Feet: | 14 Gauge Type 304 Stainless Steel |
| Product ID: | Part of internal and external label |
| Terminal Accom.: | 14 - 4 AWG |
| Terminal ID: | In accordance with UL and international conventions |
Mechanical Specifications
| CE: | CE Marked - Low Voltage Directive (LVD) 2014/35/EU |
|---|---|
| IEC: | 60529 |
| ISO: | 20653 |
| NEMA: | 250 |
| NOM: | NOM-ANCE |
| NSF: | 14159-1 Hygenic Requirement for the Design of Meat & Poultry Processing Equipment |
| Product ID: | Part of internal and external label |
| Terminal Accom.: | 14 - 4 AWG |
| Terminal ID: | In accordance with UL and international conventions |
| cULus: | Listed to UL 60947-4-1 (supersedes UL 508) and CSA-C22.2 no. 60947-4-1 |
Warranty
| Warranty: | 3-Year Limited |
|---|
