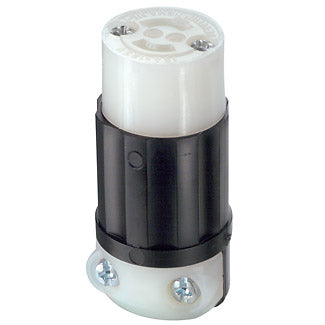

Leviton ML1-C | 15 Amp, 125 Volt, NEMA ML1R, 2P, 2W, Locking Connector, Industrial Grade, Non-Grounding, MiniLock - BLACK-WHITE
Regular price
$19.39
Unit price
Shipping calculated at checkout.
-
Low prices.
Price match guarantee
-
In-House Experts.
We know our products
-
Easy Returns.
Quick & Hassle Free
-
Superior Selection.
Extensive product catalog
Leviton ML1-C | 15 Amp, 125 Volt, NEMA ML1R, 2P, 2W, Locking Connec...
Regular price
$19.39
Unit price
Brand: Leviton Manufacturing Co
|
SKU:
9781769
Regular price
$19.39
Unit price
Shipping calculated at checkout.
Description
Description
15 Amp, 125 Volt, NEMA ML1R, 2P, 2W, Locking Connector, Industrial Grade, Non-Grounding, MiniLock - BLACK-WHITE
Leviton's Black & White line of industrial grade plugs and connectors offer superior performance, long-lasting reliability and features that are backed by a lifetime warranty. Available in many NEMA and non-NEMA configurations, you'll be sure to find the right device for your needs.
Product Features
| Brand: | Black and White |
|---|---|
| Color: | Black-White |
| Device Type: | Locking Connector |
Specifications
Specifications
Electrical Specifications
| Amperage: | 15 A |
|---|---|
| Current Interrupting: | Certified for current interrupting at full rated current |
| Dielectric Voltage: | Withstands 2000V per UL498 |
| Grounding: | Non-Grounding |
| Pole: | 2 |
| Temperature Rise: | Max 30C at 250 cycles OL at 200 pct rated current |
| Voltage: | 125 VAC |
| Wire: | 2 |
Environmental Specifications
| Environment: | Dry |
|---|---|
| Flammability: | Rated HB or better UL94 |
| Operating Temperature: | -40°C to 60°C |
Material Specifications
| Assembly Screws: | Steel, Zinc Plated |
|---|---|
| Back Cover: | Thermoplastic |
| Blades/Contacts: | Solid Brass |
| Body Material: | Impact Modified Nylon |
| Clamp Insert: | Nylon |
| Color: | Black-White |
| Cord-Clamp: | Nylon |
| Terminal Screws: | Brass |
| Wire Module: | Nylon |
Mechanical Specifications
| Cord Range: | .218 - .430 |
|---|---|
| Product ID: | Ratings and NEMA I.D. permanently marked on device |
| Screw Terminal Torque: | 10-12 in-lbs |
| Terminal Accom.: | 18-14 AWG |
| Terminal ID: | Brass-Hot, Green-Ground, Silver-Neutral |
| Wire Gauge: | 18-14 AWG |
Standards and Certifications
| ANSI: | C-73 |
|---|---|
| CSA C22.2 No. 42: | File LR-406 |
| NEMA: | WD-6 |
| NOM: | 57 |
| Warranty: | Limited Lifetime Warranty Warranty |
