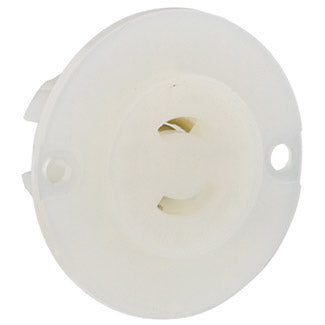

Leviton ML1-PER | 15 Amp, 125 Volt, NEMA ML-1R, 2P, W, Flanged Outlet Locking Receptacle,Industrial Grade, Non-Grounding, MiniLock - WHITE
Regular price
$24.56
Unit price
Shipping calculated at checkout.
-
Low prices.
Price match guarantee
-
In-House Experts.
We know our products
-
Easy Returns.
Quick & Hassle Free
-
Superior Selection.
Extensive product catalog
Leviton ML1-PER | 15 Amp, 125 Volt, NEMA ML-1R, 2P, W, Flanged Outl...
Regular price
$24.56
Unit price
Brand: Leviton Manufacturing Co
|
SKU:
488434
Regular price
$24.56
Unit price
Shipping calculated at checkout.
Description
Description
Leviton's Black & White Midget line of industrial grade locking blade plugs and connectors are feature rugged construction that resists impact, sunlight, chemicals and rough use. All contacts are solid one-piece construction for superior conductivity. The ergonomic, fluted-body design with radial gripping edge is ideal for gripping and pulling. The unique cord clamp accepts a wide range of cord sizes, providing a secure grip without damaging the cord. And, they are backed by a limited lifetime warranty.
Product Features
| Brand: | Black and White |
|---|---|
| Color: | White |
| Device Type: | Locking Flanged Outlet |
| NEMA: | ML-1R |
Specifications
Specifications
Electrical Specifications
| Amperage: | 15 A |
|---|---|
| Current Limiting: | Full Rated Current |
| Dielectric Voltage: | Withstands 2000V per UL498 |
| Grounding: | Non-Grounding |
| Pole: | 2 |
| Temperature Rise: | Max 30C after 250 cycles OL at 200 percent rated current |
| Voltage: | 125 VAC |
| Wire: | 2 |
Environmental Specifications
| Environment: | Dry |
|---|---|
| Flammability: | Rated HB or better UL94 |
| Operating Temperature: | -40°C to 60°C |
Material Specifications
| Body Material: | Impact Modified Nylon |
|---|---|
| Color: | White |
| Face Material: | Nylon |
| Grounding Screw: | Brass 8-32 |
| Line Contacts: | Brass .035 Thick |
| Strap Material: | Thermoplastic Nylon |
| Terminal Screws: | Brass 10-32 |
Mechanical Specifications
| Product ID: | Ratings and NEMA I.D. permanently marked on device |
|---|---|
| Terminal Accom.: | 18-14 AWG |
| Terminal ID: | Brass-Hot, Green-Ground, Silver-Neutral |
| Termination: | Back |
Standards and Certifications
| ANSI: | C-73 |
|---|---|
| CSA C22.2 No. 42: | File LR-406 |
| NEMA: | WD-6 |
| NOM: | 57 |
| UL Fed Spec WC-596: | File E13399 |
| UL498: | File E13399 |
| Warranty: | Limited Lifetime Warranty |
