Brand: Leviton Manufacturing Co | SKU: 9781720

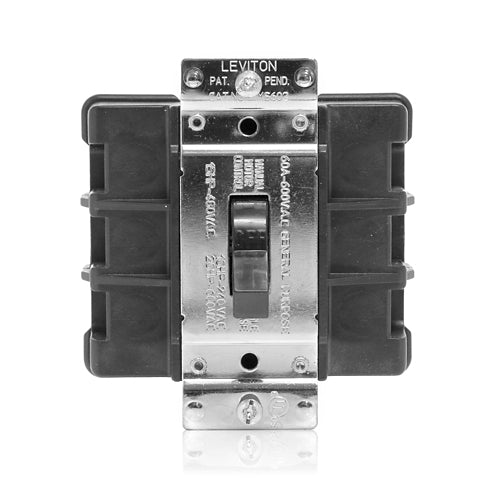

Leviton MS603-BW | Manual Motor Controller

$139.86

Description

UNSPSC Code	43223303
HP Rating	10HP-240V, 25HP-480V, 30HP-600V
Amperage	60 A
Dielectric Voltage	Withstands 2200 VAC for 1 min.
Endurance	6,000 cycles inductive motor type load
Grounding	Non-Grounding
Overload UL20 Test	50 cycles at 6 times full rated current
Pole	3
Short Circuit Current Rating	5,000 RMS symmetrical amps at 600V AC max
Temperature Rise	50ºC Max at full rated current
Voltage	600 VAC
Flammability	Rated V-0 per UL 94
Operating Temperature	-40°C to 60°C
Base Material	Thermoplastic Polyester
Contacts	Silver-Alloy
Cover Material	Thermoplastic Polyester
Strap Material	Nickel-Plated Brass
