Brand: Leviton Manufacturing Co
|
SKU:
9779517

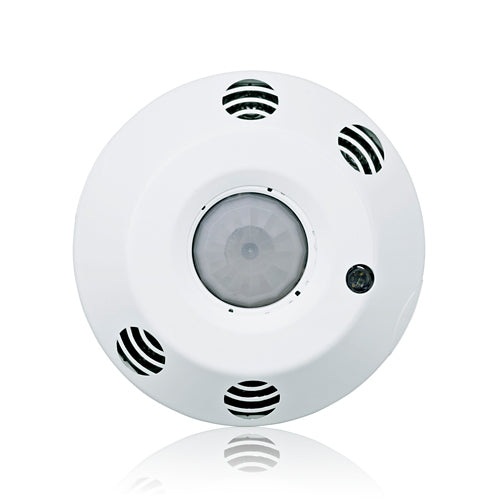

Leviton ODC20-MDW | Occupancy Sensor With Integrated Photocell, Line Voltage, Multi-Tech, Ceiling Mount, 2000Sf, 120-277V, Extended Range Lens Installed, Provolt
Regular price
$225.70
Unit price
Shipping calculated at checkout.
-
Low prices.
Price match guarantee
-
In-House Experts.
We know our products
-
Easy Returns.
Quick & Hassle Free
-
Superior Selection.
Extensive product catalog
Leviton ODC20-MDW | Occupancy Sensor With Integrated Photocell, Lin...
Regular price
$225.70
Unit price
Brand: Leviton Manufacturing Co
|
SKU:
9779517
Regular price
$225.70
Unit price
Shipping calculated at checkout.
Description
Description
Leviton ODC20-MDW | Occupancy Sensor With Integrated Photocell, Line Voltage, Multi-Tech, Ceiling Mount, 2000Sf, 120-277V, Extended Range Lens Installed, Provolt
Leviton - ODC20-MDW - Features
- Sensors combine both PIR and U/S technology for unrivaled performance and reliability. Sensors use PIR technology to initially turn lights ON, and use U/S technology to keep the lights ON. Exclusive false-detection software assures lights are ON only when needed.
- Auto-Adapting: Time delay and sensitivity are continually adjusted to occupancy pattern of use
- Configurable for Manual ON/Auto OFF or Auto ON/Auto OFF
- Delayed OFF Timer: The sensor will turn lights OFF if no motion is detected after a specified time
- Exclusive Walk-through Feature: Provides increased energy savings by not leaving the lights ON for an extended period after only momentary occupancy
- False Detection Timer: (M/T) The PIR scans for movement and shuts lights off after 31 minutes preventing false triggers from HVAC systems
- Time delay and saved settings are protected during power outages and will return to the last known state
- Output short circuit protection
- Industry-exclusive self-configuring local manual switch input: Momentary or maintained switches are supported
- Presentation Mode feature for slide or film presentations allows push buttons to turn lights OFF and keep them OFF while the room is occupied
- Adjustable Time Delay: 30s, 5min, 10min, 20min, 30min
- Test Mode for simplified commissioning
- Manual Switch and Emergency Override are Class 1 and Class 2 circuits. Class 2 circuits provided for flexibility
- Industry-exclusive "fail-safe" circuitry: In the event of product failure, Return-to-Closed feature causes the relay to default ON which eliminates life safety concerns
- Industry-exclusive H.I.S. (High Inrush Stability) technology designed to handle today’s high inrush electronic ballast loads and offer unmatched durability and service
- Robust and reliable mechanically held 10A latching relay provides dependability and robust performance for all load types and provides energy savings over electronically held relays
- Lenses are easily replaceable and color-coded red (mid-range) and black (extended range) for contractors and end-users to easily identify lenses from the ground
- Red Visual LED indicator - Blinks when infrared is detecting motion and during photocell manual calibration; solid during device malfunction
- Green Visual LED indicator - Blinks when U/S is detected; solid during auto calibration
- Yellow Visual LED indicator - Blinks during test mode; solid with emergency/BMS input
Leviton - ODC20-MDW - Specifications
| UNSPSC Code | 39122236 |
| Current Consumption | 60-30ma |
| Frequency | 50/60Hz |
| Load Rating | 120V, 50/60Hz: 8A, Electronic Ballast, 800W/VA, Tungsten, Ballast, 1/4 HP Motor - 230V, 50Hz: 6A/6AX, Electronic Ballast, Magnetic Ballast, 1200W/VA, 1/3 HP Motor - 277V, 50/60Hz: 5A, Electronic Ballast, 1200VA, 1/3 HP Motor |
| Neutral Wire Connection | Required |
| Voltage | 120/230/277 VAC |
| Relative Humidity | 0% to 90% non-condensing |
| Storage Temperature Range | -15° to 160°F (-26° to 71°C) |
| Mounting Type | Ceiling Mount |
| Size | Width 4.80" (121.92mm), Depth 2.39" (60.71mm) |
| Performance Specifications | Coverage (Sq.Ft.) |
| 2000 | Pattern |
| 360° | Application |
| Code Compliance, Auto ON/Auto OFF, Manual ON/Auto OFF | Color |
| White | Feature |
| Line Voltage | Grade |
| Commercial | Mounting |
