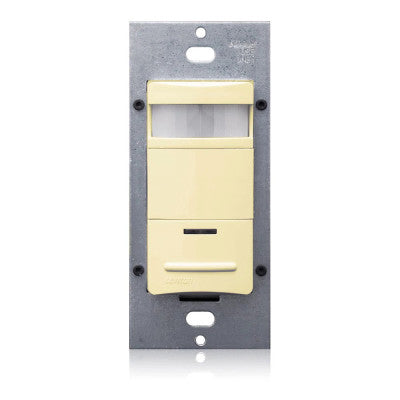

Leviton ODS15-IDI | Occupancy Sensor, PIR, Wall Switch, 2100SF, 120-277V, Ivory, Self-Adaptive, Decora

Key Features and Benefits

• Fits in standard wallbox and replaces single-pole wall switch; ground connection required. Gangable with other units.
• Low-profile design eliminates obtrusive “scanning-device” look. Elegant Decora wallplates comple-ment any interior for sleek aesthetics; uses Decora wallplates and coordinates with Leviton’s popular line of Decora wiring devices.
• 180° field-of-view provides approximately 2100 square feet of coverage suitable for small offices, conference rooms, class rooms, stock rooms, loung-es, private restrooms and a variety of commercial areas.
• Convenient pushbutton provides manual-ON/OFF light switching at any time.
• Two dual element PIR sensors used to widen detec-tion range.
• Segmented Fresnel lens provides optimum sensitivity and performance. Designed with an extensive “minor motion” area where even slight body movements will be detected.
• Vandal resistant PIR lens.
• Horizontal field-of-view may be adjusted between 180° and 60° of arc by using integral blinders located on either side of the lens. No masking tape required.
• Manual-ON/auto-OFF mode for installations where manual ON switching is required but auto-OFF switch-ing is still desired for CEC Title 24 energy savings.
• To comply with Title 24, red LED indicator light flashes when PIR sensor detects motion to verify detection is active.
• Time Delay - In adapting mode, the time delay can be configured from 30s (test mode), 5, 10, and 20 minutes. In non-adapting mode, the delay can be configured from 5, 10, 20, and 30 minutes.
• Light Sensor adjustable Ambient Light Override ranges from approxi-mately 2Fc (20LUX) to 500+FC (5000+LUX) to prevent lights from turning ON auto-matically during periods of ample natural light, increasing energy savings.
• Light sensor enables the load hold-OFF feature once level has been set.
• Self-adjusting delayed-OFF time interval compen-sates for real-time occupancy patterns, preventing unnecessary ON/OFF switching.
• Exclusive Walk-Through feature provides increased energy savings by not leaving the lights ON for an extended period after only momentary occupancy.
• Vacancy Confirmation, when the time out expires and the relays turn OFF a 30 second vacancy con-firmation exists to turn the relays back ON.
• False detection circuitry.
• Presentation Mode feature for slide or film presen-tations allows pushbuttons to turn lights OFF and keep them OFF while the room is occupied.
• Additional manual service switch provided for installer to force lights to hold-OFF or hold-ON during installation.
• Beep Warn - unit beeps 3 times after delayed-OFF time expires, then waits 10 seconds before turning lights OFF.
• Exclusive Levition H.I.S. Circuitry. Specifically designed to handle today’s high inrush electronic ballast loads and offer unmatched durability and service.
• One unit can be used for 120V through 277V light-ing. Compatible with both electronic and magnetic ballasts.
• Relay switches at the zero crossing point of the AC power curve to ensure maximum contact life and compatibility with electronic ballasts.
• No neutral design in optional for retrofit applications.
