Brand: Leviton Manufacturing Co
|
SKU:
953395

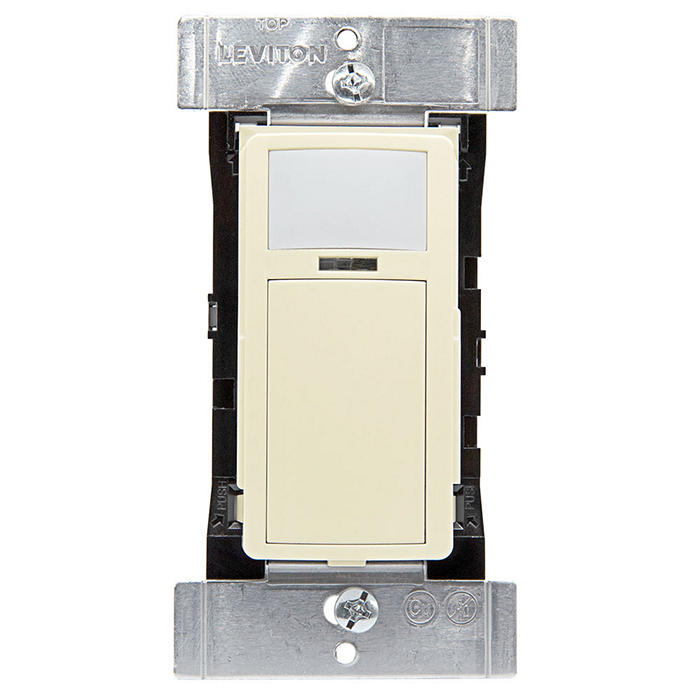

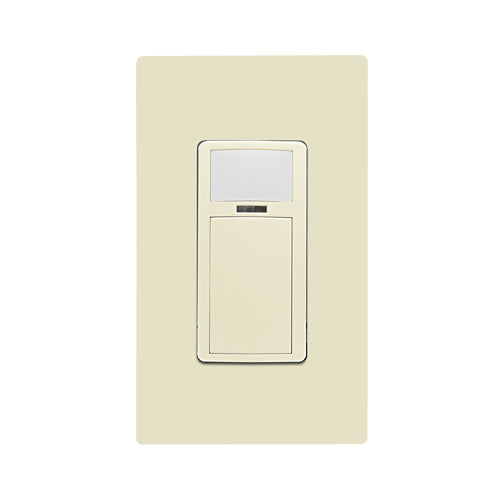

Leviton ODS15-IDI | Smart Sensor, Pir, Wallbox Occupancy Sensor/Vacancy Sensor, App Configurable, 120-277Vac, CoMMercial Grade, Ivory
Regular price
$89.18
Unit price
Shipping calculated at checkout.
-
Low prices.
Price match guarantee
-
In-House Experts.
We know our products
-
Easy Returns.
Quick & Hassle Free
-
Superior Selection.
Extensive product catalog
Leviton ODS15-IDI | Smart Sensor, Pir, Wallbox Occupancy Sensor/Vac...
Regular price
$89.18
Unit price
Brand: Leviton Manufacturing Co
|
SKU:
953395
Regular price
$89.18
Unit price
Shipping calculated at checkout.
Description
Description
Leviton ODS15-IDI | Smart Sensor, Pir, Wallbox Occupancy Sensor/Vacancy Sensor, App Configurable, 120-277Vac, CoMMercial Grade, Ivory
Leviton - ODS15-IDI - Features
- Can be used to comply with IECC, ASHRAE 90.1, and 2019 Title 24, Part 6 occupancy/vacancy sensing and manual control requirements
- Fits in a standard wallbox and gangable with other units
- Controls General Purpose plug loads up to 20A and LED lighting loads up to 10A
- One relay module for single-level switching
- 180° field-of-view provides approximately 1,100 square feet of coverage
- Maximum sensing distance in front of the sensor is 30-40 feet and 15-20 feet on either side
- Advanced configuration can be performed using the Leviton Smart Sensor App on any Bluetooth enabled Android or iOS device: Set operating mode to Auto-ON/Auto-OFF or Manual-ON/Auto-OFF
- Adjust the sensitivity of the sensor to increase or decrease coverage area
- Adjust timeouts
- Activate the nightlight and select nightlight colors
- Add daylighting hold-off and select target daylighting levels
- Set a security code to lock configuration settings
- Out-of-the-box configuration default mode: Auto-ON/Auto-OFF with 10-minute time out
- Sensitivity set to 75%
- Nightlight and daylighting disabled
Leviton - ODS15-IDI - Specifications
| UNSPSC Code | 39121400 |
| Frequency | 50/60Hz |
| Input Current | 120V: Standby: 0.2W Max: 0.5W+Load Current - 277V: Standby: 0.3W Max: 0.6W+Load Current |
| Load Rating | General Purpose @ 120V: 20A - General Purpose @ 277V: 20A - LED/Electronic Ballast @ 120V: 10A, - LED/Electronic Ballast @ 277V: 10A - Standard Ballast @ 120V: 10A - Standard Ballast @ 277V: 10A - Tungsten @ 120V: 6.67A - Tungsten @ 277V: 6.67A - Motor @ 120V: 1/4HP (FLA 5.8A) - Motor @ 277V: 1/3HP (FLA 3.0A) |
| Neutral Wire Connection | Required |
| Voltage | 120-277 VAC |
| Storage Temperature Range | -40° to 185°F (-40° to 85°C) |
| IP Rating | IP10 |
| Mounting Type | Wall Switch |
| Size | Height 4.13" (104.9mm), Width 2.12" (53.95mm), |
| Depth 1.86" (47.25mm), Install Depth 1.42" (36.22mm) | Switch Type |
| Single-Pole | Performance Specifications |
| Coverage (Sq.Ft.) | 1000 |
| Pattern | 180° |
| Application | Small Offices, Lobbies, Small Meeting Rooms |
| Color | Ivory |
