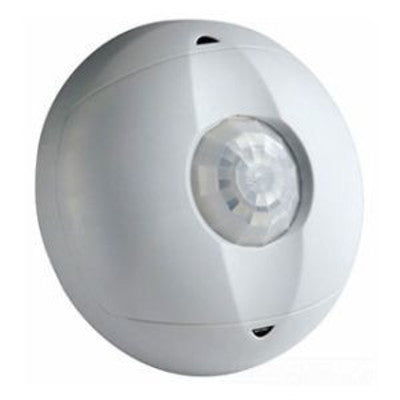

Leviton OSC04-I0W | Occupancy Sensor, PIR, Ceiling Mount, 450SF, White
Description
Description
Occupancy Sensor lighting control, Ceiling Mounted, PIR, 24VDC, 10mA power consumption, 450 sq ft, 360 deg (major motion: 24' diameter, minor motion: 10' diameter), red LED, auto adapting, walk-through, time delay 30s-30m, test mode (6s time delay for 15m with auto exit), connect gray wire for photocell ambient light hold-off, 360 degree harmonic wheel (rotatable), mounting height 8'-10', PIR, cUL/NOM/ANCE listed, CEC Title 24 compliant. Color: off white, NAFTA compliant.
The all-digital & microprocessor based OSCXX-I is the most advanced infrared ceiling sensor available. Self-calibrating sensitivity and timer allow the installer to “install & forget.”
Key Features and Benefits
- Small Size: Installed sensor appears almost invisible.
- Fast Simple Installation: Easy ceiling mount, three wire connection (low voltage) and twist-lock sensor attachment.
- Accurate, Consistant Switching: Occupant complaints are eliminated; lights are on when room is occupied, off when empty. annoying false-offs are minimized and lights on at night is eliminated.
- Self-Adapting: An internal microprocessor continually analyzes, evaluates and adjusts settings. Performance is kept at a maximum and user complaints are eliminated.
- Maximum Reliability, Low Cost: All digital circuitry uses a minimum of components.
- Non-Volatile Memory: Learned and adjusted settings saved in protected memory. Power outages will not cause status loss.
- Ambient Light Recognition: The photocell prevents lights from turning on when room is adequately lit by natural light.
- Excellent Warranty: 5-Year Limited warranty.
- Typical Applications: Closet, Copy Room, Small Office, Storage Room, Lounge, Non-Partitioned Restroom or Vending Room
Product Features
| Color: | White |
|---|---|
| Coverage (Sq.Ft.): | 450 |
| Product Line: | OSC04 |
| Sensor Type: | Ceiling Mount |
| Technology: | Passive Infrared |
Specifications
Specifications
Electrical Specifications
| Voltage: | 24 VDC |
|---|
Standards and Certifications
| Title 24 Compliant: | Yes |
|---|
Material Specifications
| Color: | White |
|---|
Mechanical Specifications
| Coverage (Sq.Ft.): | 450 |
|---|
Documents and Downloads
Documents and Downloads
- Leviton OSC04-I0W Data Sheet
- Leviton OSC04-I0W Installation Instructions
- Levition OSC04-I0W Installation Instructions - French
- Leviton OSC04-I0W Installation Instructions - Spanish
- Leviton OSC04-I0W Reference - Occupancy Sensor Technology Intro
- Leviton OSC04-I0W Dimensional Data
- Leviton OSC04-I0W Application Note - Changes in Title 24
- Leviton OSC04-I0W Application Note - Energy Policy Act of 2005
