Brand: Leviton Manufacturing Co
|
SKU:
10149908

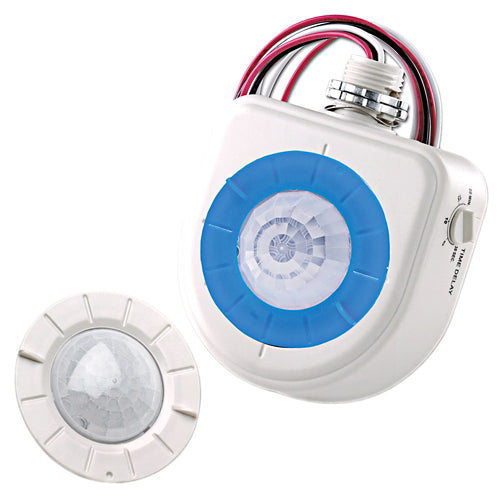

Leviton OSFHU-ITW | Occupancy Sensor, Fixture Mount, Pir, High Bay, 2 Interchangeable Lenses And Aisle Mask, White
Regular price
$72.39
Unit price
Shipping calculated at checkout.
-
Low prices.
Price match guarantee
-
In-House Experts.
We know our products
-
Easy Returns.
Quick & Hassle Free
-
Superior Selection.
Extensive product catalog
Leviton OSFHU-ITW | Occupancy Sensor, Fixture Mount, Pir, High Bay,...
Regular price
$72.39
Unit price
Brand: Leviton Manufacturing Co
|
SKU:
10149908
Regular price
$72.39
Unit price
Shipping calculated at checkout.
Description
Description
Leviton OSFHU-ITW | Occupancy Sensor, Fixture Mount, Pir, High Bay, 2 Interchangeable Lenses And Aisle Mask, White
Leviton - OSFHU-ITW - Features
- Quicksnap: built into the 1/2” nipple, this locking mechanism allows for the fastest and easiest mounting not requiring a threaded lock-nut
- Reduce time and materials: easily reach the ballast at either end of the fixture without requiring more wire or connectors with the included 21” wire leads
- Fast, easy time delay setting: can be set at any time without requiring power to the sensor; time delay is variable from 30s-20m
- Instantly verify fixture operation and wiring connections: “instant ON” closing relay fires lamps in under 5 seconds
- High Inrush Stability (H.I.S. Technology):
- Zero crossing circuitry optimizes relay operation for reliable, long-life operation
- Robust mechanical latching relay is durable for all load types
- Adjusts the PIR sensitivity as ambient temperature rises to increase detection of heat movement through the field-ofview
- Return to last state: for safety and energy savings, the OSFHU contains a latching relay so that in the event power is lost to the device, the device will return to the last known state of the relay
- False detection intelligence: for increased energy savings and to mitigate nuisance tripping, the super bright LED indicates advanced detection has been activated and the lights will only turn ON when true occupancy has been determined
Leviton - OSFHU-ITW - Specifications
| UNSPSC Code | 31000000 |
| Frequency | 50/60Hz |
| Load Rating | 800VA @ 120VAC Ballast, 1200VA @ 277VAC Ballast, 1500VA @ 347VAC Ballast, 2000VA @ 480VAC Ballast, Motor: 1/4 HP Load @ 120V |
| Neutral Wire Connection | Required |
| Voltage | 120-347 VAC |
| Wiring | Line-Black, Load-Red, Neutral-White |
| Environment | Indoor |
| Relative Humidity | 20% to 90% non-condensing |
| Storage Temperature Range | -14° to 160°F (-25° to 71°C) |
| Color | White |
| Construction | High-impact, injection molded plastic housing |
| Grade | Commercial |
| Mounting Type | Fixture Mount |
| Sensor Mounting Configuration | External |
| Size | Height 3.50" (8.99mm), Width 3.50" (8.99mm), Depth 1.25" (30.75mm) |
| Performance Specifications | Coverage (Sq.Ft.) |
