Brand: Leviton Manufacturing Co
|
SKU:
955565

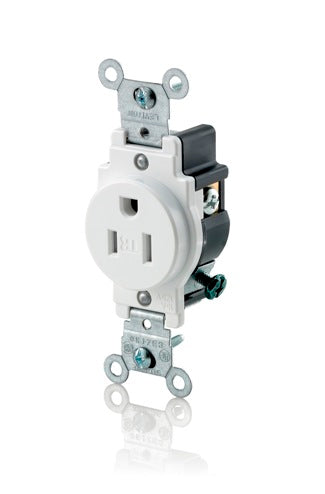

Leviton T5015-W | Single Receptacle Outlet, Commercial Specification Grade, Tamper-Resistant, Smooth Face, 15 Amp, NEMA 5-15R, 2-Pole, 3-Wire - White
Regular price
$9.45
Unit price
Shipping calculated at checkout.
-
Low prices.
Price match guarantee
-
In-House Experts.
We know our products
-
Easy Returns.
Quick & Hassle Free
-
Superior Selection.
Extensive product catalog
Leviton T5015-W | Single Receptacle Outlet, Commercial Specificatio...
Regular price
$9.45
Unit price
Brand: Leviton Manufacturing Co
|
SKU:
955565
Regular price
$9.45
Unit price
Shipping calculated at checkout.
Description
Description
Single Receptacle Outlet, Commercial Specification Grade, Tamper-Resistant, Smooth Face, 15 Amp, 125 Volt, Back and Side Wire, NEMA 5-15R, 2-Pole, 3-Wire - White
Product Features
| Color: | White |
|---|---|
| Device Type: | Single Receptacle Outlet |
| Feature: | Tamper-Resistant, Smooth Face |
| Grade: | Commercial Specification Grade |
| NEMA: | 5-15R |
Specifications
Specifications
AC Horsepower Ratings
| At Rated Voltage: | 1/2 HP |
|---|
Electrical Specifications
| Amperage: | 15 A |
|---|---|
| Current Limiting: | Full Rated Current |
| Dielectric Voltage: | Withstands 2000V per UL498 |
| Pole: | 2 |
| Temperature Rise: | Max 30C after 250 cycles OL at 200 percent rated current |
| Voltage: | 125 VAC |
| Wire: | 3 |
Environmental Specifications
| Operating Temperature: | -40°C to 60°C |
|---|
Material Specifications
| Body Material: | Thermoplastic Nylon |
|---|---|
| Clamp Nuts: | Zinc-Plated Steel |
| Color: | White |
| Face Material: | Thermoplastic Nylon |
| Ground Clips: | Brass-Plated |
| Grounding Screw: | Brass 8-32 |
| Line Contacts: | Brass Triple-Wipe |
| Strap Material: | Zinc-Plated Steel |
| Terminal Screws: | Brass 10-32 |
Mechanical Specifications
| Product ID: | Ratings are permanently marked on device |
|---|---|
| Screw Terminal Torque: | 14-18 in-lbs |
| Terminal Accom.: | 14-10 AWG |
| Terminal ID: | Brass-Hot, Green-Ground, Silver-Neutral |
| Termination: | Back and Side Wire |
Standards and Certifications
| ANSI: | C-73 |
|---|---|
| CSA C22.2 No. 42: | File 152105 |
| NEMA: | WD-6 |
| NOM: | 57 |
| UL498: | File E13399 |
| Warranty: | 10-Year Limited |
