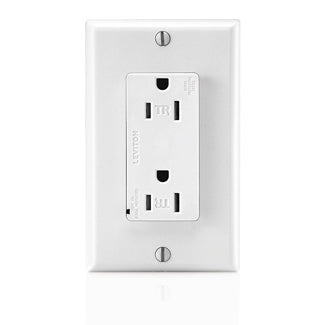

Leviton T5280-W | Decora Plus Surge Protective Duplex Receptacle Outlet, Commercial Specification Grade, Tamper-Resistant, Self-Grounding - White
-
Low prices.
Price match guarantee
-
In-House Experts.
We know our products
-
Easy Returns.
Quick & Hassle Free
-
Superior Selection.
Extensive product catalog
Leviton T5280-W | Decora Plus Surge Protective Duplex Receptacle Ou...
Description
Description
Decora Plus Surge Protective Duplex Receptacle Outlet, Commercial Specification Grade, Tamper-Resistant, 15 Amp, 125 Volt, Back or Side Wire, NEMA 5-15R, 2-Pole, 3-Wire, Self-Grounding - White
Leviton’s Surge Protection Devices can be used individually or as part of a coordinated application strategy, to protect sensitive electronic equipment, in industrial, commercial and residential locations, from the stress and degradation inflicted by voltage transients. Leviton Surge Protection Devices are compliant with UL 1449 Standards. Leviton’s outstanding Surge Protection Devices divert damaging voltage transients, or surges, away from electronic equipment. Transients are diverted away from sensitive micro circuitry, providing protection against catastrophic failure, costly downtime and data disruptions.
Product Features
| Brand: | Decora Plus |
|---|---|
| Color: | White |
| Device Type: | Duplex Receptacle Outlet |
| Feature: | Tamper-Resistant |
| Function: | Surge Protective |
| Grade: | Commercial Specification Grade |
| NEMA: | 5-15R |
Specifications
Specifications
Electrical Specifications
| Amperage: | 15 A |
|---|---|
| Current Limiting: | Full Rated Current |
| Dielectric Voltage: | Withstands 2000V per UL498 |
| Grounding: | Self-Grounding |
| Pole: | 2 |
| Temperature Rise: | Max 30C after 250 cycles OL at 200 percent rated current |
| Voltage: | 125 VAC |
| Wire: | 3 |
Environmental Specifications
| Operating Temperature: | -40°C to 60°C |
|---|
Material Specifications
| Body Material: | Polycarbonate |
|---|---|
| Clamp Nuts: | Zinc-Plated Steel |
| Face Material: | Nylon |
| Ground Clips: | Brass-Plated Steel |
| Grounding Screw: | Brass-Plated Steel |
| Line Contacts: | Brass Triple-Wipe |
| Shutter Mechanism: | Delrin® Acetal |
| Terminal Screws: | Brass-Plated Steel |
| Yoke: | Zinc-Plated Steel |
Mechanical Specifications
| Product ID: | Ratings are permanently marked on device |
|---|---|
| Screw Terminal Torque: | 14-18 in-lbs |
| Terminal Accom.: | 14-10 AWG |
| Terminal ID: | Brass-Hot, Green-Ground, Silver-Neutral |
| Termination: | Back or Side Wire |
| Torque Range: | 14-16 inch pounds |
Performance Data
| Diagnostics: | Indicator Light |
|---|---|
| Joules Rating: | 720 |
| MCOV: | 150V rms |
| Maximum Surge Current, Per Mode (Per Phase): | 27kA (L-N:18kA, L-G:9kA) |
| Noise Rejection: | -30dB at 500kHz-30MHz |
| Nominal Discharge Current Rating: | 3kA |
| Short Circuit Current Rating: | 5kA |
| VPR: | L-N: 600V, L-G: 700V, N-G: 600V |
Standards and Certifications
| ANSI: | C-73 |
|---|---|
| Agency Certifications: | UL 498, UL 1449 3rd Edition Listed and CSA C22.2 Certified Type 3 |
| NEMA: | WD-6 |
| NOM: | 57 |
Warranty
| Warranty: | 5-Year Limited |
|---|
