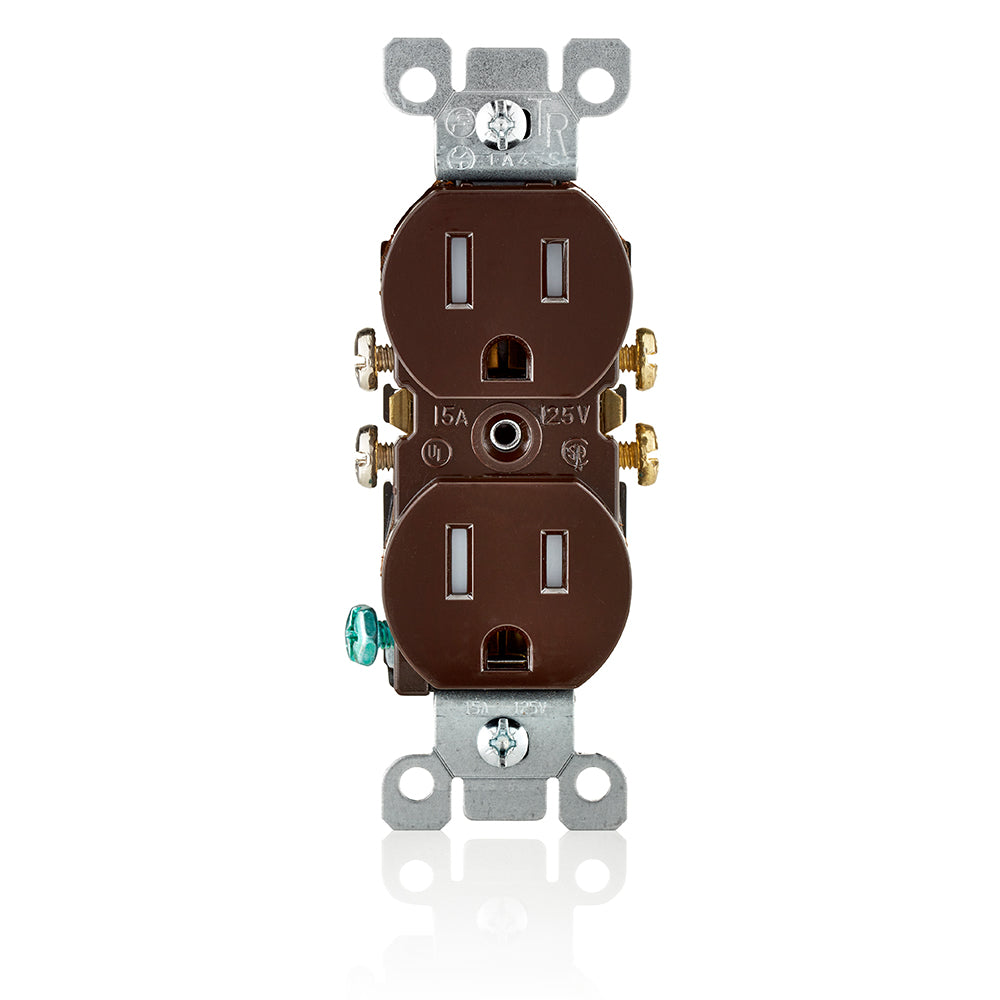

Leviton T5320 | 15 Amp Tamper-Resistant Duplex Outlet
Regular price
$3.00
Unit price
Brand: Leviton Manufacturing Co
|
SKU:
955459
Regular price
$3.00
Unit price
Description
Description
15 Amp, 125 Volt, NEMA: 5-15R, Pole: 2, 3-Wire, Tamper-Resistant, Duplex Receptacle/Outlet, Straight Blade, Grounding, Quickwire Push-In & Side, Standards and Certifications: UL/CSA, Warranty: 2 Year Limited, NEC compliant – Brown
- SAFE – Tamper-resistant offers protection from electrical shocks
- DURABLE – Impact-resistant thermoplastic nylon construction
- EASY – Quickwire push-in and side wiring for easy installation
- CONVENIENT – TR symbol on strap assures they meet the latest NEC requirements
Key Features and Benefits
- Terminal screws accept up to #12 AWG copper or copper-clad wire
- Quickwire push-in terminals accept #14 AWG solid copper wire only
- Shallow depth for maximum wiring room
- Heavy-gauge zinc-plated steel mounting strap
- Additional material added to strap to help reinforce and prevent excessive bending of the break-off tabs
- Shutter mechanism inside the receptacle blocks access to the contacts unless a two-prong plug is inserted, helping ensure hairpins, keys, etc., will be locked out
- TR symbol on strap assures they meet the latest NEC requirements
- Ultrasonic welding, heavy-duty construction offers long, trouble-free service life
- Limited 2-year warranty
Product Features
| Amperage: | 15 A |
|---|---|
| Blade Type: | Straight Blade |
| Color: | Brown |
| Device Type: | Duplex Receptacle |
| Feature: | Tamper-Resistant |
| Grounding: | Grounding |
| NEMA: | 5-15R |
| Pole: | 2 |
| Termination: | Quickwire Push-In & Side |
| Torque Range: | 14 – 18 in.-lbs |
| Type: | Duplex Receptacle |
| Voltage: | 125 VAC |
| Warranty: | 2-Year Limited |
| Wire: | 3 |
Specifications
Specifications
Standards and Certifications
| CSA C22.2 No. 42: | File 152105; Class 6233-01 |
|---|---|
| NOM: | NOM Certified |
| UL 498: | File E13399 |
