Brand: Leviton Manufacturing Co
|
SKU:
970433

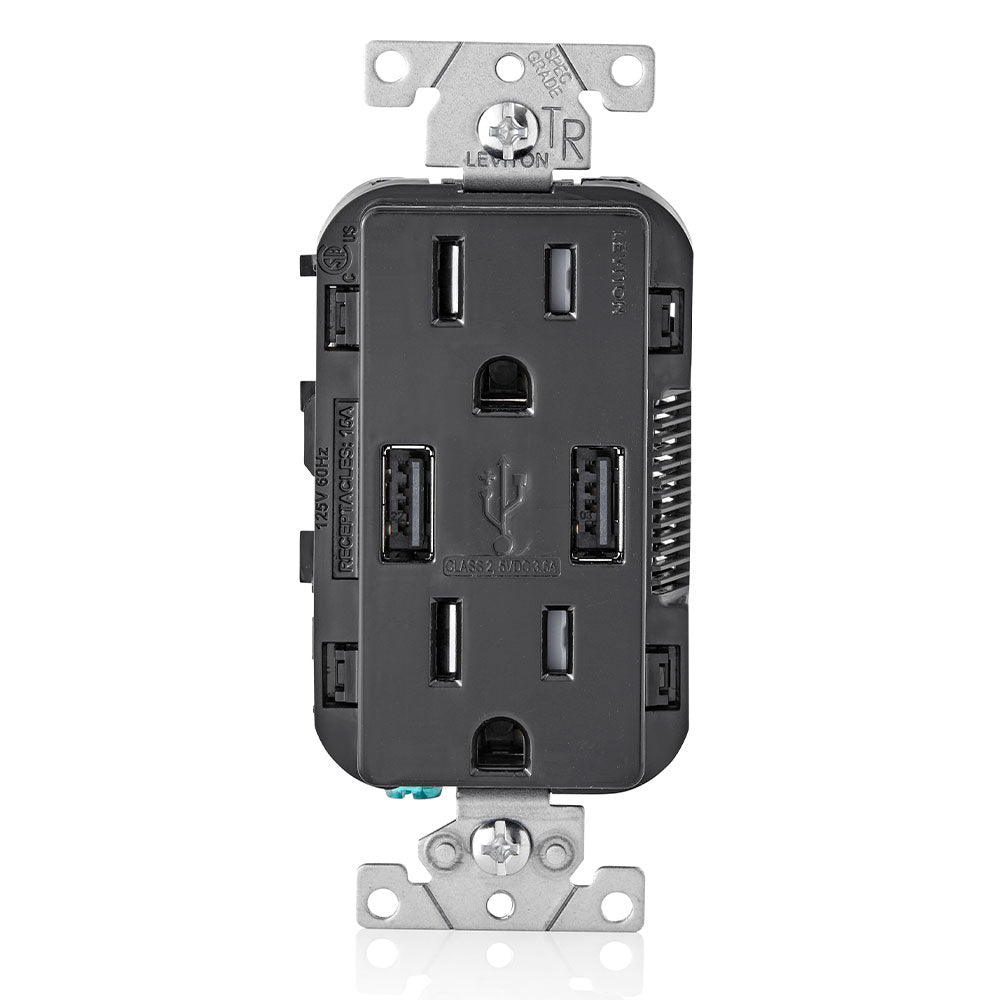

Leviton T5632-E | 3.6A USB Type-A/Type-A Wall Outlet Charger with 15A Tamper-Resistant Receptacles
Regular price
$33.95
Unit price
-
Low prices.
Price match guarantee
-
In-House Experts.
We know our products
-
Easy Returns.
Quick & Hassle Free
-
Superior Selection.
Extensive product catalog
Leviton T5632-E | 3.6A USB Type-A/Type-A Wall Outlet Charger with 1...
Regular price
$33.95
Unit price
Brand: Leviton Manufacturing Co
|
SKU:
970433
Regular price
$33.95
Unit price
Description
Description
Combination Duplex Receptacle/Outlet and USB Charger. 15 Amp, 125 Volt, Decora Tamper-Resistant Receptacle/Outlet, NEMA 5-15R. 3.6 Amps, 5VDC, 2.0 Type A USB Chargers. Grounding, Side Wired & Back Wired - Black
- SMART - Built-in smart chip recognizes the individual device’s charging requirement to optimize the charge
- POWERFUL – Two high-powered charging ports with 3.6A of charging power
- CONVENIENT – No more searching for charging adapters! Upgrade your existing outlets so you can charge up to two USB powered electronics at once, leaving the outlets free for additional power needs
- EASY - Compact design fits in a standard wallbox and works with Decora and Decora Plus screwless wallplates.
Key Features and Benefits
- Perfect for use in residential applications such as kitchens, bedrooms and home offices and in commercial applications such as hotels, airports, restaurants and cafes, salons, office cubicles and college dorm rooms
- Smart chip recognizes and optimizes the charging requirements of individual devices
- Tested to withstand over 10,000 insertions.
- Compatible with USB 3.1, 3.0, 2.0, 1.1 devices
- Fits in a standard wallbox, is compatible with standard wallplates and can be multi-ganged with other devices
- Easy to install. Can replace existing outlets
- No data transfer capability
- Compatible with Decora® wallplates and Decora Plus™ screwless wallplates. Wallplate sold separately
Product Features
| Amperage: | 15 A |
|---|---|
| Brand: | Decora |
| Grade: | Residential/Commercial Specification Grade |
| Grounding: | Grounding |
| Horsepower Rating: | 15A-1/2 HP |
| NEMA: | 5-15R |
| Product Type: | Outlet/USB Combo |
| Ratings: | 15A-125V |
| Type: | Type A/A Duplex Receptacle |
| Voltage: | 125 VAC |
| Wallplate: | Not Included |
Specifications
Specifications
Electrical Specifications
| Amperage: | 15 A |
|---|---|
| Flammability: | Rated V-0 per UL 94 |
| Grounding: | Grounding |
| Horsepower Rating: | 15A-1/2 HP |
| Operating Temperature: | -10°C to 40°C |
| Ratings: | 15A-125V |
Environmental Specifications
| Body Material: | Thermoplastic |
|---|---|
| Color: | Black |
| Cover Material: | Thermoplastic |
| Flammability: | Rated V-0 per UL 94 |
| Operating Temperature: | -10°C to 40°C |
| Strap Material: | Steel |
Material Specifications
| Amperage: | 15 A |
|---|---|
| Body Material: | Thermoplastic |
| Color: | Black |
| Cover Material: | Thermoplastic |
| Product ID: | Stamped on Strap |
| Strap Material: | Steel |
| Terminal Accom.: | 14-12 AWG |
| Termination: | Back & Side |
| Torque Range: | 14 – 18 in.-lbs |
Mechanical Specifications
| Amperage: | 15 A |
|---|---|
| Color: | Black |
| Grade: | Residential/Commercial Specification Grade |
| Product ID: | Stamped on Strap |
| Terminal Accom.: | 14-12 AWG |
| Termination: | Back & Side |
| Torque Range: | 14 – 18 in.-lbs |
Standards and Certifications
| FCC Part 15: | Class B |
|---|---|
| Listed: | cCSAus |
| NOM: | 57 |
| UL 1310: | Yes |
| UL 498: | Yes |
| Warranty: | 2-Year Limited |
