Brand: Leviton Manufacturing Co
|
SKU:
10149061

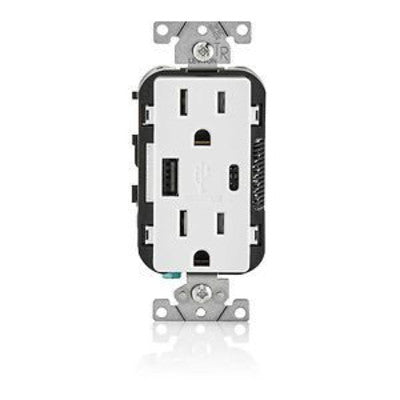

Leviton T5633-W | 5.1A USB Type A/Type-C Wall Outlet Charger with 15A Tamper-Resistant Outlet
Regular price
$39.17
Unit price
Shipping calculated at checkout.
-
Low prices.
Price match guarantee
-
In-House Experts.
We know our products
-
Easy Returns.
Quick & Hassle Free
-
Superior Selection.
Extensive product catalog
Leviton T5633-W | 5.1A USB Type A/Type-C Wall Outlet Charger with 1...
Regular price
$39.17
Unit price
Brand: Leviton Manufacturing Co
|
SKU:
10149061
Regular price
$39.17
Unit price
Shipping calculated at checkout.
Description
Description
15 Amp, 125 Volt, Decora Tamper-Resistant Outlet. NEMA 5-15R, 25+W (5.1 Amp), Type A and Type-C USB In Wall Charger, Grounding, Side Wired & Back Wired - White
- SMART – Built-in smart chip recognizes the individual device’s charging requirements to optimize the charge (Does not provide Power Delivery. See Leviton T5635
- POWERFUL - Two high-powered charging ports deliver a combined total of 5.1A charging current and 25+ watts of power
- CONVENIENT – No more searching for charging adapters! Upgrade so you can charge electronics leaving the outlets free for additional power needs
- THE FUTURE OF CHARGING – USB Type-C provides faster charging and is emerging as the standard port on many phones, tablets and laptops
- ENHANCED SAFETY – Built-in overcurrent protection helps protect electronics from receiving too much power, which can damage the device
Key Features and Benefits
- Ideal for residential and commercial applications including kitchens, bedrooms, home offices, college dormitories, airport lounges, hospitals, salons and spas, hotels, meeting rooms, cafes, restaurants and more
- Smart chip technology recognizes and optimizes the charging requirements of individual devices including Apple, Samsung, Nexus, Pixel and more
- One Type A Port and one Type-C Port; combined total of 5.1A of charging power
- Type-C Port can charge maximum 3 Amps @ 5V
- Type A Port can charge maximum 2.4 Amps @ 5V
- Tamper-Resistant improves child safety – built-in shutter prevents access by most non-rated/foreign objects
- USB Ports tested to withstand over 10,000 insertions
- Charges most Type A and Type-C USB powered devices
- Type-C Port permits the cables to be inserted easily in either direction
- Charging time may be affected by the charge cord used. Leviton recommends using the cord provided with the device
- Compatible with Decora wallplates and Decora Plus screwless wallplates
- Compatible with USB 3.1, 3.0, 2.0, 1.1 devices
- No data transfer capability
- Compatible with Decora wallplates and Decora Plus screwless wallplates. Wallplate sold separately
Product Features
| Amperage: | 15 A |
|---|---|
| Brand: | Decora |
| Color: | White |
| Flammability: | Rated V-0 per UL 94 |
| Grade: | Residential/Commercial Specification Grade |
| NEMA: | 5-15R |
| Operating Temperature: | -10°C to 40°C |
| Product Type: | Outlet/USB Combo |
| Type: | Type A/C Duplex Receptacle |
| Voltage: | 125 VAC |
| Wallplate: | Not Included |
Specifications
Specifications
Electrical Specifications
| Amperage: | 15 A |
|---|---|
| Body Material: | Thermoplastic |
| Color: | White |
| Cover Material: | Thermoplastic |
| Grounding: | Grounding |
| Horsepower Rating: | 15A-1/2 HP |
| Ratings: | 15A-125V |
| Strap Material: | Steel |
| Voltage: | 125 VAC |
Environmental Specifications
| Flammability: | Rated V-0 per UL 94 |
|---|---|
| Operating Temperature: | -10°C to 40°C |
| Product ID: | Stamped on Strap |
| Terminal Accom.: | 14-12 AWG |
| Terminal ID: | Brass-Hot Black-Hot White-Neutral Green-Gnd |
| Termination: | Back & Side |
| Torque Range: | 14 – 18 in.-lbs |
Material Specifications
| Body Material: | Thermoplastic |
|---|---|
| Color: | White |
| Cover Material: | Thermoplastic |
| Grade: | Residential/Commercial Specification Grade |
| Strap Material: | Steel |
Mechanical Specifications
| Listed: | cCSAus |
|---|---|
| NOM: | 57 |
| Product ID: | Stamped on Strap |
| Terminal Accom.: | 14-12 AWG |
| Terminal ID: | Brass-Hot Black-Hot White-Neutral Green-Gnd |
| Termination: | Back & Side |
| Torque Range: | 14 – 18 in.-lbs |
| Warranty: | 2-Year Limited |
Standards and Certifications
| FCC Part 15: | Class B |
|---|---|
| Listed: | cCSAus |
| NOM: | 57 |
| UL 1310: | Yes |
| UL 498: | Yes |
| Warranty: | 2-Year Limited |
