Brand: Leviton Manufacturing Co
|
SKU:
927790

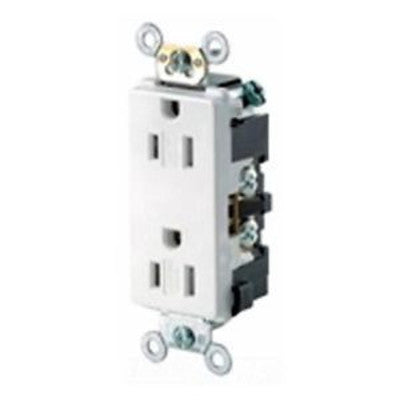

Leviton TDR15-W | Decora Plus Duplex Receptacle Outlet, Heavy-Duty Industrial Specification Grade, Tamper-Resistant, Smooth Face, White
Regular price
$18.45
Unit price
Shipping calculated at checkout.
-
Low prices.
Price match guarantee
-
In-House Experts.
We know our products
-
Easy Returns.
Quick & Hassle Free
-
Superior Selection.
Extensive product catalog
Leviton TDR15-W | Decora Plus Duplex Receptacle Outlet, Heavy-Duty ...
Regular price
$18.45
Unit price
Brand: Leviton Manufacturing Co
|
SKU:
927790
Regular price
$18.45
Unit price
Shipping calculated at checkout.
Description
Description
Decora Plus Duplex Receptacle Outlet, Heavy-Duty Industrial Specification Grade, Tamper-Resistant, Smooth Face, 15 Amp, 125 Volt, Back and Side Wire, NEMA 5-15R, 2-Pole, 3-Wire, Self-Grounding - White
Product Features
| ANSI: | C-73 |
|---|---|
| Applicable Standards: | UL 498, Fed Spec W-C-596, CSA C22.2. No. 42 |
| Brand: | Decora Plus |
| Certification/Listing: | cULus, NOM-ANCE |
| Color: | White |
| Color / Feature: | White |
| Device Type: | Duplex Receptacle Outlet |
| Feature: | Tamper-Resistant, Smooth Face |
| Grade: | Heavy-Duty Industrial Specification Grade |
| RoHS: | RoHS Compliant |
Specifications
Specifications
Warranty
| Horsepower Rating: | 1/2 HP |
|---|---|
| Warranty: | 10-Year Limited |
AC Horsepower Ratings
| Amperage: | 15 A |
|---|---|
| Dielectric Voltage: | Withstands 3000 V minimum |
| Grounding: | Self-Grounding |
| Horsepower Rating: | 1/2 HP |
| Pole: | 2 |
| Temperature Rise: | Max 30 °C temperature rise at full rated current |
| Voltage: | 125 VAC |
| Wire: | 3 |
Electrical Specifications
| Amperage: | 15 A |
|---|---|
| Dielectric Voltage: | Withstands 3000 V minimum |
| Flammability: | Rated V-0 per UL 94 |
| Grounding: | Self-Grounding |
| Operating Temperature: | -40°C to 75°C |
| Pole: | 2 |
| Temperature Rise: | Max 30 °C temperature rise at full rated current |
| Voltage: | 125 VAC |
| Wire: | 3 |
Environmental Specifications
| Body Material: | PBT Polyester Blend |
|---|---|
| Color: | White |
| Face Material: | PBT Polyester Blend |
| Flammability: | Rated V-0 per UL 94 |
| Ground Clips: | Brass |
| Ground Contacts: | 0.030" Brass |
| Grounding Screw: | #8 Hex Head, Triple-Drive Brass |
| Line Contacts: | Phosphor Bronze Triple Wipe 0.031 |
| Mounting Screws: | Triple-Drive Plated Steel |
| Operating Temperature: | -40°C to 75°C |
| Shutter Mechanism: | Acetal |
| Strap Material: | Steel (Galvanized G60) |
| Terminal Clamps: | Brass |
| Terminal Screws: | #8 Triple-Drive Brass |
Material Specifications
| Body Material: | PBT Polyester Blend |
|---|---|
| Face Material: | PBT Polyester Blend |
| Ground Clips: | Brass |
| Ground Contacts: | 0.030" Brass |
| Grounding Screw: | #8 Hex Head, Triple-Drive Brass |
| Line Contacts: | Phosphor Bronze Triple Wipe 0.031 |
| Mounting Screws: | Triple-Drive Plated Steel |
| Product ID: | Ratings are permanently marked on device |
| Shutter Mechanism: | Acetal |
| Strap Material: | Steel (Galvanized G60) |
| Terminal Accom.: | #14 AWG - #10 AWG |
| Terminal Clamps: | Brass |
| Terminal ID: | Brass - Hot, Silver - Neutral, Green - Ground, |
| Terminal Screws: | #8 Triple-Drive Brass |
| Termination: | Back and Side Wire |
| Wire Type: | Stranded or Solid |
Mechanical Specifications
| Brand: | Decora Plus |
|---|---|
| Color: | White |
| Color / Feature: | White |
| Device Type: | Duplex Receptacle Outlet |
| Grade: | Heavy-Duty Industrial Specification Grade |
| Product ID: | Ratings are permanently marked on device |
| Screw Terminal Torque: | 14-18 in-lbs |
| Terminal Accom.: | #14 AWG - #10 AWG |
| Terminal ID: | Brass - Hot, Silver - Neutral, Green - Ground, |
| Termination: | Back and Side Wire |
| Wire Type: | Stranded or Solid |
Standards and Certifications
| ANSI: | C-73 |
|---|---|
| Applicable Standards: | UL 498, Fed Spec W-C-596, CSA C22.2. No. 42 |
| Certification/Listing: | cULus, NOM-ANCE |
| RoHS: | RoHS Compliant |
