Brand: Leviton Manufacturing Co
|
SKU:
927800

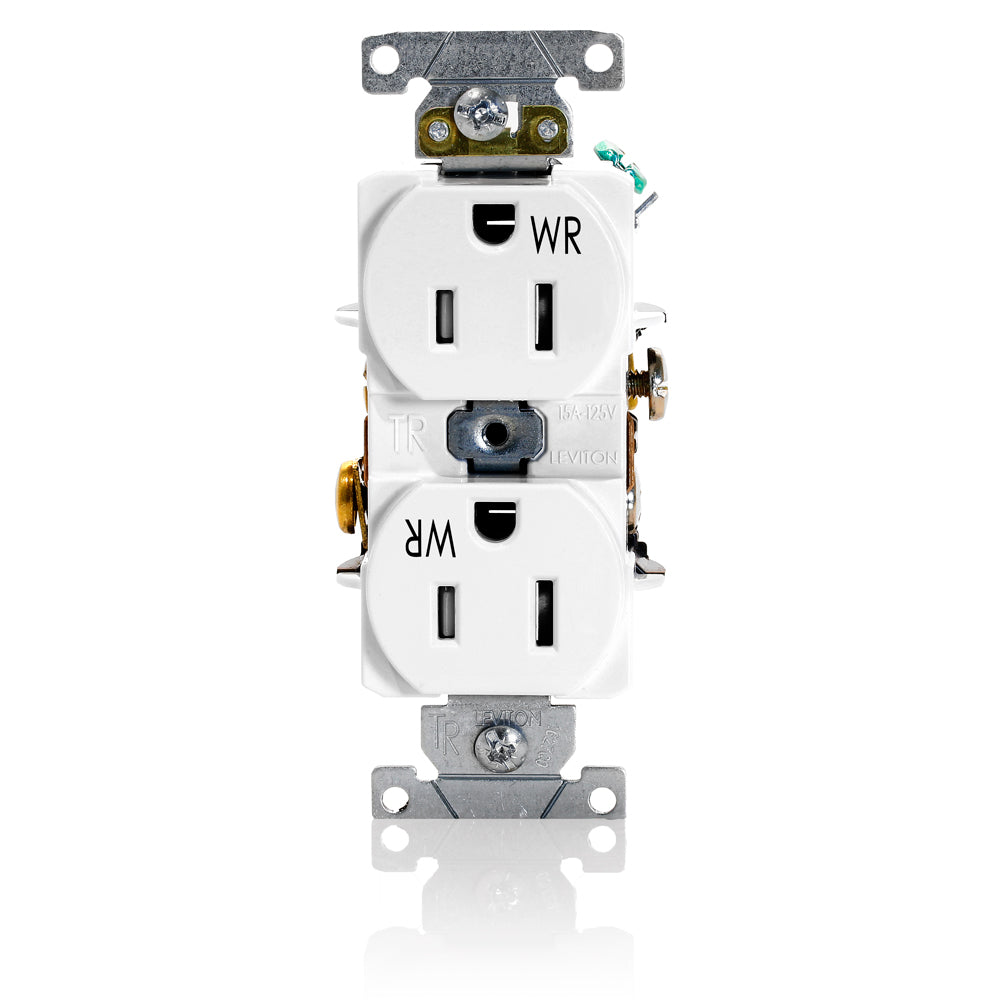

Leviton TWR15-W | Duplex Receptacle Outlet, Heavy-Duty Industrial Specification Grade, Weather and Tamper-Resistant, Self-Grounding - White
Regular price
$15.51
Unit price
Shipping calculated at checkout.
-
Low prices.
Price match guarantee
-
In-House Experts.
We know our products
-
Easy Returns.
Quick & Hassle Free
-
Superior Selection.
Extensive product catalog
Leviton TWR15-W | Duplex Receptacle Outlet, Heavy-Duty Industrial S...
Regular price
$15.51
Unit price
Brand: Leviton Manufacturing Co
|
SKU:
927800
Regular price
$15.51
Unit price
Shipping calculated at checkout.
Description
Description
Duplex Receptacle Outlet, Heavy-Duty Industrial Specification Grade, Weather and Tamper-Resistant,Smooth Face, 15 Amp, 125 Volt, Back or Side Wire, NEMA 5-15R, 2-Pole, 3-Wire, Self-Grounding - White
Product Features
| ANSI: | C-73 |
|---|---|
| Applicable Standards: | UL 498, Fed Spec W-C-596, CSA C22.2. No. 42 |
| Certification/Listing: | cULus, NOM-ANCE |
| Color: | Ivory |
| Color / Feature: | Black |
| Device Type: | Duplex Receptacle Outlet |
| Feature: | Weather-Resistant, Smooth Face, Tamper-Resistant |
| Grade: | Heavy-Duty Industrial Specification Grade |
| NEMA: | 5-15R |
| RoHS: | RoHS Compliant |
Specifications
Specifications
Warranty
| Horsepower Rating: | 1/2 HP |
|---|---|
| Warranty: | 10-Year Limited |
AC Horsepower Ratings
| Amperage: | 15 A |
|---|---|
| Dielectric Voltage: | Withstands 3000 V minimum |
| Grounding: | Self-Grounding |
| Horsepower Rating: | 1/2 HP |
| Pole: | 2 |
| Temperature Rise: | Max 30 °C after 250 cycles OL at 200 percent rated current |
| Voltage: | 125 VAC |
| Wire: | 3 |
Electrical Specifications
| Amperage: | 15 A |
|---|---|
| Dielectric Voltage: | Withstands 3000 V minimum |
| Flammability: | Rated V-0 per UL 94 |
| Grounding: | Self-Grounding |
| Operating Temperature: | -40°C to 75°C |
| Pole: | 2 |
| Temperature Rise: | Max 30 °C after 250 cycles OL at 200 percent rated current |
| Voltage: | 125 VAC |
| Wire: | 3 |
Environmental Specifications
| Body Material: | PBT Polyester Blend |
|---|---|
| Color: | Ivory |
| Face Material: | PBT Polyester Blend |
| Flammability: | Rated V-0 per UL 94 |
| Ground Clips: | Brass |
| Ground Contacts: | 0.030" Brass |
| Grounding Screw: | #8 hex head, triple drive Brass |
| Line Contacts: | 0.030" Phosphor Bronze |
| Mounting Screws: | Triple-Drive Plated Steel |
| Operating Temperature: | -40°C to 75°C |
| Strap Material: | Steel |
| Terminal Clamps: | Brass |
| Terminal Screws: | #8 Triple-Drive Brass |
Material Specifications
| Body Material: | PBT Polyester Blend |
|---|---|
| Face Material: | PBT Polyester Blend |
| Ground Clips: | Brass |
| Ground Contacts: | 0.030" Brass |
| Grounding Screw: | #8 hex head, triple drive Brass |
| Line Contacts: | 0.030" Phosphor Bronze |
| Mounting Screws: | Triple-Drive Plated Steel |
| Product ID: | Ratings are permanently marked on device |
| Strap Material: | Steel |
| Terminal Accom.: | #14 AWG - #10 AWG |
| Terminal Clamps: | Brass |
| Terminal ID: | Brass - Hot, Green - Ground, Silver - Neutral |
| Terminal Screws: | #8 Triple-Drive Brass |
| Termination: | Back or Side Wire |
| Wire Type: | Stranded or Solid |
Mechanical Specifications
| Color: | Ivory |
|---|---|
| Color / Feature: | Black |
| Device Type: | Duplex Receptacle Outlet |
| Feature: | Weather-Resistant, Smooth Face, Tamper-Resistant |
| Grade: | Heavy-Duty Industrial Specification Grade |
| NEMA: | 5-15R |
| Product ID: | Ratings are permanently marked on device |
| Screw Terminal Torque: | 14-18 in-lbs |
| Terminal Accom.: | #14 AWG - #10 AWG |
| Terminal ID: | Brass - Hot, Green - Ground, Silver - Neutral |
| Termination: | Back or Side Wire |
| Wire Type: | Stranded or Solid |
Standards and Certifications
| ANSI: | C-73 |
|---|---|
| Applicable Standards: | UL 498, Fed Spec W-C-596, CSA C22.2. No. 42 |
| Certification/Listing: | cULus, NOM-ANCE |
| RoHS: | RoHS Compliant |
