Brand: Liberty AV
|
SKU:
10453924
Liberty AV 16-2C-TTP-WHT-250 | 250' White Tight Tube Plenum 16 AWG 2-Conductor Speaker Cable Reel
Regular price
$256.37
Unit price
Shipping calculated at checkout.
-
Low prices.
Price match guarantee
-
In-House Experts.
We know our products
-
Easy Returns.
Quick & Hassle Free
-
Superior Selection.
Extensive product catalog
Liberty AV 16-2C-TTP-WHT-250 | 250' White Tight Tube Plenum 16 ...
Regular price
$256.37
Unit price
Description
Description

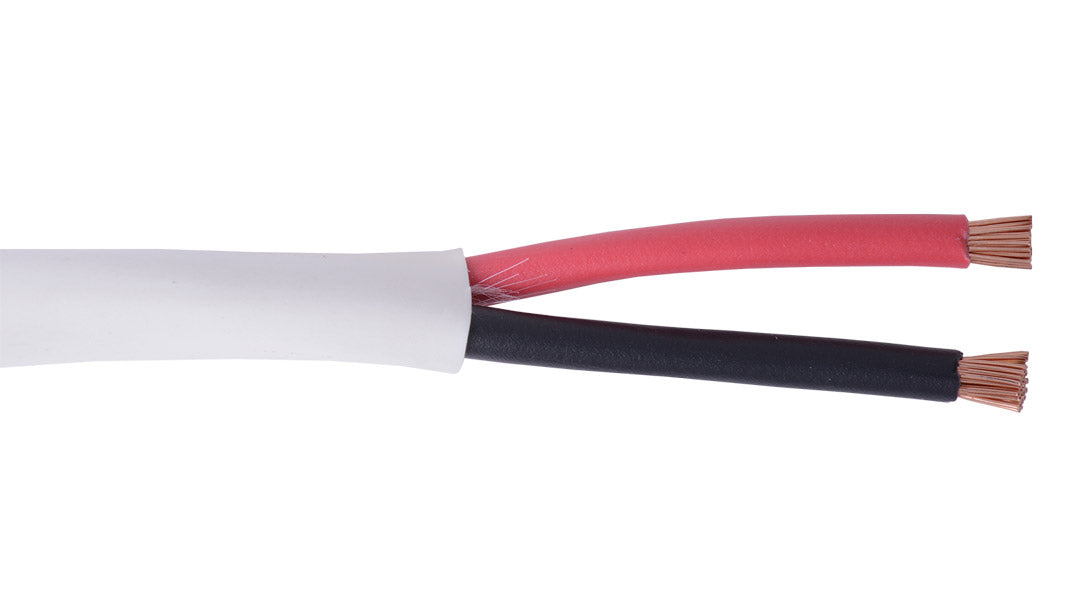

Liberty AV 16-2C-TTP-WHT-250 | 250' White Tight Tube Plenum 16 AWG 2-Conductor Speaker Cable Reel
2 conductor 16 AWG stranded, twisted, and unshielded cable NEC type CMP and CEC type CMP FT6. Product manufactured compliant to the requirements of UL444 for installations and applications in accordance with NEC articles 725 and 800.
Liberty AV - 16-2C-TTP-WHT-250 - Features
- 26-strand annealed bare copper conductors
- Plenum rated PVC insulation
- Twisted, unshielded
- Tight Tube Plenum rated PVC jacket
- NEC CMP, CEC CMP FT6, RoHS compliant
- 1000 foot spools
Specifications
Specifications
Liberty AV - 16-2C-TTP-WHT-250 - Applications
- Speaker level audio, audiophile commercial grade
- High wattage systems and infrastructure
- Class 2 and 3 low voltage power
Liberty AV - 16-2C-TTP-WHT-250 - Specifications
| UNSPSC Code | 26121609 |
|---|---|
| Conductor | 16 AWG |
| Diameter | 0.0589" | 1.50mm |
| DC resistance | 4.04 ? / 1000’ | 13.25 ?/KM |
| Voltage rating | 300V |
| Maximum current | 6.25A@25°C |
| Color Code | Black, Red |
| Weight | 30 Lbs/1000’ | 45 Kg/KM |
| Lay length | 3.0" | 80mm |
| Construct | Ripcord under jacket |
| Performance | Speaker level audio to 50 feet |
| Final Outside Diameter | 0.192 |
