Brand: Liberty AV | SKU: 20-CMP-VID-COAX-WHT

Liberty AV 20-CMP-VID-COAX-WHT | White Serial Digital RG59 Dual Shield 4.5 GHz Plenum Coaxial Cable Reel

$1,122.18

Shipping calculated at checkout.

Low prices.

Price match guarantee
In-House Experts.

We know our products
Easy Returns.

Quick & Hassle Free
Superior Selection.

Extensive product catalog

Description

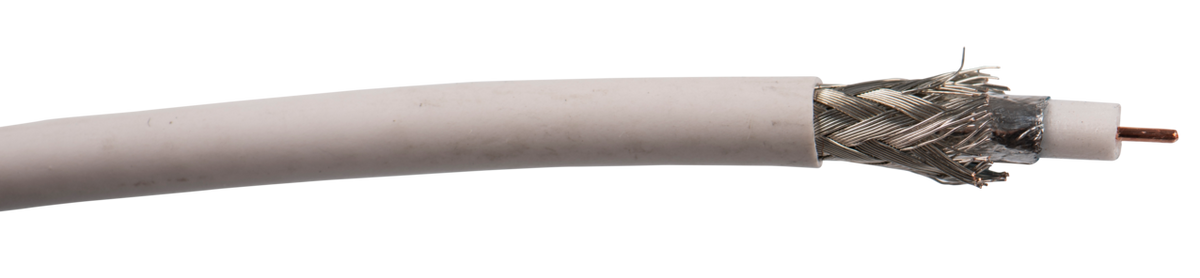

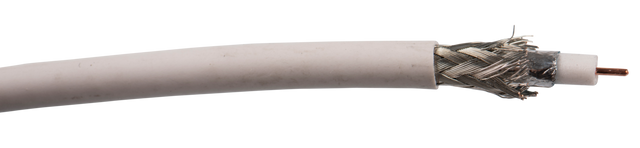

Liberty AV 20-CMP-VID-COAX-WHT | White Serial Digital RG59 Dual Shield 4.5 GHz Plenum Coaxial Cable Reel

Liberty Brand Serial Digital Coaxial Cable Features: 20 AWG solid annealed bare copper conductor Gas-injected cellular fluoropolymer dielectric 100% coverage aluminum/poly/aluminum foil inner shield 95% coverage tinned copper braid shield Plenum

Liberty AV - 20-CMP-VID-COAX-WHT - Features

20 AWG solid annealed bare copper conductor
Gas-injected cellular fluoropolymer dielectric
100% coverage aluminum/poly/aluminum foil inner shield
95% coverage tinned copper braid shield
Plenum rated PVC jacket
4.5 GHz sweep, very low loss, excellent SRL
NEC CMP, CEC CMP FT6, RoHS compliant
1000 foot spools

Specifications

Liberty AV - 20-CMP-VID-COAX-WHT - Applications

SMPTE serial digital video, AES3id digital audio
S/PDIF digital audio, subwoofer audio
All base band video and unbalanced analog audio
RF modulated signals, CATV, DBS, MATV

Liberty AV - 20-CMP-VID-COAX-WHT - Specifications

Coax Construction	COAXIAL
Coax Type	RG 59
Conductor Material	BARE COPPER
Dielectric Material	PVC-POLYVINYL CHLORIDE
Fire Rating	PLENUM
Flooded	NO NOT FLOODED OVER BRAID
Jacket Material	NO JACKET
Outdoor	NO NOT OUTDOOR GRADE MATERIAL
UNSPSC Code	26121606

Documents and Downloads

Liberty AV 20-CMP-VID-COAX-WHT Spec Sheet
