Description

Liberty AV 22-1P-CMP-EZ-BLK | 1000' Black High-Performance EZ-Strip Broadcast Audio 22 AWG 1-Pair Shielded Plenum Cable Reel

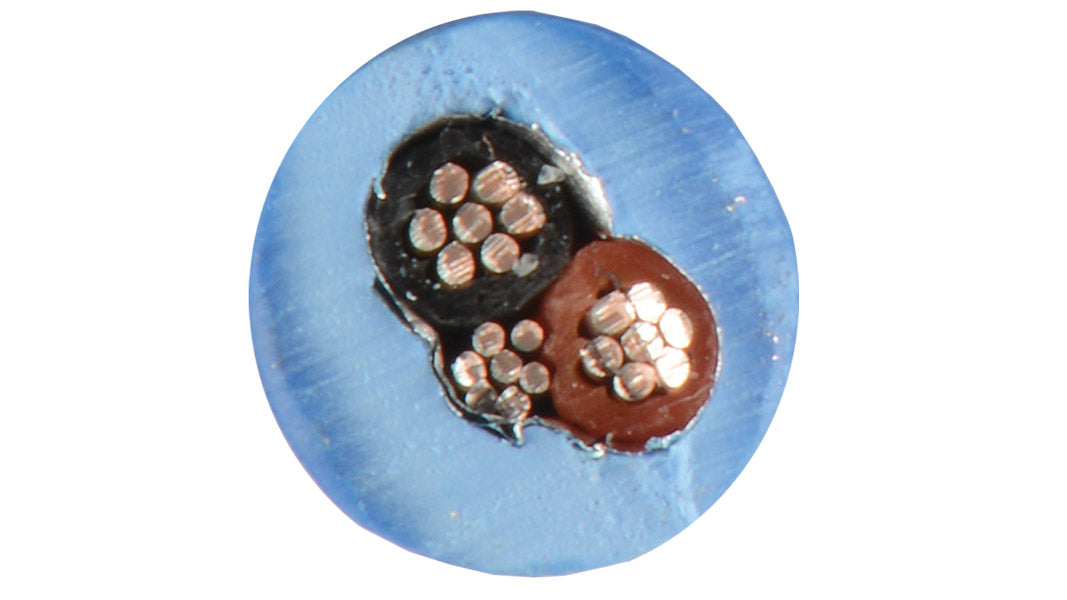

1 pair 22 AWG stranded, twisted, and shielded cable NEC type CMP and CEC type CMP FT6. Product manufactured compliant to the requirements of UL444 for installations and applications in accordance with NEC articles 725 and 800.

Liberty AV - 22-1P-CMP-EZ-BLK - Features

7-strand annealed tinned copper conductors
Cellular fluoropolymer dielectric insulation
Tightly twisted and shielded
Semi-pressure extruded plenum PVC jacket
Low capacitance broadcast audio
NEC CMP, CEC CMP FT6, RoHS compliant
1000 foot spools

Specifications

Liberty AV - 22-1P-CMP-EZ-BLK - Applications

Line level, microphone audio
Balanced and unbalanced audio formats
Infrared (IR), RS-232C signaling
Class 2 and Class 3 low voltage power
Instrumentation and control

Liberty AV - 22-1P-CMP-EZ-BLK - Specifications

Conductor Count	1 Pair
UNSPSC Code	26121613
Conductor	22 AWG
Diameter	0.030" \| 0.76mm
DC resistance	16.88 ? / 1000’ \| 55.36 ?/KM
Voltage rating	300V
Color Code	Black, Red
Weight	14 Lbs/1000’ \| 21 Kg/KM
Pair lay length	2.0" \| 51.0mm
Pull Tension	14 Lbs \| 62 N
Final Outside Diameter	0.131

Documents and Downloads

Liberty AV 22-1P-CMP-EZ-BLK Data Sheet
