Brand: Liberty AV | SKU: 22-1P-CMP-EZ-VIO-BX

Liberty AV 22-1P-CMP-EZ-VIO-BX | Violet High-Performance EZ-Strip Broadcast Audio 22 AWG 1-Pair Shielded Plenum Cable Box

$284.04

Shipping calculated at checkout.

Low prices.

Price match guarantee
In-House Experts.

We know our products
Easy Returns.

Quick & Hassle Free
Superior Selection.

Extensive product catalog

Description

Liberty AV 22-1P-CMP-EZ-VIO-BX | Violet High-Performance EZ-Strip Broadcast Audio 22 AWG 1-Pair Shielded Plenum Cable Box

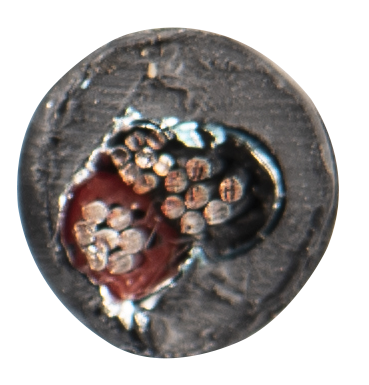

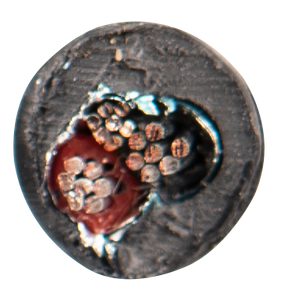

Liberty Brand Broadcast Audio Cable Features: 7-Strand Annealed Tinned Copper Conductors Cellular FEP Dielectric Insulation Tightly Twisted and Shielded Semi-Pressure Extruded Plenum Alloy Jacket Foil Shield bonded to inside of jacket for EZ-Str

Liberty AV - 22-1P-CMP-EZ-VIO-BX - Features

7-strand annealed tinned copper conductors
Cellular fluoropolymer dielectric insulation
Tightly twisted and shielded
Semi-pressure extruded plenum PVC jacket
Low capacitance broadcast audio
NEC CMP, CEC CMP FT6, RoHS compliant
1000 foot spools

Specifications

Liberty AV - 22-1P-CMP-EZ-VIO-BX - Applications

Line level, microphone audio
Balanced and unbalanced audio formats
Infrared (IR), RS-232C signaling
Class 2 and Class 3 low voltage power
Instrumentation and control

Liberty AV - 22-1P-CMP-EZ-VIO-BX - Specifications

Conductor Count	1 PAIR
Conductor Material	BARE COPPER
Conductor Size	22 AWG (AMERICAN WIRE GAUGE)
Conductor Type	STRANDED CONDUCTOR
Fire Rating	PLENUM
Insulation Material	PVC-POLYVINYL CHLORIDE
NEC Rating	NOT LISTED BY UL UNDER NEC
Screen/Shield	YES
UNSPSC Code	26121613

Documents and Downloads

Liberty AV 22-1P-CMP-EZ-VIO-BX Spec Sheet
