Brand: Liberty AV
|
SKU:
10453927
Liberty AV 24-4P-L6ASH-BLK-500 | 500' Black Category 6A F/UTP EN Series 23 AWG 4 Pair Shielded Cable Reel
Regular price
$533.64
Unit price
Shipping calculated at checkout.
-
Low prices.
Price match guarantee
-
In-House Experts.
We know our products
-
Easy Returns.
Quick & Hassle Free
-
Superior Selection.
Extensive product catalog
Liberty AV 24-4P-L6ASH-BLK-500 | 500' Black Category 6A F/UTP E...
Regular price
$533.64
Unit price
Description
Description

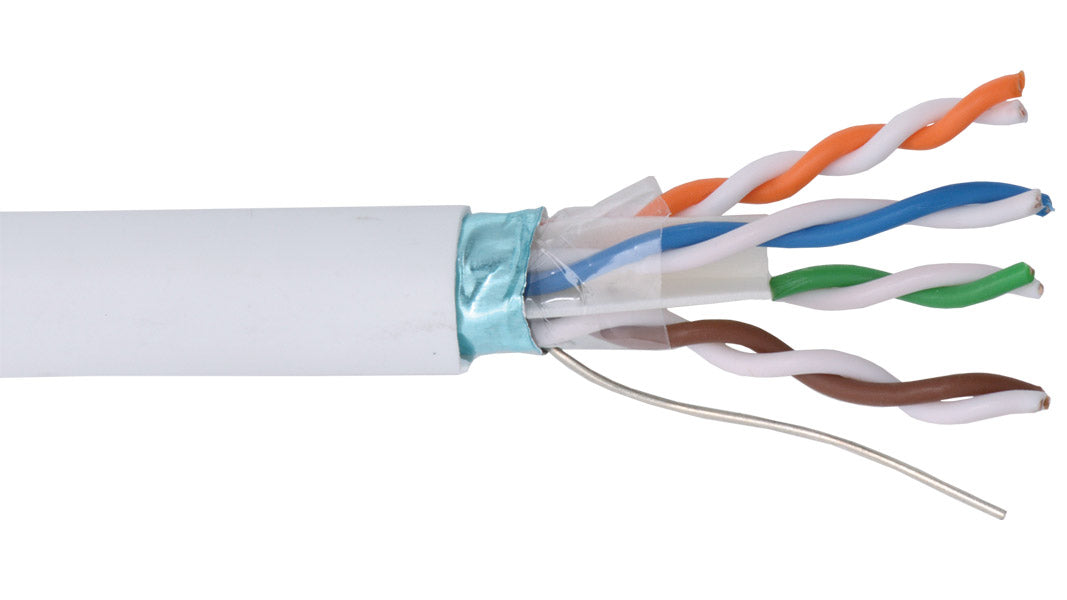

Liberty AV 24-4P-L6ASH-BLK-500 | 500' Black Category 6A F/UTP EN Series 23 AWG 4 Pair Shielded Cable Reel

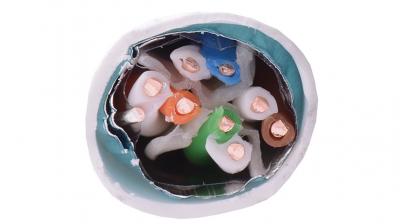

4 pair 23 AWG solid, twisted, and shielded cable NEC type CMR and CEC type CMR FT4. Third party verified to ANSI/TIA-568C Category 6A performance. Product manufactured compliant to the requirements of UL444 for installations and applications in accordance with NEC articles 725 and 800.
Liberty AV - 24-4P-L6ASH-BLK-500 - Features
- Solid annealed bare copper conductors
- High density polyethylene insulation
- 4 pairs twisted in varying lays and cabled
- Overall aluminum/poly foil shield with drain
- Flame rated PVC jacket
- TIA/EIA-568-C Category 6A
- NEC CMR, CEC CMR FT4, RoHS compliant
- 1000 foot spools
Specifications
Specifications
Liberty AV - 24-4P-L6ASH-BLK-500 - Applications
- Horizontal LAN 10/100/1000/10GBaseT ethernet
- Audio, video, infrared, IP control
- Balun infrastructure, voice, voice over IP
- PoE, HDBaseT, analog and digital media
Liberty AV - 24-4P-L6ASH-BLK-500 - Specifications
| UNSPSC Code | 26121609 |
|---|---|
| Conductor | 23 AWG |
| Diameter | 0.0226" | 0.574mm |
| DC resistance | 20.3 ? / 1000’ | 66.6 ?/KM |
| Maximum current | 1.4A@25°C |
| Diameter | 0.042" | 1.06mm |
| Weight | 44 Lbs/1000’ | 66 Kg/KM |
| Final Outside Diameter | 0.296 |
Documents and Downloads
Documents and Downloads
